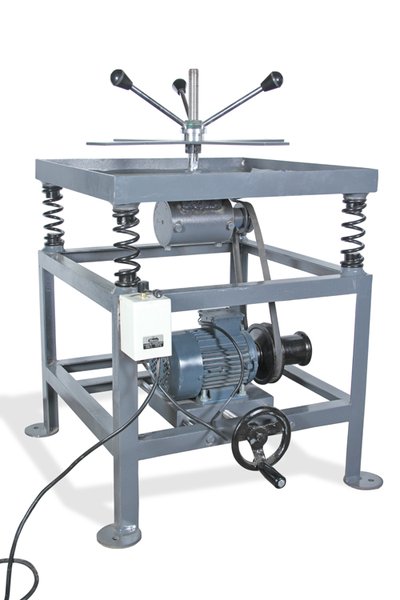

For compaction of concrete cube cylinders. The table deck size has stops along its edges to prevent moulds from walking off the table during operation. A cross arm adjustable on a vertical rod at the center of the table is provided to hold the moulds while operating the table. The variable pitch pulley arrangement permits the frequency to be varied steplessly between maximum of 3600 vibrations down to 2600 vibrations per minute. A speed regulation handle is provided for increasing or decreasing the frequency. The vibrator is mounted on cushioned steel vibrating deck. A switch is provided for starting the motor. Operation on 440 V, three phase, A.C. supply.

The Table can accommodate 4 Cubes of 15cm at a time. (Considering the cube base plate of size 11" X 9")

Weight : 100 kg Approx.
