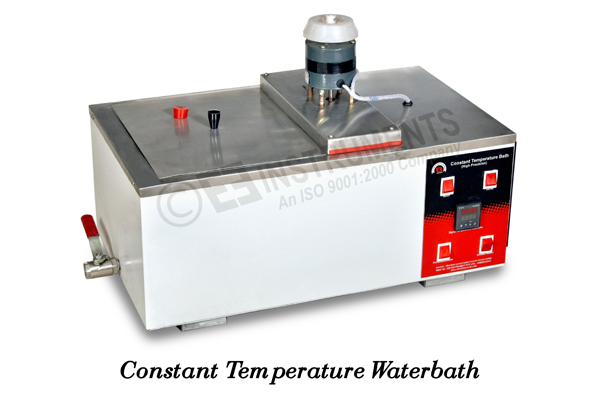

HIGH PRECISION CONSTANT TEMPERATURE WATERBATH

CONSTANT TEMPERATURE WATERBATH (HIGH PRECISION)

Model Number : EIE-406DG34

Outer chamber S.S.304 - matt finish, Inner chamber of S.S.304, fully argon welded, 50mm thick Glass wool Insulation, specially designed immersion Heater, Built -in boost for initial heating, Temp. Range Ambient +5 to 99.9°C, Accuracy ± 0.1°C at 37°C & Uniformity ± 0.2°C at 37°C, Stirring achieved by an efficient, continuously rated, self cooling motor with SS shaft and propeller of anti-corrosive Material, stirrer fitted on side of the bath is allow obstruction free usage of working area. Working on 230 V single phase.

MATERIAL OF CONSTRUCTION
  • INNER S.S.
  • COMPLETE S.S.(GMP)
WATERBATH WORKING SIZE (H X W X D)
  • 25 X 20 X 20 CM
  • 25 X 25 X 25 CM
  • 30 X 15 X 15 CM
  • 30 X 25 X 20 CM
  • 30 X 30 X 17.5 CM
  • 32 X 30 X 15CM
  • 45 X 30 X 17.5 CM
  • 45 X 30 X 25 CM
  • 45 X 35 X 30 CM
  • 50 X 35 X 30 CM
  • 50 X 60 X 35 CM
  • 30 X 25 X 12.5 CM
  • 35 X 30 X 17.5 CM
  • 45 X 35 X 10 CM
Add to Cart
  • More Information
  • Technical specification
  • Accessories
  • Spares
More Information
up-botton

Outer chamber  S.S.304 - matt finish, Inner chamber of S.S.304, fully argon welded, 50mm thick Glass wool Insulation, specially designed immersion Heater, Built -in boost for initial heating, Temp. Range Ambient +5 to 99.9°C, Accuracy ± 0.1°C at 37°C & Uniformity ± 0.2°C at 37°C, Stirring achieved  by an efficient, continuously rated, self cooling motor with SS shaft and propeller  of anti-corrosive Material, stirrer fitted on side of the bath is allow obstruction free usage of working area. Working on 230 V single phase.


Salient Features:

  1. Rectangular shape water bath
  2. Double walled construction
  3. Aesthetically designed
  4. Compact and easy to clean
  5. Outer body is made from Stainless Steel S.S. - 304 - Matt Finished.
  6. Inner chamber is fabricated from S.S. 304 - Mirror polished material
  7. Fully argon welded construction
  8. 50mm thick Glass wool Insulation is provided between the inner chamber and exterior body to prevent the direct thermal loss
  9. Specially designed immersion Heater will be provided for heating within the set point temperature
  10. Built - in boost heater will be provided for initial heating.
  11. Motorized stirrer for uniform distribution of water temperature
  12. Supplied complete with instruction manual


Technical specification
up-botton
DIGITAL CONSTANT TEMP. WATERBATH-45X30X25-GMP

Construction

Double Walled

Chamber Dimensions

45 x 30 x 25 cm (W x D x H)

Chamber volume

33.75 Liters

Exterior body

Fabricated from S.S. - 304 Material

Inner chamber

Fabricated from S.S. - 304 Material

Insulation

50 mm thick glass-wool insulation

Temperature controller

Microprocessor based Digital temperature controller cum indicator

Temperature Display

LED Display

Temperature Accuracy

± 0.5 °C

Temperature Range

Ambient +5 to 99.9°C

Temperature sensor

PT-100 Sensor

Motorized Stirrer

For uniform temperature distribution within the chamber

Lead

Fabricated from S.S. - 304 Material

Operation on

230 volts, 50 hz, single phase, ac supply
