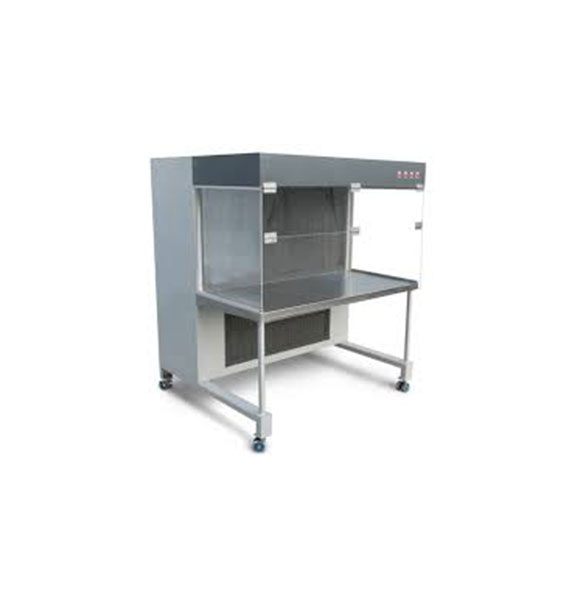

LAMINAR AIR FLOW
Model Number : EIE-2502(VAP)
None
LAMINAR AIR FLOW SIZE
- 3 X 2 X 2 FT.
- 2 X 2 X 2 FT.(MINI PLEAT HEPA FILTER)
- 3 X 2 X 2 FT.(MINI PLEAT HEPA FILTER)
- 4 X 2 X 2 FT.(MINI PLEAT HEPA FILTER)
- 6 X 2 X 2 FT.(MINI PLEAT HEPA FILTER)
- 2 X 2 X 2 FT.
- 4 X 2 X 2 FT.
- 6 X 2 X 2 FT.
LAMINAR AIR FLOW MATERIAL OF CONSTRUCTION
- G.I. WITH PU COATING (TABLE S.S. 304)
- PLY-LAM CONSTRUCTION.
- S.S.304 CONSTRUCTION
- S.S.316 CONSTRUCTION
LAMINAR AIR FLOW TYPE
- HORIZONTAL
- VERTICAL
-
More Information
-
Technical specification
-
Accessories
-
Spares
More Information
- Switches for blower, Florescent light & UV light.
- Pre ‑filter 99.00% down to 5micron.
- HEPA Filter ISO 14644 Class 5 (Class 100) 99.97%‑99.99%
- Down to 0.3 micron. Mesh guard for protection of HEPA filter.
- Airflow Top to downward.
- Noise Level 60 decibel ± 5%.
- Velocity 0.35‑0.50m/sec.
- Work Table Made up of Perforated Stainless Steel 304gr. Cock for gas on work table.
- Front door made of acrylic.
- UV Lamp 15/30W, make Philips Holland.
- Illumination 20/40W, Flourescent tube with diffuser.
- Pressure Manometer‑0‑50mm range.
- Power Supply 230V ± 10V/50Hz single phase A.C.
- Cabinet made of 19mm thick plyboard covered with white sunmica & epoxy painted from inside.
- Heavy Duty Blower Dynamically balanced with 0.25HP
- Electric motor mounted on anti vibration pad 1440 RPM motor.
AT EXTRA COST
Exhaust System for Laminar Air Flow (Vertical) :
Effective exhaust system through mild sheet channel and turbo fans for exhausting air fumes and chemicals etc. Through perforated work bench sheet and conveniently disposed off on back of the cabinet. Rs.9000.00
LAMINAR AIR FLOW TYPE: VERTICAL
LAMINAR AIR FLOW MOC: PLY-LAM CONSTRUCTION.
LAMINAR AIR FLOW SIZE: 2 X 2 X 2 FT.
LAMINAR AIR FLOW LAMINAR AIR FLOW TYPE: VERTICAL
LAMINAR AIR FLOW MOC: PLY-LAM CONSTRUCTION.
LAMINAR AIR FLOW SIZE: 2 X 2 X 2 FT.
