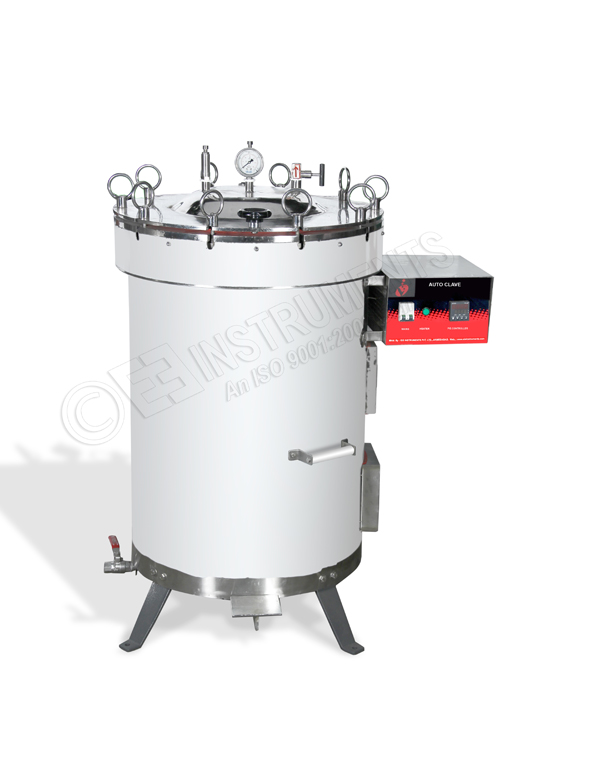

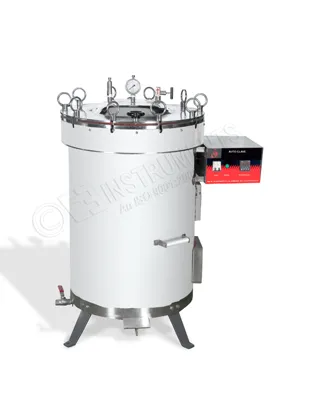

VERTICAL AUTOCLAVES
Model Number : EIE-206FA35
Single Chamber and outer cover of stainless steel-304, specially designed heating elements. low water level cut-off, Fully automatic sterilizing, Displays current temperature and set temperature with time remaining. Microprocessor controller auto air purging and auto steam exhaust at the end of the cycle. The controller provide to just one button to cycle the unit from start to finish with alarm. with S.S. Basket. Futther details mentoned in the long description
WORKING CHAMBER SIZE (D X H)
- 30 X 50 CM
- 35 X 55 CM
- 45 X 60 CM
- 45 X 75 CM
- 55 X 75 CM
- 55 X 90 CM
TYPE OF OPERATION
- SEMI AUTOMATIC
- FULLY AUTOMATIC
MATERIAL OF CONSTRUCTION
- INNER S.S.
- COMPLETE S.S.(GMP)
-
More Information
-
Technical specification
-
Accessories
-
Spares
More Information
Salient Features :
- Double wall design
- Single chamber for steam and water
- Working chamber made of stainless steel LM - 304 grade having 2mm thickness.
- Exterior Body is made of stainless steel LM - 304 Grade having 1mm thickness.
- Lid, flange & bottom sheet also made of stainless steel. All joints argon welded.
- Joint less silicon gasket
- Heavy duty industrial flange heater.
- Fully Automatic operation; cycle is commenced by press of START button.
- Initial air purging cycle; at the beginning air is automatically removed from the chamber.
- Automatic steam exhaust (Depressurized) at the end of cycle.
- Microprocessor based Digital Temperature Indicator cum Controller.
- PID Controller Controls temperature/pressure precisely at set value.
- Lid fitting pressure gauge 0-30 PSI, safety spring loaded pressure valve
- Complete unit is Hydraulically tested at 60 PSI pressure
- Supplied with Calibration certificate with traceability
- Provided with DQ, IQ, OQ, PQ documentation (AT EXTRA COST)
- Validation ports provided for temperature mapping as standard supply. (On customer request)
Solenoid valve :
- Initial automatic air purging cycle
- Automatic steam exhaust (Depressurized) at the end of cycle.
Safety Features :
- Low water level heater safeguard.
- Low water level cut off
- Safety high pressure release valve (Spring loaded mechanical valves)
- Safety high temperature cut off.
Technical specification
Operation Type |
Fully Automatic Operation |
Temperature controller |
Microprocessor based Digital Temperature Indicator cum Controller |
Display |
Digital Display |
Temperature sensor |
PT - 100 |
Pressure Range |
15 to 22 PSI, factory set at 15 PSI |
Temperature Range |
121°C to 125 °C |
Temperature Resolution |
0.1 °C |
Temperature Accuracy |
± 0.5 °C |
Working Chamber Size |
30cm x 50cm (Dia x Height) |
Volume |
35 Liters |
Power |
Rating 1 KW |
Operates on |
230V/15A/50 Hz |
Sterilization timer |
In built digital timer; timer can be adjusted as per sterilization load requirement |
Safety Valves |
01 Solenoid valve, 02 Mechanical Valves set at different PSI & 01 Manual release valve |
Overall Dimensions in Inches (L x W x H) |
23.6 x 35.4 x 42 |
