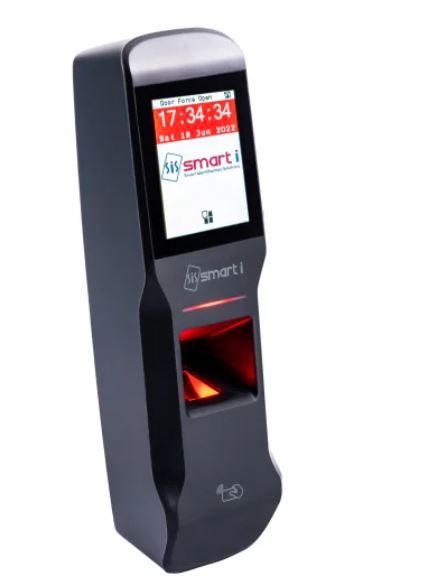

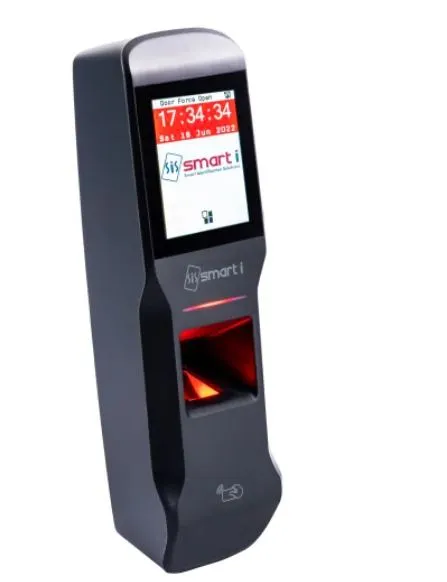

FINGERPRINT & CARD BASED ACCESS CONTROLLER - FOR STABILITY CHAMBER
Model Number : EIE-106R.A20
EIE's fingerprint & card based access control device boasts high aesthetics and ultra modern design. An appealing (2.4”) TFT display with capacitive touchpad. Option of personalizing the display screen by adding company logo in specified display area is also available.
-
More Information
-
Technical specification
-
Accessories
-
Spares
More Information
Main Features
• Premium Biometric System with sleek design & Touchscreen display
• Rugged Fingerprint optical sensor with 19K templates
• Touchscreen display for configuration of device
• Third party HR software compatible device
• Compatible to all types of cards
• IP65 rated robust enclosure
• Wi-Fi, GPRS enabled
• CE certified
Technical specification
Application |
Access & Attendance |
CPU |
32 Bit RISC ARM Processor |
Memory |
Up to 8 MB Flash |
Events/Transactions |
Up to 1,00,000 |
Users |
Up to 50,000 |
Fingerprint Templates |
Up to 19,000 (1:N),(1:1) |
Operation Modes |
Finger + Card + Pin |
Inbuilt Card Reader Options |
Proximity or Smart Card, HID |
Exit Port |
Egress Switch or Reader for Exit |
Exit Reader Supported |
Yes |
Communications Port |
TCP/IP, RS485, GPRS, Wi-fi, POE |
Baud Rates |
9600bps (Default) |
Input/Output Terminals |
3 I/P (Door Status, Egress, Fire) & O/P (DOTL, Egress, Fire) |
Controller ID |
Up to 9999 |
Display |
2.4" TFT Color Display |
Keypad |
Capacitive Touch Sense Keypad |
LED |
Tricolour LED Bar |
Sound |
Beep & Buzzer Sound |
Ingress Protection |
IP65 |
Power Supply |
12 V DC/ 2A (Min) , POE (Optional only for attendance) |
Enclosure |
ABS Material |
Dimension (W X D X H) in mm |
58 x 210 x 49 |
Mounting |
Wall Mounting |
Finger Print Sensor |
Most rugged and accurate optical finger print sensor |
Finger Score |
Display finger quality score at the time of finger registration |
Image Size | Resolution |
500 dpi |
EER/FAR/FRR |
<0.1%, 0.001%, 0.1% |
Verification & Enrollment |
<1 sec |
Template Size |
384 bytes |
Authentication/Identification |
1:1 & 1:N (User Groups for faster verification) |
Facility Code |
Available |
Time Zone / Access Levels |
63 + 1 (Free Time Zone) / Unlimited |
Time Zone Slots |
4 slots per Day |
Anti-Passback |
Hard, Soft, Escort (Reader Wise) |
Holiday Settings |
42 |
