KINEMATIC VISCOSITY BATH (BELOW AMBIENT)-FOR 2 VISCOMETERS-

KINEMATIC VISCOSITY BATH (BELOW AMBIENT)-FOR 2 VISCOMETERS-

Model Number : EIE-PTLT-109BA2

None


Compliance with following International Standards :

ASTM D445, IS 1448 (P 25)


Application :

Used for determination of kinematic and intrinsic viscosity Of fuels, lubricants & petrochemical raw materials at constant temperatures in accordance with ASTM D 445 and other equivalent methods


Annexure:

  1. Microprocessor based circuitry assures precise, reliable temperature control within specified tolerances throughout the operating range of the bath i.e. 10 °C to ambient temperature.
  2. Dual digital displays show set and actual bath temperature
  3. Simple push button controls and digital display permit easy setting and monitoring of bath temperature.
  4. Bath accommodates 02 Nos glass capillary reversion viscometers of various types at a time
  5. Viewing the viscometers is made easy by glare‑free fluorescent illumination.
  6. Temperature control uniformity is assured by means of motorized stirrer, which provides complete circulation without turbulence.
  7. Frost free glass window for low temperature bath
  8. Control panel is mounted on a side of the bath
  9. Complete exterior body is finished with attractive powder coated paint

Technical Specifications of Refrigeration System :

  1. Refrigeration system : Emerson/Danfoss Make refrigeration system
  2. Compressor: Hermetically Sealed Compressor
  3. Condenser : Fin & Tube type Air‑Cooled Condenser
  4. Refrigerant : R134a

Optional Accessories At Extra Cost :

  1. Voltage Stabilizer(Highly recommended)
  2. Temperature calibration certificate as per ISO/IEC : 17025 (NABL)
  3. Display resolution 0.01°C with Eurotherm Make Controller

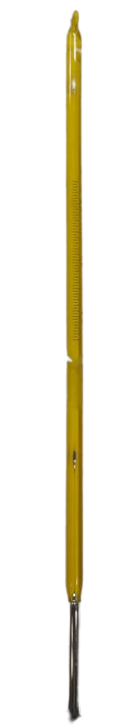

  4. Thermometer glass ‑ IP 30C (‑23.6 / 26.4°C x 0.05°C ) ASTM 45C:
  5. Glass U Tube Viscometer to be purchased at extra cost


Note

Use of RO/DM Water as a bath media is mandatory for long lasting performance of Heaters. Warranty vois in case of non compliance

Volume of the bath

12 Liters capacity

Temperature Control Range

10 °C to Ambient

Temperature controller

Microprocessor based Auto‑Tune PID Digital Temp controller cum indicator

Temperature sensor

PT ‑ 100 Sensor

Temperature Display

LED Display

Display Resolution

0.1 °C (Optional 0.01°C at extra cost)

Temperature Accuracy

± 0.1 °C (@ 25°C)

Heater

Immersion heater

Viewing window

Vacuum glass window for frost free viewing below 5°C range

Stirrer

1400rpm motor with stirrer for uniform Temperature

Stirrer Motor

Of reputed make

Inner chamber material

Stainless Steel S.S. ‑ 304 Grade with tempered glass

Exterior body

Fabricated from mild steel material, which is powder coated in attractive shades

Illumination

PL Lamp

Accessories

Supplied complete with Viscometer holders

Accommodates

02 Nos of viscometers

Electrical Requirements

220 volts, 50 Hz, AC Supply

Power Consumption

1.5 KW
