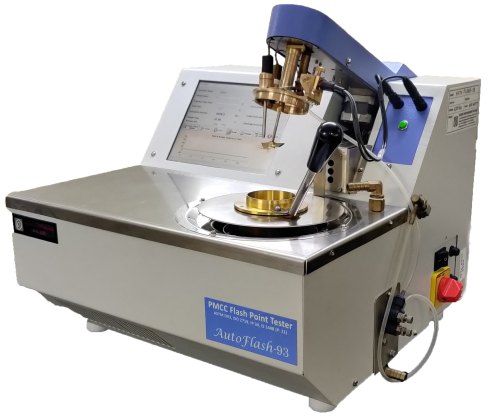

PENSKY MARTEN FLASH POINT APP-(FULLY AUTOMATIC)-(WITH AUTO. FLAME APP, FLAME DETECTION, ELECTRONIC IGNITION & MOTORIZED ARM)-(ASTM D93)

Compliance Standards:

IS 1209, IS 1448: Part 21, IS 1448: Part 66, ASTM D93, ISO 2719, IP 34, JIS K2265-3

Salient Features:

• Standalone model with touch screen display.
• Accurate determination of Flash Point
• Easy operation: Select procedure, enter Expected Flash Point and click on start. Instrument follows the exact procedure and completion of the test cycle is signaled by beeps.
• Rapid heating procedure for high flash point till selected temperature below expected flash point
• Search programs enable a quick determination of fully unknown samples
• Interchangeable gas or electric igniter source
• Automatic barometric pressure correction Interlocks for safe operation

User Interface:

• Windows based user friendly Software
• In-built method and results storage
• Standalone with In Built PC & 8.4” touch screen display
• With LIMS compatibility RS 232, LAN , Wi-Fi, Bluetooth and USB Ports for Printer & other peripherals.

Heating:

• Band type heater, 450 watt @ 230VAC
• Heat rate as per method or defined by the user from 0.5 to 14°C/min
• Accuracy : 0.02 °C
• Resolution : 0.01 °C

Cooling : Centrifugal Blower 56.5 CFM, 35 watt @ 230VAC

Stirring : Stepper Motor controlled Speed as per method or user defined from 20 to 300 rpm

Ignition:

• DC motor controlled movement
• S/W selectable Electric/gas igniter & 0.5 to 5°C dipping interval
• Precise Gas flow and 3 step Electric Igniter brightness adjustment

Arm Movement

• Automatic DC motor controlled swing arm
• Permanently fixed Cup led with stirrer, sample temperature sensor, Flash detector and Igniter for easy operation

Measurements

• Auto-Cal     : Prior to Every run, auto temperature calibration will be performed without the use of any calibration device.
• Sample Temperature   : PT-100 Class A, SS sheath, Range 0 to 400 °C
• Bath Temperature   : PT-100 Class A, Disk Type, Range 0 to 500 °C
• Flash Detection    : Thermal detection by Thermocouple.
• Instrument Measurement range : Ambient to 400 °C
• Amb. Pressure    : Built in pressure sensor, Range 700 to 1100 hpa (500 to 800 mmHg)

Safety interlocks:

• Temperature sensors (bath/sample) is found defective.
• Flash Detector is found defective.
• Electric Igniter is blown off.
• Test Stop at above expected FP as selected or at 400 °C
• Upon Detection of Fire by thermal sensor, warning buzzer will beep and power will cut off
• Test cover is not set in place.

Operating requirements:

• Power Supply : 230 Volts, 50 Hz, 1000 watt
• Housing  : (W410 x D420 x H330) mm
• Weight  : 16 Kg
• Ambient Temp : 10 to 35 °C
• Relative Humidity : 80% at 35 °C
