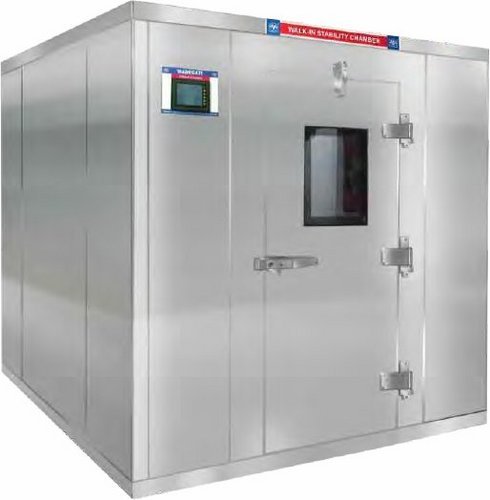

WALK IN STABILITY CHAMBER-(45000 LTR)-(3.90 X 3.90 X 3.00 METER) (W X D X H)-(PLC, HMI & 21-CFR SOFTWARE)

Model Number : EIE-106WGT450

None

More Information
Techincal Specification

Construction Details:

CE Certified
Designed as per ICH guidelines to meet, WHO and USFDA requirement
Fulfills storage conditions of 25° C - 60% RH, 40° C - 75% RH, 30° C - 65% RH, 25° C - 40% RH, 30° C - 35% RH
Chamber equipped with PLC & Touch screen HMI system
Highly accurate Individual control Loop for precise control of temp and humidity
Interior fabricated from mirror polished Stainless Steel (S.S. - 304)
Exterior body is fabricated from Stainless Steel (S.S. - 304)
Toughened glass wondow to inspect samples without affecting the chamber temperature.
Prefabricated Puf Panels with cam-locks to avoid thermal leakage
Electrical wiring as per CE Compliances
Chamber illumination by LED light with door switch.
User friendly and tactfully designed chamber door and locking mechanism
Facility to open chamber door from inside, in case of emergency
Aesthetic outer appearance and high quality
Supplied complete with IQ/OQ/PQ Documents, Calibration certificates and Instruction manual.

Following advance features are available:

Equipped with 7" Touch screen HMI Controller and PLC System
Equipped with GSM MODULE (Mobiler alert configuration) system for parameter deviation
Equipped with Magnetic Door Lock Mechanism
Password protected door access system
Supplied complete with 21-CFR (PART-11) Compliance PC Software
Audit trail generation in PC Software
Equipped with In-Built Data logger (Uniformity module) system
Also equipped with 4 Temp + 4 RH Sensor for data logging purpose
Monitor Low water level status
Facilitates automatic water filling system
Auto resume after power failure
Ready to use STANDBY REFRIGERATION SYSTEM in case main system fails
Ready to use STANDBY HUMIDITY SYSTEM in case main system fails
Auto Switch-Over facility from Mains to Standby system and vice versa
Calendar options for choosing the days on which Either Mains or Standby system will remain active

Salient Features of 21-CFR Compliance Software:

Multi Chamber data - Acquisition Software
Generates graphical analysis of DATA as per - 21 CFR Compliance guidelines
File encryption Facility
Secure login facility
Password protected. System access is controlled by the system supervisor
Limit system access
Limit module access
Password expiration
Bilateral user ID and password identification
Access failure lock out
System access logs
System audit trail report.
System Input / Output logs
Mean kinetic temperature calculation
Maintains log of user activities like users logged in, login/logout time, and changes made by the user in software settings Audit Trail Reports.
Ensure Gap-free Records
Schedule Reports via Email
Meet Tough Standards
View Environments in Real-Time
Flexible Alarm Management
Consistent Alarm Acknowledgements
Highly Secure & Temper proof
Protection From Data Loss

Air Circulation:

Temperature is maintained by a quiet running blower circulation throughout the chamber. Forced air circulated vertically down and re-circulated throughout the chamber for uniform temperature and humidity distribution.

Humidity Generation:

Humidity created by steam injection method. The boiler tank is fitted in the back side of the chamber for better servicing. Electromagnetic switch is provided for controlling the wet heater from burning off, if water level is not adequate. Float valve is provided to automatically control & maintain water level in the boiler tank.

Heating & Cooling System:

Long lasting SS tubular heaters used as heating element. The stainless steel fins provided to ensure better heat transfer. Hermetically sealed compressor CFC free compressor (134 A gas) coupled with evaporation coil and condenser. All refrigeration components like expansion valve, driers, oil separators, pressure gauges and vibration eliminators provided. Reputed company make refrigeration system such as Emerson/Kirloskar Make

Door & Gasket:

Robust type hinges fitted on the right hand side of the chamber with front opening single door. Leak proof double lined silicon gasket will be provided. The inner surface of the door will be provided with pre-polished stainless steel and will be mounted such that conduction is avoided.

Trays for samples:

Removable Stainless steel rod trays
Strong enough to withstand heavy load of test specimens
Such trays will also facilitate better air circulation.
The distance between trays will be 15-20 centimeters.
Number of tray supplied : 84 Numbers

Electrical controls:

Relays, Contactors, SSR, MCB, Mains Switch, Fan control switch, compressor ON/OFF switch with indicator, Dry heater switch with indicator for safe and ease of operation.

Electrical Circuitry Wires:

CE Certified : Inner circuitry wires with individual number tags for ease of servicing and maintenance

Safety Provisions:

Over temperature thermostat & thermal fuses provided for Heating system.
Low water level boiler cut off
Electrical overload cut off
Time delay for compressor switch ON
Electrical circuit breaker

Viewing window:

Multi pane window, toughened clear glasses sealed with silicone and separated by spacers to form a completely vacuumed window.

Wiper:

Viewing window facilitates with wiper to clear the condensed water droplets on the glass.

Chamber Size	3.90 x 3.90 x 3.00 (W x D x H) Meter
Chamber volume	45000 liters
Inner chamber	Stainless steel S.S. - 316 Mirror Polished with cam lock
Exterior body	Stainless steel S.S. - 304 Matt finished
Insulation	Puff insulation
Insulation thickness	75mm
No. of trays	84 Numbers
Controlling System	Highly advanced Touch screen HMI & PLC Control system
Display	Digital LCD Display (7" Screen Size)
Temperature Range	10° C to 70° C
Temperature Accuracy	± 0.5° C
Temperature sensor	Pt - 100 sensor
No. of Temperature Sensors	05 Nos (01 Main + 04 For data logging purpose)
Humidity Range	40% RH to 90% RH
Humidity Accuracy	± 3% RH
Rh sensor	Capacitance type RH Sensor
No. of Rh Sensors	05 Nos (01 Main + 04 For data logging purpose)
Validation port hole	150 mm diameter, port hole provided with removable sealed cap.
Observation window	To inspect test samples without disturbing chamber operation
Illumination	LED Light
Time & Date	User adjustable Date & Time settings
PC Software	21-CFR (Part-11) compliance software as per USFDA Guidelines
Communication	RS - 232/RS - 485 communication port
Magnetic door lock	Password protected entry levels for Operator, Supervisor etc
IQ, OQ, PQ	IQ, OQ, DQ, Documents as per USFDA Guidelines, Validation Report and Instruction Manual.
Blower	For uniform temp & humidity distribution
Power Consumption	3000 Watts (3 KW)
Power Supply	230 Volts, 50 HZ, Single Phase, AC Supply
