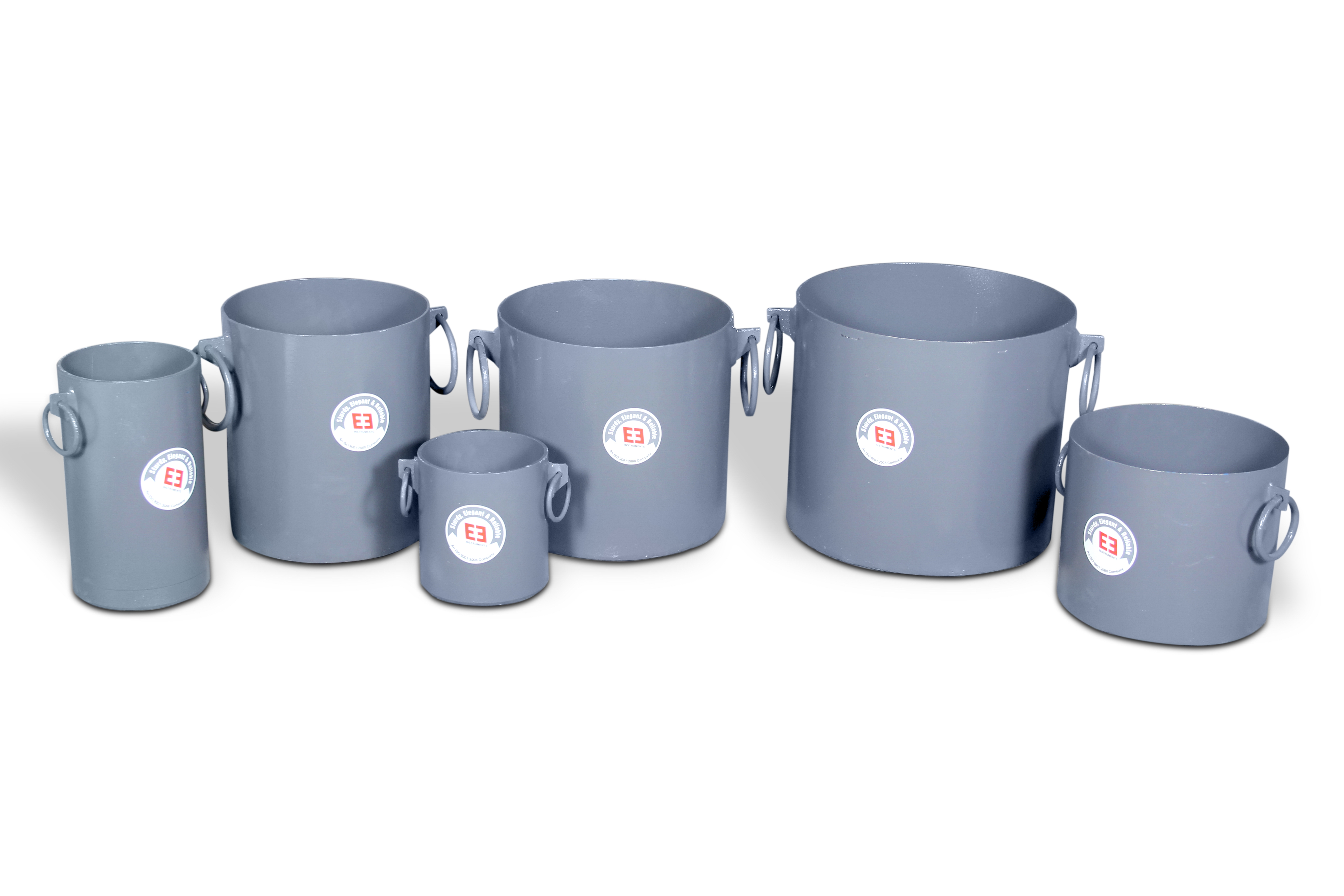

BULK DENSITY CYLINDERICAL METAL MEASURE-5 LTR.

BULK DENSITY CYLINDERICAL METAL MEASURE-5 LTR.

Model No: TM-019-5L

AS Per IS : 1199, IS : 10079, BS : 1881, ASTM C29

Compliance with following International Standards:

IS : 1199, IS : 10079, BS : 1881, ASTM C29, ASTM C138


Applications:

For measurement of "Unit weights" and voids in aggregate.


Apparatus Details:

  1. Made from thick gauge Mild steel
  2. Stout and rigid to retain form
  3. Water tight from top and bottom
  4. Smooth Interior wall
  5. Precision machined for true measurements
  6. Complete with handles for easy carriage
  7. Supplied without with tamping rod of 16mm diameter x 600 mm long.(at extra cost)
  8. Electronic weighing balance required for the test can be supplied at an extra cost
Overall Dimensions 210 X 210 X 290(L X W X D) mm
Weight (Approx.) 6.500 Kg
