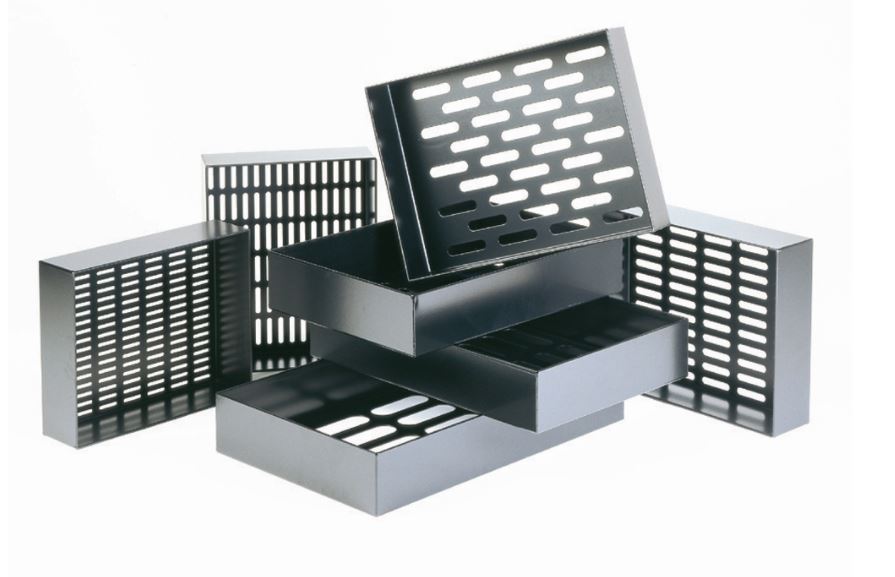

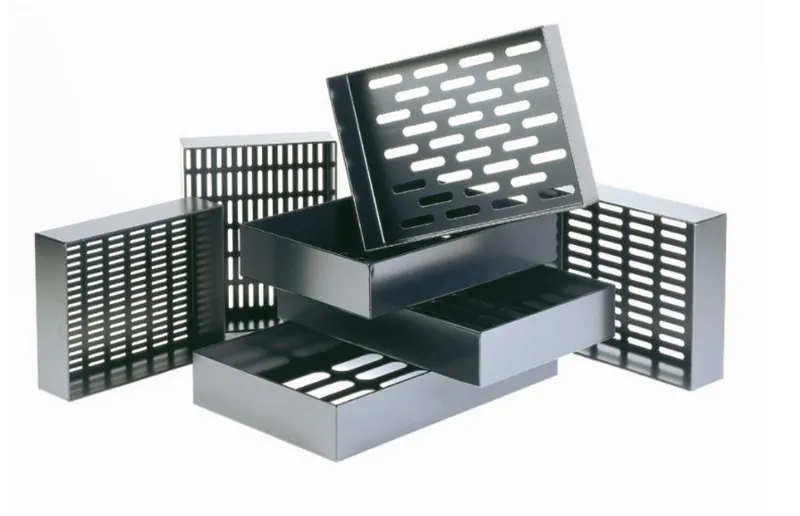

FLAKINESS INDEX SIEVE - BS 812-105.1
None
SLOT SIZE
- 26.3 X 90 MM
- 19.7 X 80 MM
- 4.9 X 30 MM
- 14.4 X 60 MM
- 7.2 X 40 MM
- 10.2 X 50 MM
-
More Information
-
Technical specification
-
Accessories
-
Spares
More Information
Compliance with following International Standards
BS-812
BS-812
Applications
This sieve is used to determine whether the aggregate particle is flaky or not, that means it is to determine whether the thickness of the particle is less than 60% of its nominal size or not.
This sieve is used to determine whether the aggregate particle is flaky or not, that means it is to determine whether the thickness of the particle is less than 60% of its nominal size or not.
Salient Features
- Heavy duty steel
- Perforated holes/S.S. Bar
- Anti-corrosion
- Long service life
- Grid sieve (Bar Sieve)
Technical specification
FLAKINESS INDEX SIEVE - BS 812-105.1 - 4.9 X 30 MM SLOT SIZE
|
Material |
Galvenized steel |
|
Finish |
Zinc coated or powder coated |
|
Weight |
2 kg Approx |
|
Passing/Retained |
10/6.3 mm |
|
Slot width |
4.9 mm ± 0.1 mm |
|
Slot length |
30 mm |
|
Dimensions |
300x220x80 mm |
