KIT FOR ESTIMATION OF ORGANIC IMPURITIES - IS 2386 (PART II), ASTM C40, AASHTO T21
As per IS 2386 (Part II) 1963, ISO 18128, AASHTO T21, ASTM C40. Color Disc and Color comparator are available at extra cost.
-
More Information
-
Technical specification
-
Accessories
-
Spares
More Information
Compliance Standards
IS 2386 (Part II) 1963, ISO 18128, AASHTO T21, ASTM C40
Applications
This method of test covers in approximate method of estimating whether organic compounds are present in natural sand in sufficient quantities to be harmful, and hence is intended to show whether further tests are necessary or desirable.
Details

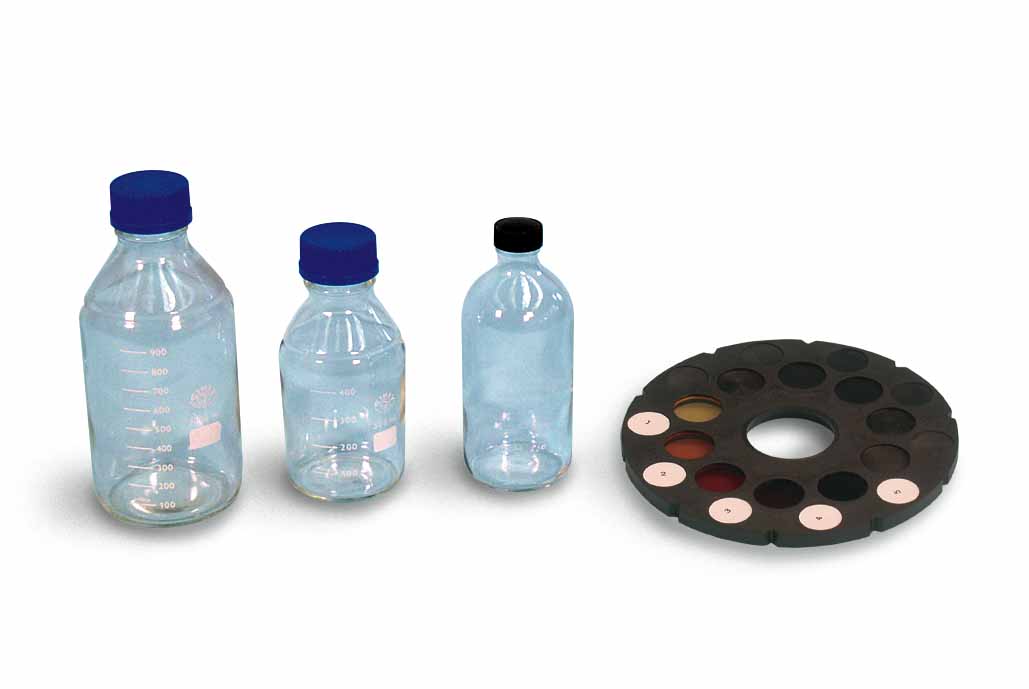

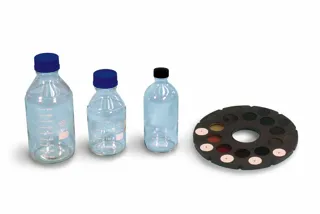

The kit consist of glass bottle (6 Nos.) of 350 ml capacity, colorless glass graduated bottles equipped with watertight stoppers, not soluble in specified reagents. Gradation marks at
- Reference color solution level : 75 ml
- Sand/Fine aggregate level : 125 ml
- Sodium hydroxide solution level : 200 ml
The kit contains chemicals as per following
- Sodium hydroxide - AR grade (2.50 grams),
- Tannic acid powder - AR grade (100 grams)
- MOLYSOL`E`AR - 500 GM
- Alcohol 100 ml,
- Distilled water - 1000 ml

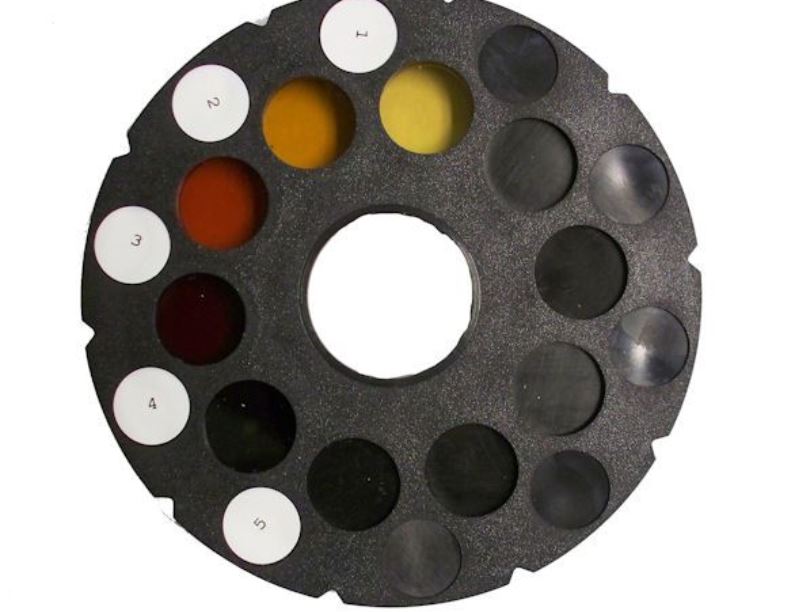

Color Disc and Color comparator are available at extra cost.
Technical specification
Accessories
CTM SOFTWARE WITH PC INTERFACE
Direct analytical reports on computer, Auto generation of load/time graph. Auto calculation of average of 3 readings, Two way communication facility - Can operate the machine through PC, Name of Issuing Lab and customer name can be inserted, Auto date and time of testing with age of testing (from the date of sample receipt), Transfer of result to PC on pressing ENT key. Results can be printed in EXCEL format. Data and design subject to change due to continuous R&D
SPLITTING TENSILE ATTACHMENT FOR CONCRETE CUBE AND PAVER BLOCK - BIS 516, BIS 15658, ASTM C496
This is an attachment to Compression Testing Machine. Compliance Standards, IS: 516 – 1959, IS:5816, IS: 1199-1959, SP: 23-1982, IS: 10086-1982, ASTM C496, BS1881, BIS 15658. Detailed specification mentioned in the long description.
LOAD FRAME FOR 500 KN - CTM AUTOMATIC-
This is an attachment to Automatic Compression Testing Machine of 1000 / 2000 / 3000 kN Capacity. The Pumping unit is shared by both the Load Frames. A valve is provided on the back of the Pumping unit to switch Flow of Hydraulic Oil either to 500 KN CTM Load Frame or to higher Capacity Load Frame. The attachment enable us test of Cement Cubes in addition to Concrete cubes without compromising the accuracy.
ELECTRONIC WEIGHING BALANCE-20 KG-1 GM-WITH INTERFACE TO CONNECT CTM
High Impact FRP Body, wide platform size 250 x 300 mm, with built in battery back up and with certificate of stamping from W&M department. Multi function and Auto calibration with external weight. We can also offer economic weighing balance having ABS body and small platform size of 200 x 250 mm.
