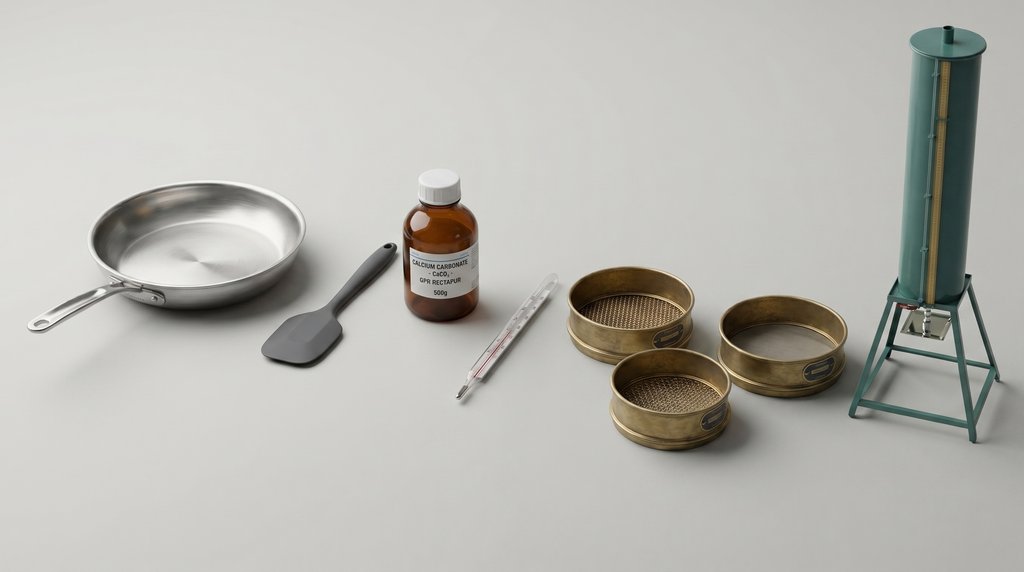

APPARATUS FOR COATING ABILITY AND WATER RESISTANCE - IS 8887:2018 (ANNEX F)

Model Number : EIE-BE-107

The test determines the coating ability and water resistance of bitumen emulsions. It assesses the emulsion's capacity to coat aggregate surfaces uniformly and retain the coating after immersion in water, which is crucial for performance in road construction and maintenance. As per IS 8887:2018 (Annex F), AASHTO T59, EN 13808, ASTM D244.

More Information
Accessories

Compliance Standards

IS 8887:2018 (Annex F)

Details

Mixing pan :‑ A whole enameled kitchen pan with handle of approximately 3 liter capacity
Mixing Blade :‑ A putty knife with a 30 mm X 90 mm steel blade with rounded corners.
Sieve :‑ standard of 19mm and 4.75 mm .
Constant Head water spraying apparatus an apparatus for applying tap water in a spray under a constant head of 775 mm
Thermometer ‑ Range : ‑ 2°C to 80°C
Pipette 10 ml capacity
Calcium carbonate ‑ 500 gm

Note : NABL Calibration for test sieves, Pipette and Glass Thermometer can be provided.
