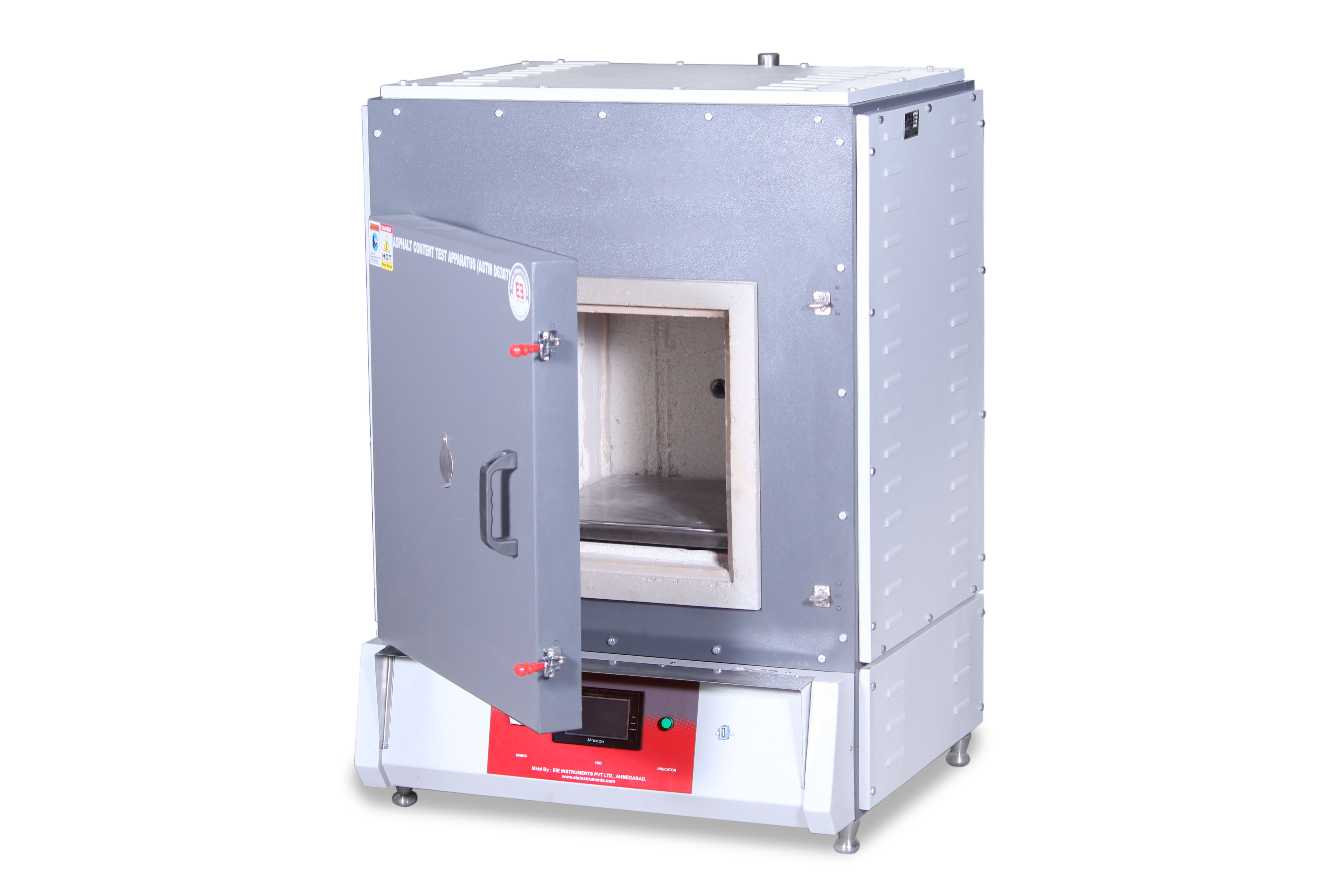

ASPHALT CONTENT OVEN-(ASPHALT IGNITION OVEN)-(ASTM D6307)

ASPHALT CONTENT OVEN-(ASPHALT IGNITION OVEN)-(ASTM D6307)

Model Number : EIE-109

Compliance Standards : ASTM D6307-98 and AASHTO T30. The Asphalt Content/Binder Furnace with internal automatic balance is an environmentally-friendly and cost-effective method for the accurate determination of asphalt content. Ignition method reduces testing time compared to solvent testing methods and automatic operation frees technicians for other tasks. Accurate internal balance monitors weights automatically throughout ignition. Easy operation- simply enter sample weight, calibration factor, load the sample, and push start, when unit beeps at test end, push stop, and sign receipt. Model approved and certified by IIT Gandhinagar


Compliance Standards:

ASTM D6307-98 and AASHTO T30


Brief Details:

The Asphalt Content/Binder Furnace with internal automatic balance is an environmentally-friendly and cost-effective method for the accurate determination of asphalt content. Ignition method reduces testing time compared to solvent testing methods and automatic operation frees technicians for other tasks. Accurate internal balance monitors weights automatically throughout ignition. Easy operation- simply enter sample weight, calibration factor, load the sample, and push start, when unit beeps at test end, push stop, and sign receipt.


Exterior body

Fabricated from Mild Steel Material

Exterior Body Paint

Powder coating in attractive shades

Inner chamber

Constructed from stainless steel with matt buffing

Insulation

High Temperature cera wool insulation

Insulation thickness

75 mm (3 Inches)

Chamber Dimensions

350 x 350 x 350 mm

Chamber volume

42 Liters

Max weight of specimen

4500 gms

Commendatory weight of specimen

1000-1500 gms

Capacity of balance

10 kg

Precision of balance

0.1 gms

Max working temp of chamber

600 °C

Standard working temp

538 °C with temperature compensating technique

Temperature sensor

K-Type thermocouple

Temperature Control

7" Touch screen HMI & PLC Controller

Testing Time

30-45 minutes

Ramp & Profile Programming

In built- ramp & profile programming in LCD Touch Screen

Display

LCD Colour display

Results on

In-Built Dot-Matrix Printer

Power Supply

AC 440V ± 10%, 50 Hz

Accessories

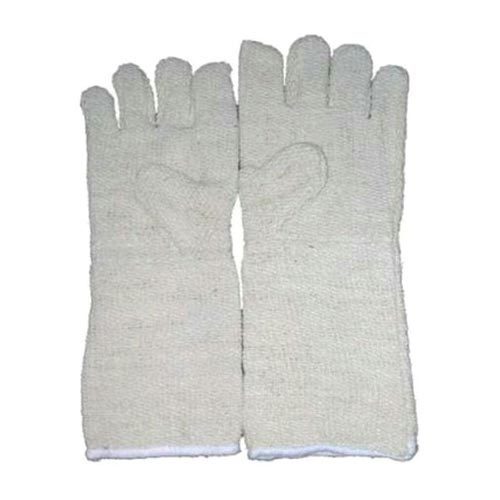

Supplied complete with Sample Bucket, Lifting Handle and Asbestos gloves

Overall Dimensions

800 X 800 X 1600 (L X W X D) mm

Weight (Approx.)

290 Kgs Approx.
