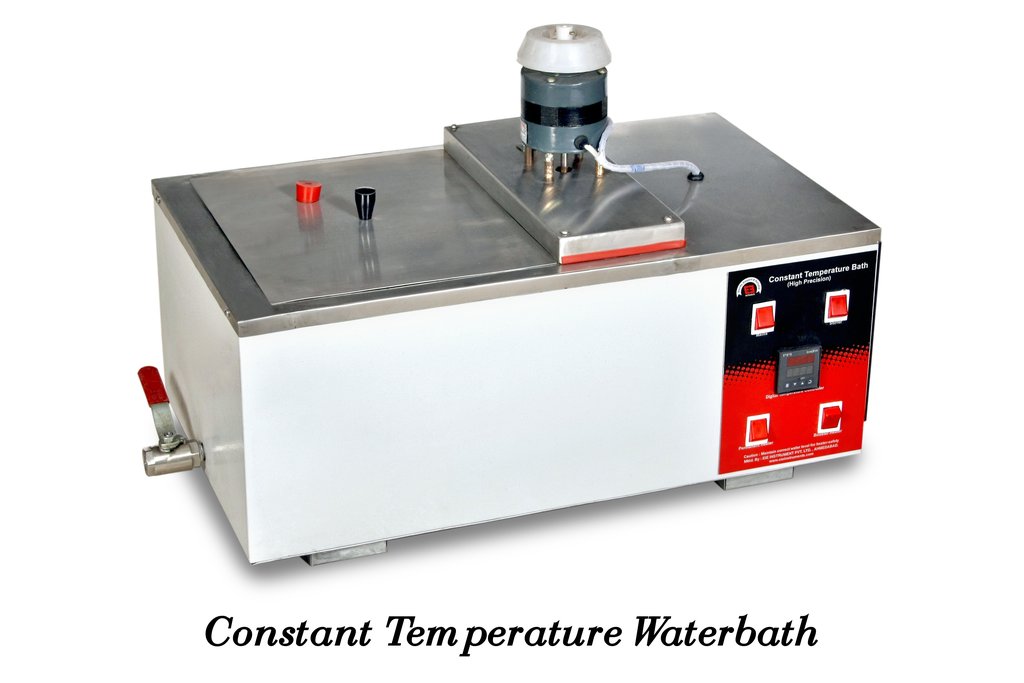

CONSTANT TEMPERATURE WATERBATH FOR MARSHAL TEST WITH DIGITAL CONTROLLER -3 MOULDS-100 MM-

CONSTANT TEMPERATURE WATERBATH FOR MARSHAL TEST WITH DIGITAL CONTROLLER -3 MOULDS-100 MM-

Model No: EIE-406-M3100

Double walled water bath. Inner chamber is made of mirror polished stainless steel material S.S. ‑ 304 Grade, Exterior body is fabricated from Mild steel material, which is powder coated in attractive shades. Temperate ranges from : 5 °C above ambient to 100 °C, Temperature accuracy will be of ± 0.5 °C. Detailed specification as follows:

AS PER ASTM D1559,ASTM D5581, AASHTO T245, EN 12697-12, EN 12697-34


Double walled water bath. Inner chamber is made of mirror polished stainless steel material S.S. ‑ 304 Grade, Exterior body is fabricated from Mild steel material, which is powder coated in attractive shades. Temperate ranges from : 5 °C above ambient to 100 °C, Temperature accuracy will be of ± 0.5 °C. Detailed specification as follows:


Salient Features:

  1. Double walled water bath
  2. Inner chamber is made of mirror polished stainless steel material S.S. ‑ 304 Grade, Fully Argon welded
  3. Exterior body is fabricated from Mild steel material, which is powder coated in attractive shades.
  4. The gap between the inner chamber and exterior body is filled with glass wool insulation to prevent the thermal heat loss
  5. Temperature inside the bath is controlled by Microprocessor based Auto‑tune Digital temperature controller cum indicator.
  6. Temperate ranges from : 5 °C above ambient to 100 °C,
  7. Temperature accuracy will be of ± 0.5 °C
  8. The bath is also fitted with a constant speed stainless steel stirrer to maintain uniform temperature distribution within the bath chamber.
  9. The bath is so designed that it can accommodates at least 3 Nos. of 4" diameter marshal moulds and breaking head assembly on heavy platform.


Overall Dimensions 760 X 380 X 470 (L X W X D) mm
Weight (Approx.) 24 kg
