CT

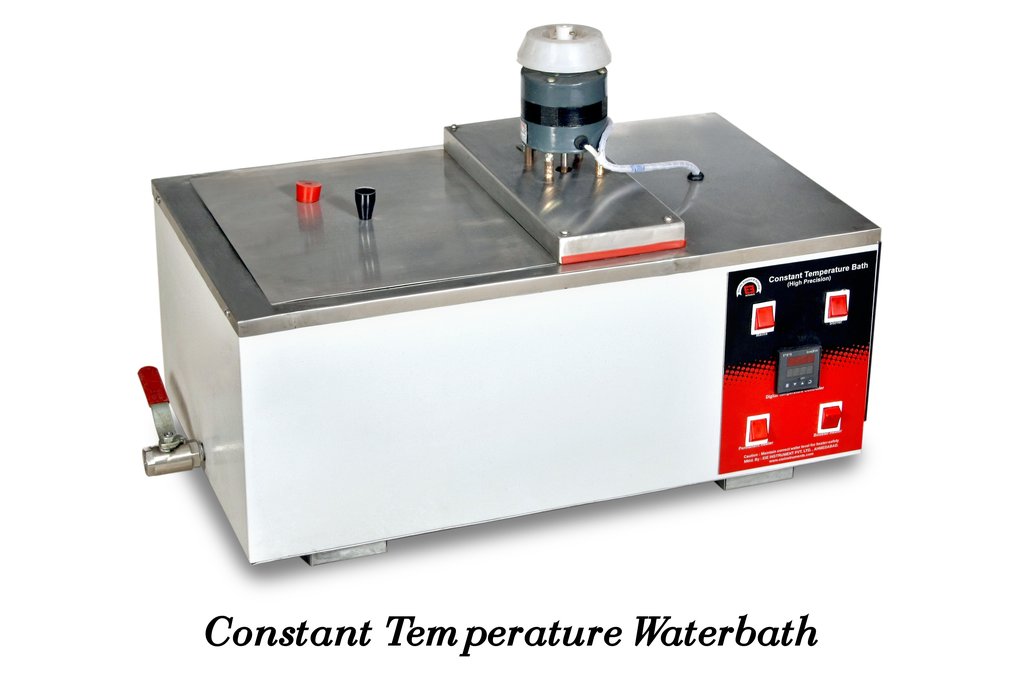

CONSTANT TEMPERATURE WATERBATH FOR MARSHAL TEST WITH DIGITAL CONTROLLER -6 MOULDS-100 MM-

Model No: EIE-406-M6100

Double walled water bath. Inner chamber is made of mirror polished stainless steel material S.S. ‑ 304 Grade, Exterior body is fabricated from Mild steel material, which is powder coated in attractive shades. Temperate ranges from : 5 °C above ambient to 100 °C,Temperature accuracy will be of ± 0.5 °C. Detailed specification as follows:

Double walled water bath. Inner chamber is  made of mirror polished stainless steel material S.S. ‑ 304 Grade, Exterior body is fabricated from Mild steel material, which is powder coated in attractive shades. Temperate  ranges  from  :  5 °C above ambient to 100 °C,Temperature accuracy will be of ± 0.5 °C. Detailed specification as follows:


Salient Features:

  1. Double walled water bath
  2. Inner chamber is made of mirror polished stainless steel material S.S. ‑ 304 Grade, Fully Argon welded
  3. Exterior body is fabricated from Mild steel material, which is powder coated in attractive shades.
  4. The gap between the inner chamber and exterior body is filled with glass wool insulation to prevent the thermal heat loss
  5. Temperature inside the bath is controlled by Microprocessor based Auto‑tune Digital temperature controller cum indicator.
  6. Temperate ranges from : 5 °C above ambient to 100 °C,
  7. Temperature accuracy will be of ± 0.5 °C
  8. The bath is also fitted with a constant speed stainless steel stirrer to maintain uniform temperature distribution within the bath chamber.
  9. The bath is so designed that it can accommodates at least 6 Nos. of 4" diameter marshal moulds and breaking head assembly on heavy platform.


Type Double walled water bath
Inner chamber Made of mirror polished stainless steel material S.S. -304 Grade
Exterior body Fabricated from Mild steel material, which is powder coated in attractive shades.
Insulation 75 mm glass wool insulation to prevent the thermal heat loss
Temperature controller Microprocessor based Auto tune Digital temperature controller cum indicator.
Temperature Accuracy ± 0.5 °C
Temperature Display LED Display
Motorized Stirrer To maintain uniform temperature distribution within the bath chamber.
Stirrer material Fabricated from S.S.-304 material to prevent rusting
Heater Types Booster Heater & Permanent Heater
Drainage Fitted with drain valve to release the chamber water after completion of test.
Power Consumption 2.0 Kw
Working size 11" x 16" x 16" ( L x B x H)
Volume 17 Liters approximately
Operates on 230 Volts, 50 Hz, Single Phase, AC Supply
Overall Dimensions 900 X 380 X 470 (L X W X D) mm
Weight (Approx.) 29 kg
