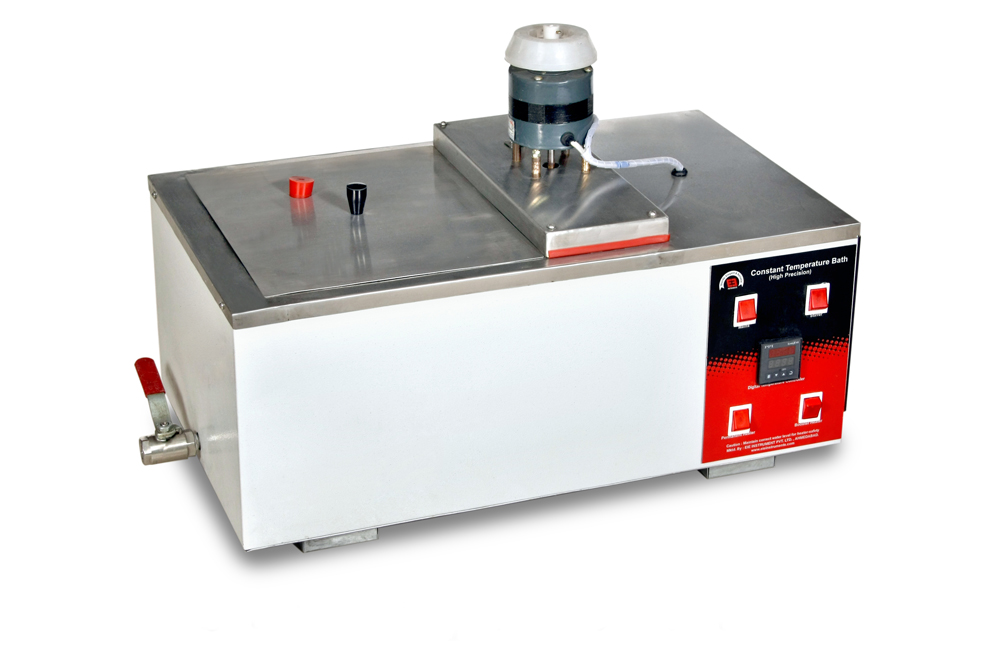

CONSTANT TEMPERATURE WATERBATH FOR MARSHAL TEST WITH DIGITAL CONTROLLER -(9 MOULDS)-(150 MM)

CONSTANT TEMPERATURE WATERBATH FOR MARSHAL TEST WITH DIGITAL CONTROLLER -(9 MOULDS)-(150 MM)

Model No: EIE-406-M9150

Double walled water bath. Inner chamber is made of mirror polished stainless steel material S.S. ‑ 304 Grade, Exterior body is fabricated from Mild steel material, which is powder coated in attractive shades. Temperate ranges from : 5 °C above ambient to 100 °C, Temperature accuracy will be of ± 0.5 °C. Detailed specification as follows:

Double walled water bath. Inner chamber is  made of mirror polished stainless steel material S.S. ‑ 304 Grade, Exterior body is fabricated from Mild steel material, which is powder coated in attractive shades. Temperate  ranges  from  :  5 °C above ambient to 100 °C, Temperature accuracy will be of ± 0.5 °C. Detailed specification as follows:


Technical Specifications:

  1. Specially designed for Marshal Stability test.
  2. Double walled construction
  3. Inner chamber made of Stainless Steel - S.S. - 304 grade material, Fully Argon welded
  4. Exterior body is fabricated from Mild Steel Material, Which is powder coated in attractive shades
  5. Glass wool insulation to prevent thermal leakage between inner chamber & outer body
  6. Heavy platform to accommodate 9 Marshal Moulds of 150mm dia
  7. Supplied complete with handle to lift or place the moulds easily before or after completion of test
  8. Drain valve provided.
Temperature controller Digital Auto-Tune PID Controller
Temperature Range 5 ⁰C above ambient to 100⁰C
Temperature Display LED Digital display
Temperature sensor PT-100 Sensor
Temperature Accuracy 0.5⁰C
Stirrer For uniform temperature distribution
Working size 22" X 22" X 16" (W x D x H)
Can accommodate 09 Marshal moulds of 150mm diameter
