Complies with International Standards:
ASTM D88

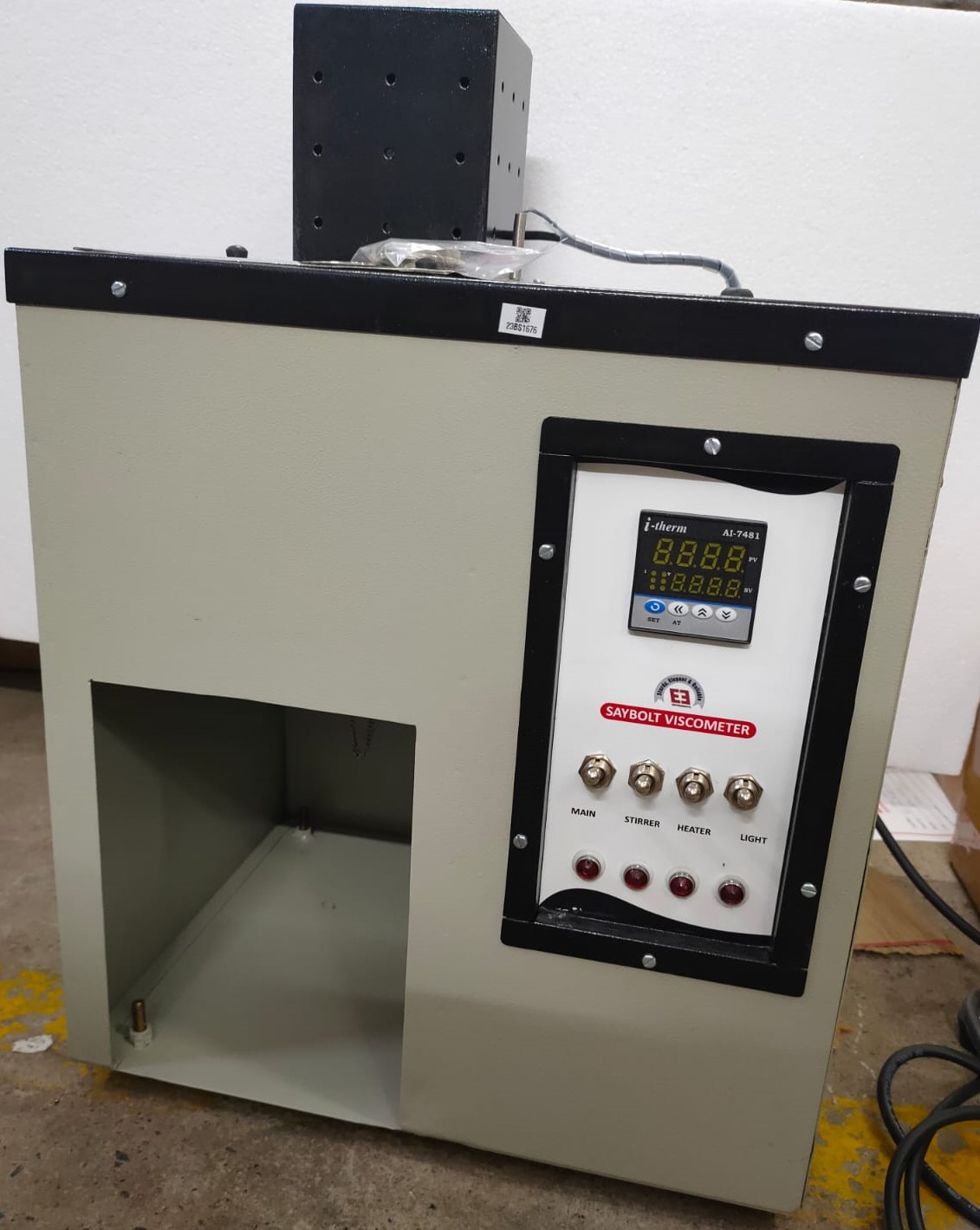

Construction Details:
- The apparatus consists of stainless steel bath with oil cup which is centrally placed in a water bath.
- The bath has a lid, which contains a water cooling tube, thermometer socket and a straight heater.
- Temperature is controlled by PID Digital Temperature indicator cum controller.
- Stirring is done by FHP motorized stirrer.
- A thermometer can also be inserted into the cup cover to cross check the Digital controller. (available at extra cost)
- Two jets - One Universal OR One Furol can be screwed to the cup by a handle.
- Entire assembly works on 220 Volt, 50 Hz, Single phase, AC Supply
Following parts and accessories will be the part of standard supply:
- Main Frame : 01 No
- Stainless Steel Bath : 01 No
- Thermometer Support : 01 No
- Universal and Furol Orifice : 01 No each
- Orifice wrench : 01 N0
- Power Cord : 01 No
- Operation Instruction Manual : 01 No

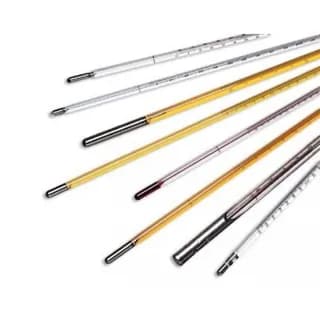

Other accessories Viz. ASTM / IP Thermometers, Flask receiver 60 ml, Digital stopwatch and consumable spares will be available at extra cost.
Overall Dimensions in Inches (L x W x H) |
15 x 12 x 22 |
