STANDARD PENETROMETER - FULLY AUTOMATIC - (ASTM D5, ASTM D217)-

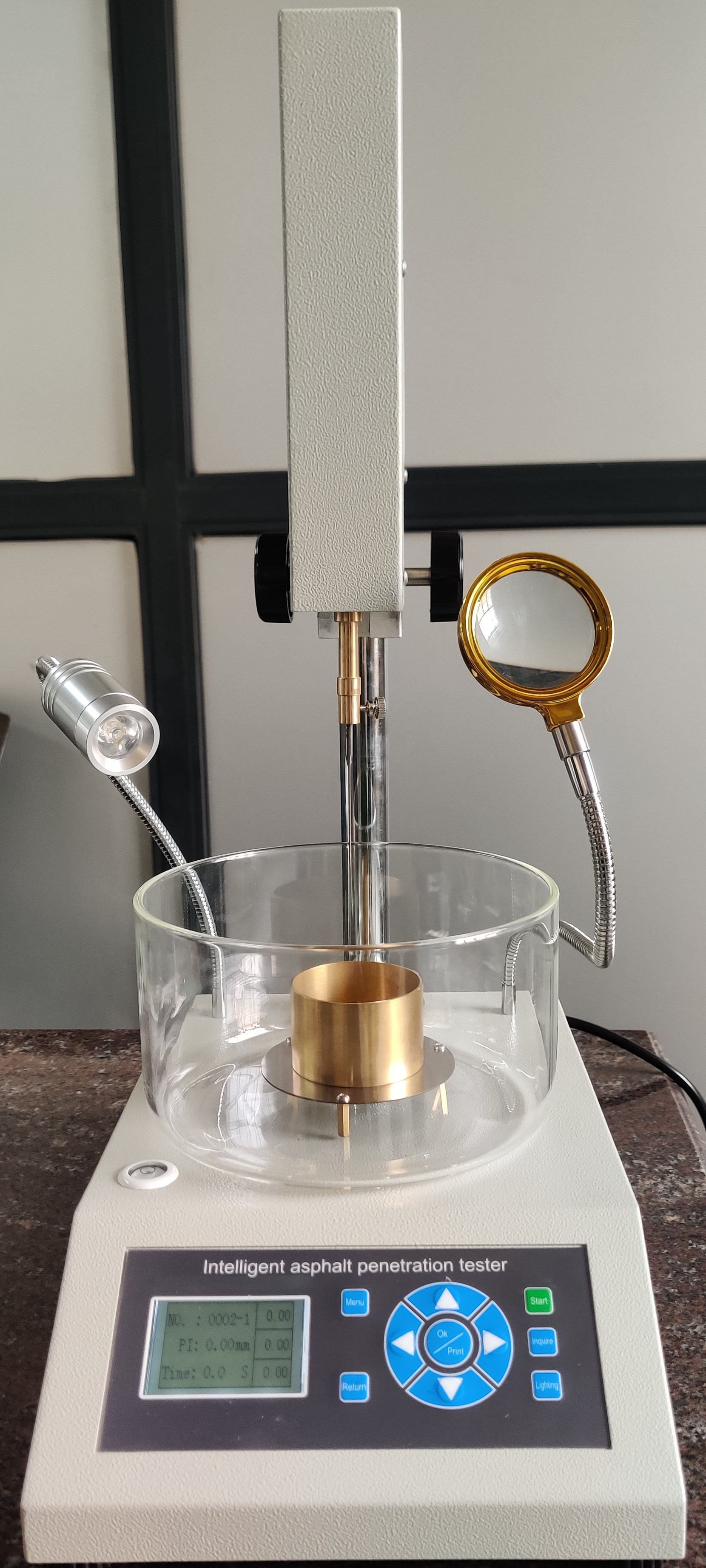

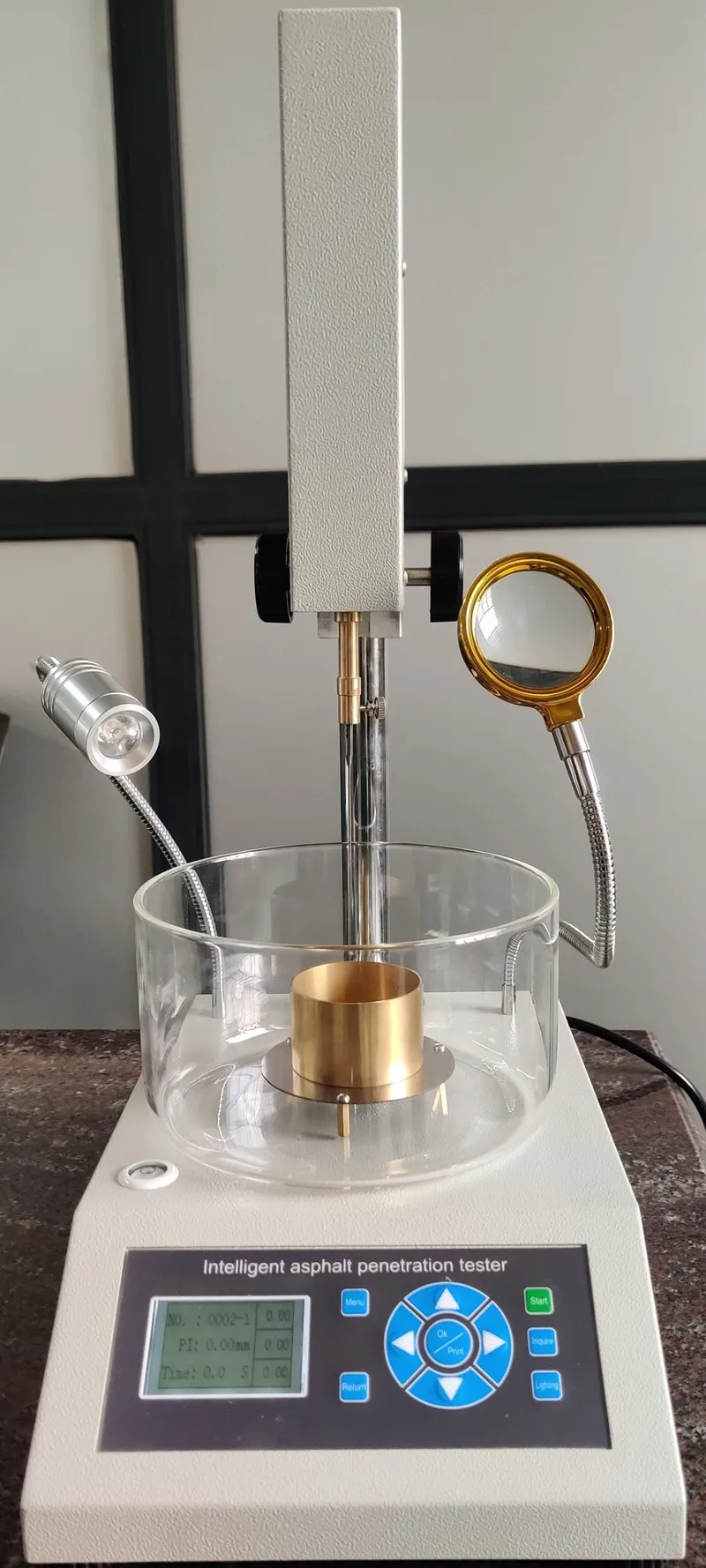

Fully Automatic Standard Penetrometer

Model Number : TM-044FA

Compliance Standards : ASTM D5 | ASTM D217 | ASTM D937 | ASTM D1321 |

Supplied with standard accessories to perform the Bitumen Penetration test. The Instrument can be used to perform penetration test on on a wide variety of materials such as grease, petroleum, Wax, Polish, foodstuff, rubber asphalts and Pharmaceutical creams with the appropriate penetration tools and Cups, which are available at extra cost on demand

Add to Cart
  • More Information
  • Technical specification
  • Accessories
  • Spares
More Information
up-botton
Fully Automatic Standard Penetrometer

Supplied with standard accessories to perform the Bitumen Penetration test. The Instrument can be used to perform penetration test on on a wide variety of materials such as grease, petroleum, Wax, Polish, foodstuff, rubber asphalts and Pharmaceutical creams with the appropriate penetration tools and Cups, which are available at extra cost on demand


Complies to following International Standard:

ASTM D5, ASTM D217, ASTM D937, ASTM D1321


Silent Features:

  1. Fully Automatic operational Design
  2. Compact design and rugged construction ensures long service life and facilitates easy transport for field applications.
  3. Touch screen display
  4. Opto-electronically depth detection & measurement through imported Opto-electronic sensor
  5. Automatically timed programmable penetration measurements ‑ Preset penetration time at factory (Operator can also enter the user defined penetration interval through touch screen)
  6. Motorized placement of penetrator on sample surface
  7. Penetrometer arm automatically comes back to its home position at the end of 5 seconds penetration test
  8. In‑built Facility to tare and reset the measurement results
  9. Display resolution of penetration depth in tenths of units (0.01mm)
  10. Magnifying lens for adjusting needle tip/cone tip exactly on the sample surface
  11. Low voltage Illuminator mounted on flexible arms to assist an operator during testing
  12. Built‑in spirit level and leveling screws to ensure proper alignment
  13. Micrometer differential gearing mechanism for fine movement of head
  14. Weight of the Needle/Cone and plunger match the criteria of ASTM and IP requirements.
  15. The base of the instrument is also user adjustable ‑ It can be lifted up or down with the jack provided at the bottom.
  16. The penetration time is controlled and indicated on Digital LCD display with least count of 0.01 second.
  17. The Opto-electronic sensor installed within the instrument detects the penetration depth in 10th of millimeter (0.01mm)
  18. The penetration value is measured and indicated on digital LCD display
  19. Supplied complete with Needle/cone, container and applicable weight


Supplied complete with following Accessories in case of Bitumen penetration:

  1. Weight of 50 Grams   1 No.
  2. Penetration cup of 55mm diameter x 35mm height  1 No.
  3. Transfer dish  1 No.

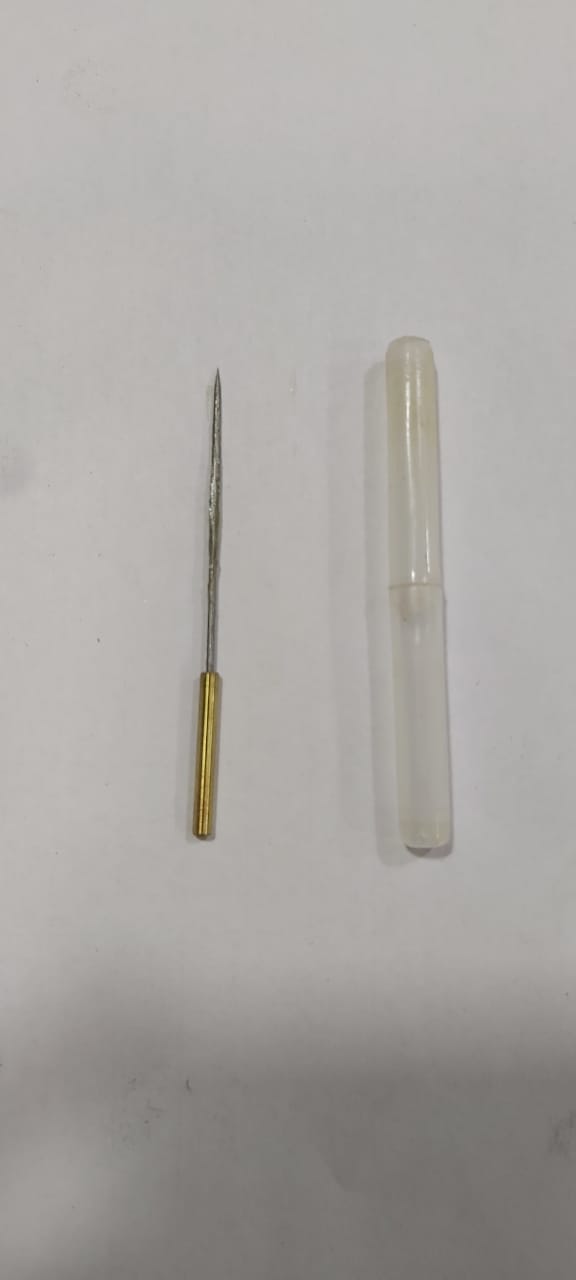

  4. Penetrometer Needle  1 No.
  5. Needle Holder 47.5g ± 0.05g   1 No.
  6. Thermometer ASTM 17C (+19 to 27 °C)  1 No.

OR


Supplied complete with following Accessories in case of Grease penetration:

  1. Sample container of 76.5mm dia x 63.5mm height  1 No
  2. Transfer dish   1 No

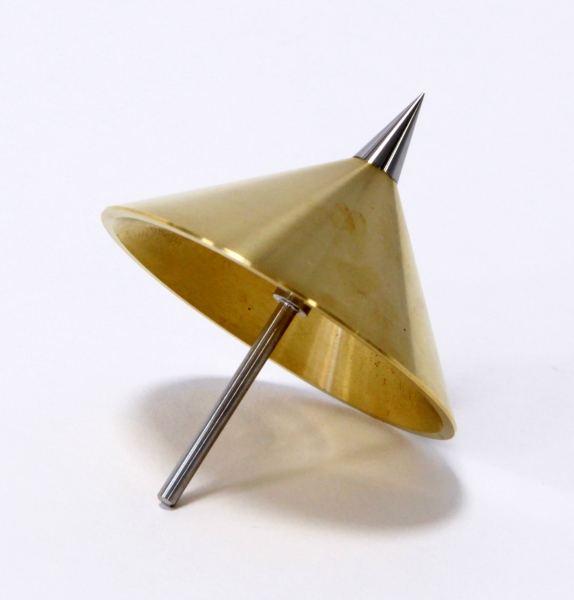

  3. Penetrometer Hollow 90° brass cone, Highly polished stainless steel tip   2 Nos


Note:

Please specify the intended penetration test at the time of placing the order. Instrument will be supplied with corresponding penetration accessories only.


Technical specification
up-botton

Measuring Range

0-40 mm

Timer Range

0-99,999 Seconds

Overall Dimensions

330 X 390 X 790(L X W X D) mm

Operation on

230 Volts, 50 Hz, Single Phase, AC Supply
