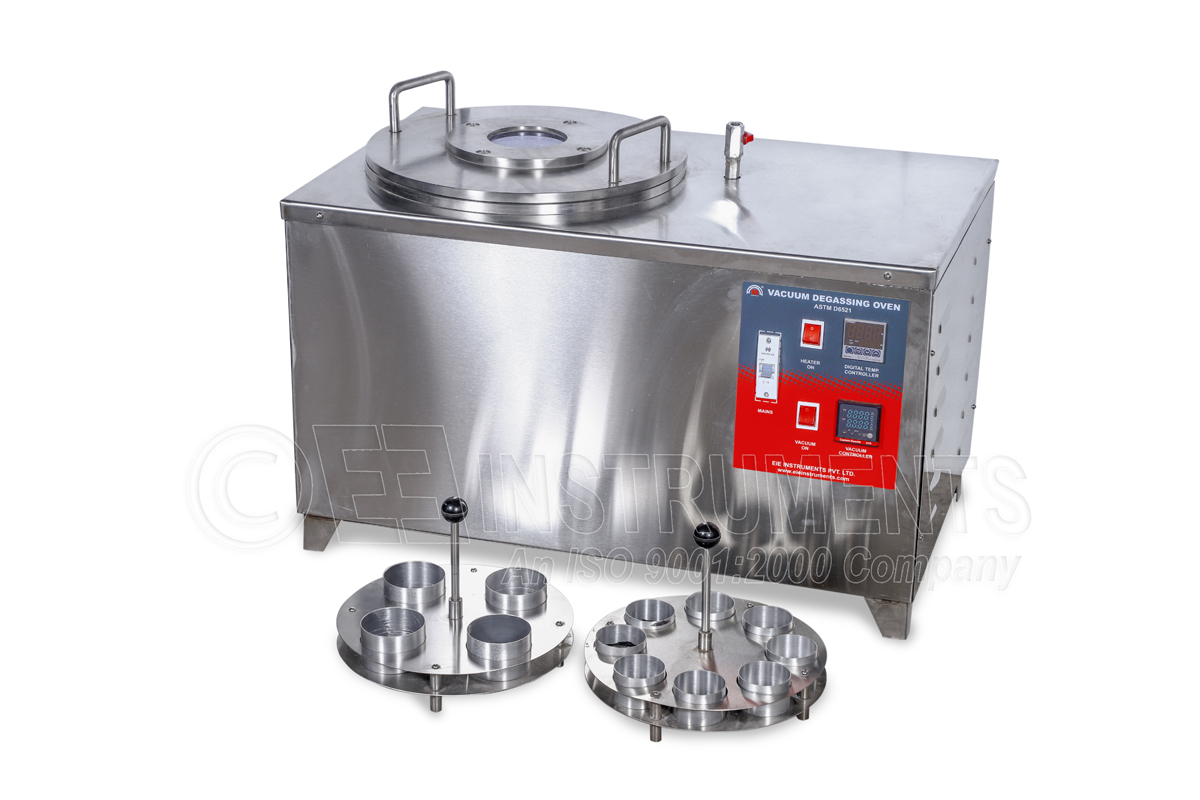

VACUUM DEGASSING OVEN WITH VACUUM PUMP
Model Number : EIE-VDO
The Vacuum Degassing Oven (VDO) from EIE has been designed to degas pressure aged binder samples to precisely and accurately meet AASHTO R28-06 and ASTM D6521-05 standards.
-
More Information
-
Technical specification
-
Accessories
-
Spares
More Information
Compliance Standards
AASHTO R28-06, ASTM D6521-05
System features include :
- Compact Unit
- Stainless Steel Construction
- Lid to conserve space and access the stainless steel vacuum chamber
- Easily cleaned work surface on top of unit for preparing and unloading specimens
- Holds up to (8) specimen containers of 55 mm DIA x 35 mm Height
- Self-contained automatic vacuum system
- High Precision Controller featuring a digital display indicating temperature
- Audible and Visual alarm, indicating end of process
- Maintains temperature up to 170°C with an accuracy of ±5°C.
- Digital vacuum controller indicated in kPa or in hg.
Includes :
- Specimen Containers-8 nos of 55 mm DIA x 35 mm Height
- Specimen Containers-4 nos of 70 mm DIA x 45 mm Height
Essential Instrument : Pressure Aging Vessel
Optional Instruments : Dynamic Shear Rheometer & Rolling Thin Film Oven
Technical specification
|
General |
|
|
Construction |
Bench top unit with stainless steel construction |
|
Specimen Capacity |
8 or 4 (Specimen Containers Included) |
|
Front Panel Display |
|
|
Dimensions. |
24" W x 16" D x 12" H |
|
Technical Specifications |
|
|
Operating Pressure |
Adjustable from 15 KPA to Atmosphere |
|
Temperature Range |
175ºC ± 5ºC |
|
Temperature Control Resolution |
0.1ºC |
|
Test Temperature Uniformity |
± 5ºC |
|
Over Temperature Protection |
|
|
Vacuum controller |
PID controller |
|
Vacuum transmitter |
0-760 mm hg range |
|
Vacuum Indication |
15 kpa ± 1 kpa |
|
Pressure Safety Release |
Solenoid Valve |
|
Inlet |
by vacuum pump |
|
Requirements |
|
|
Power Requirements |
230 VAC, 1 Ph. 50 Hz |
|
Ship Weight |
90 kgs. Approximate |
|
Shipping Crate Dimensions |
37" x 25" x 27" Approximate |
Accessories
CTM SOFTWARE WITH PC INTERFACE
Direct analytical reports on computer, Auto generation of load/time graph. Auto calculation of average of 3 readings, Two way communication facility - Can operate the machine through PC, Name of Issuing Lab and customer name can be inserted, Auto date and time of testing with age of testing (from the date of sample receipt), Transfer of result to PC on pressing ENT key. Results can be printed in EXCEL format. Data and design subject to change due to continuous R&D
SPLITTING TENSILE ATTACHMENT FOR CONCRETE CUBE AND PAVER BLOCK - BIS 516, BIS 15658, ASTM C496
This is an attachment to Compression Testing Machine. Compliance Standards, IS: 516 – 1959, IS:5816, IS: 1199-1959, SP: 23-1982, IS: 10086-1982, ASTM C496, BS1881, BIS 15658. Detailed specification mentioned in the long description.
LOAD FRAME FOR 500 KN - CTM AUTOMATIC-
This is an attachment to Automatic Compression Testing Machine of 1000 / 2000 / 3000 kN Capacity. The Pumping unit is shared by both the Load Frames. A valve is provided on the back of the Pumping unit to switch Flow of Hydraulic Oil either to 500 KN CTM Load Frame or to higher Capacity Load Frame. The attachment enable us test of Cement Cubes in addition to Concrete cubes without compromising the accuracy.
ELECTRONIC WEIGHING BALANCE-20 KG-1 GM-WITH INTERFACE TO CONNECT CTM
High Impact FRP Body, wide platform size 250 x 300 mm, with built in battery back up and with certificate of stamping from W&M department. Multi function and Auto calibration with external weight. We can also offer economic weighing balance having ABS body and small platform size of 200 x 250 mm.
