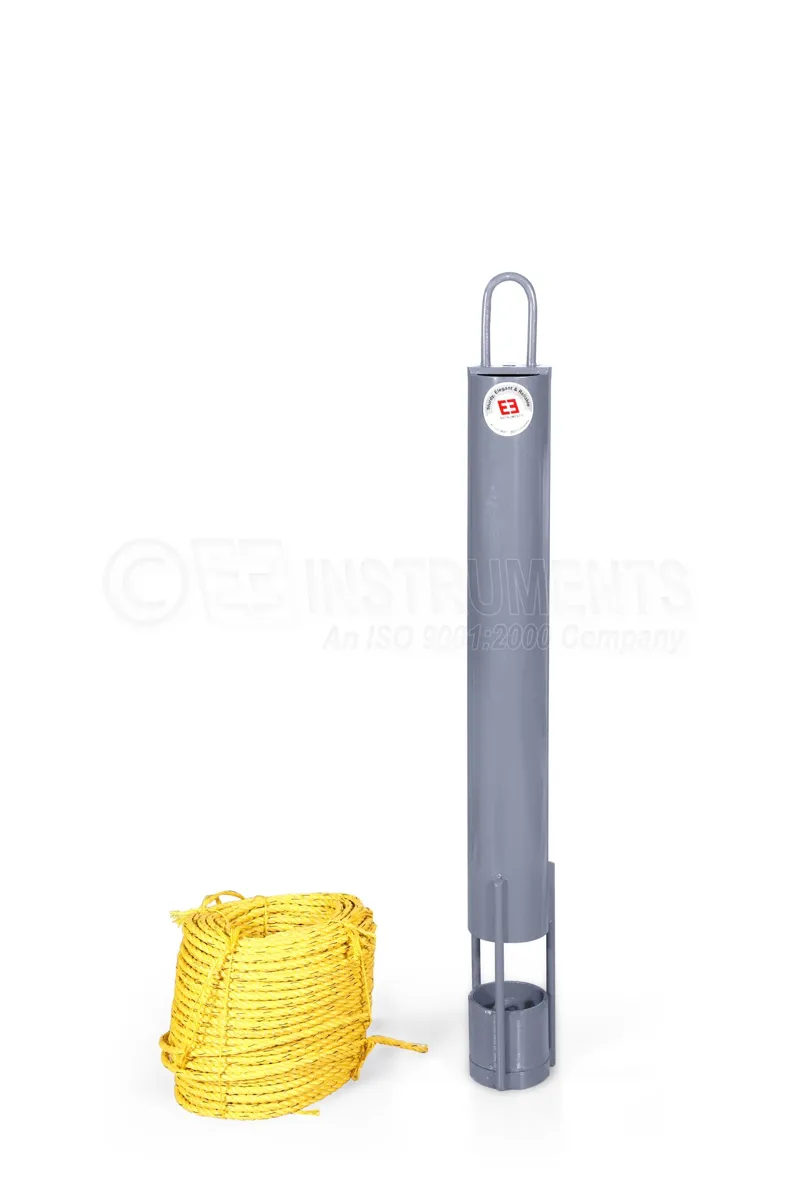

BENTONITE SLURRY SAMPLER - 50 MTR.

BENTONITE SLURRY SAMPLER - 50 MTR.

Slurry-Sampler is designed for capturing samples of drilling fluid from any specific depth within an excavation or borehole. This special sampler assures slurry samples taken produce a representative sample for proper test results. The use of a sampler is important for exact depth confirmation of viscosity, specific gravity, pH, and sand content data collection in the drilling fluid.

Samples are taken to check slurry properties at a marked depth to guide treatment and maintenance of the fluid, and in accordance with applicable specifications. The Slurry-Sampler is designed to collect a sample large enough to run the normal specification tests. This reliable sampler is important on projects where sand content is tested prior to concrete placement.

DIRECTIONS OF USE:

Lower or drop the Slurry Sampler into the slurry within the excavation. The bottom container open and allow the fluid to pass through the sampler as it falls to the intended level from where the sample is to be grabbed. When the sampler’s drop is stopped, the bottom container close and the sample is captured within the tube of the sampler.

When pulling the Slurry-Sampler upward through the column of fluid to collect the test sample, the bottom container remain closed preserving the representative sample.

Do not drop the sampler down at any time as this will allow fluid entry and impact the sample.
