COMPRESSION FRAME JIG ASSEMBLY AS PER - EN 196

COMPRESSION FRAME JIG ASSEMBLY AS PER - EN 196

Model No: TM-042.2

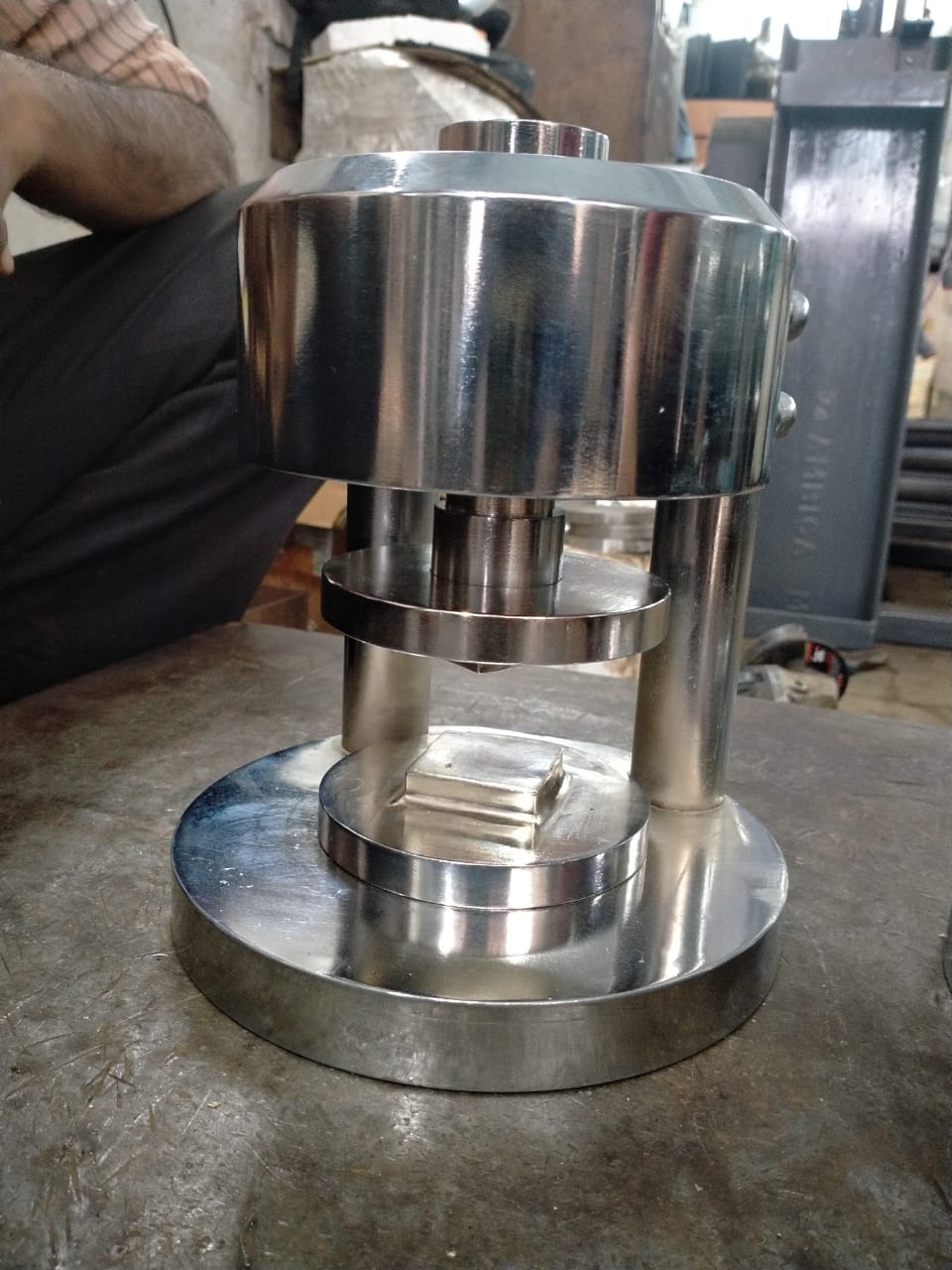

This jig is designed for testing of 40 x 40 x 160mm cement prism after breaking in Flexure and also can be adapted with 50mm platen to test 2” or 50mm mortar cement cube specimen. This jig can be fitted to Compression Test Machine

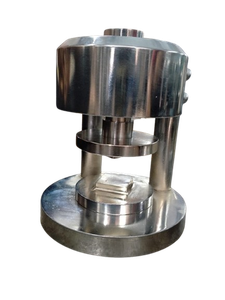

Robust frame fitted with an upper platen with spherical seat that moves vertically sustained by a spring. The apparatus can be placed and centered directly on the lower machine platen. Designed to test portions of 40x40x160 prisms broken in flexure. The total height is 195 mm. Vertical clearance of the compression machine has to be adjusted using suitable distance pieces accordingly.


Overall Dimensions 205 X 205 X 250 (L X W X D) mm
Weight (Approx.) 18 kg
