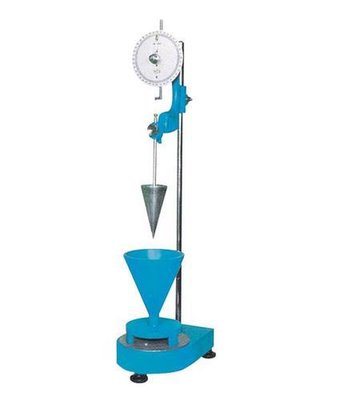

CONE PENETROMETER FOR CEMENT MORTAR - IS 2250

Compliance Standards :

IS 2250-1965 (Annex A)

Applications :

For determining the consistency of masonary mortar.

Details :

1. Consists of a movable bearing rod to which a cone 150 mm long and 75mm dia at a base, weighing about 300gm,  is fixed.
2. The bearing rod passes freely through a bracket which is provided with release mechanism.
3. A dial graduated in mm with rack and pinion is provided for measuring the penetration.
4. Complete with a conical container 150 mm ID x 180 mm deep and a platform.
5. Flow Table required for the test is available at extra cost
