FLOW TABLE (CEMENT)

FLOW TABLE (CEMENT)

Model Number : TM-80-GM

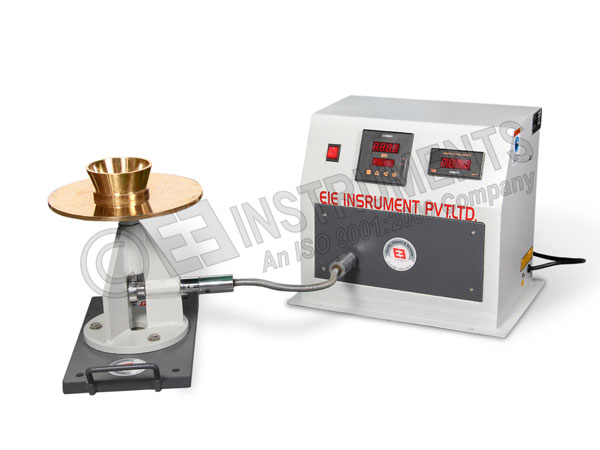

The flow table consist of a gunmetal table top 250 ± 2.5 mm dia mounted on a rigid stand. The table top is reinforced with equally disposed ribs and allowed to drop through 12 mm by a ground and hardened cam, Complete with mould- 100 mm base dia, 70 mm top dia and 50 mm high. The cam shaft is rotated at the rate of 100 RPM by an electric motor. Suitable for operation on 230 Volts 50 cycles. Single Phase, A.C. Supply. Complete with Digital Counter

FLOW TABLE VARIETY (FOR CEMENT)

MOTORISED - 30CM DIA - AS PER EN 1015-3
FOR BUILDING LIMES - HAND OPERATED - 30CM DIA - AS PER IS 6932
HAND OPERATED - 25CM DIA - GUNMETAL TOP - IS 5512
HAND OPERATED - 25CM DIA - STEEL TOP - IS 5512
HAND OPERATED - GUNMETAL TOP - (ASTM C230)
MOTORISED - (ASTM C230)
MOTORISED - 25CM DIA - GUNMETAL TOP - IS 5512
MOTORISED - 25CM DIA - M.S. TOP - IS 5512
