GILLMORE NEEDLE APPARATUS - (ASTM C266, AASHTO T154)

GILLMORE NEEDLE APPARATUS - (ASTM C266, AASHTO T154)

Model Number : TM-202-S

Used to determine initial and final set times of Portland cement, masonry cement, hydraulic hydrated lime and certain mortars. ASTM C266, AASHTO T154, ASTM C141, ASTM C91

  • More Information
  • Technical specification
  • Accessories
  • Spares
More Information
up-botton
Compliance Standards:
ASTM C266,  AASHTO T154

Applications:
 Used to determine initial and final set times of portland cement, masonary cement, hydraulic hydrated lime and certain mortars.

Details:

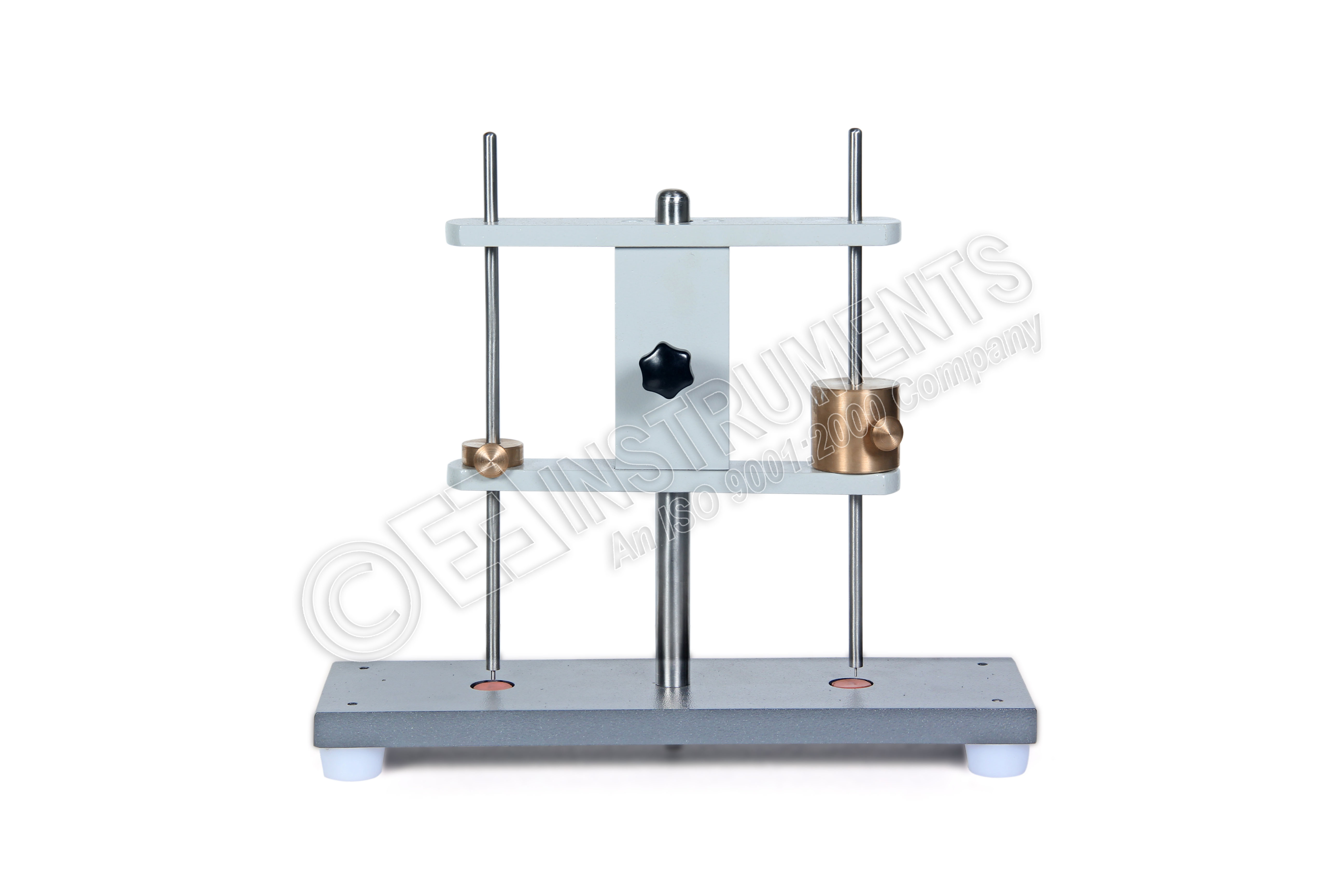

  • The adjustable support has horizontal arms to guide two weighted needles with flat-end cylindrical stainless steel tips.
  • The support assembly is adjustable. Base has ample flat shelf for positioning specimens.
  • The two steel needle weights are calibrated to meet specifications.
  • The needle points are manufactured from stainless steel.

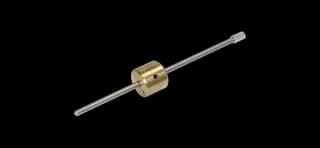

  • The initial setting needle is 2.12 mm in diameter and weighs 113 grams.

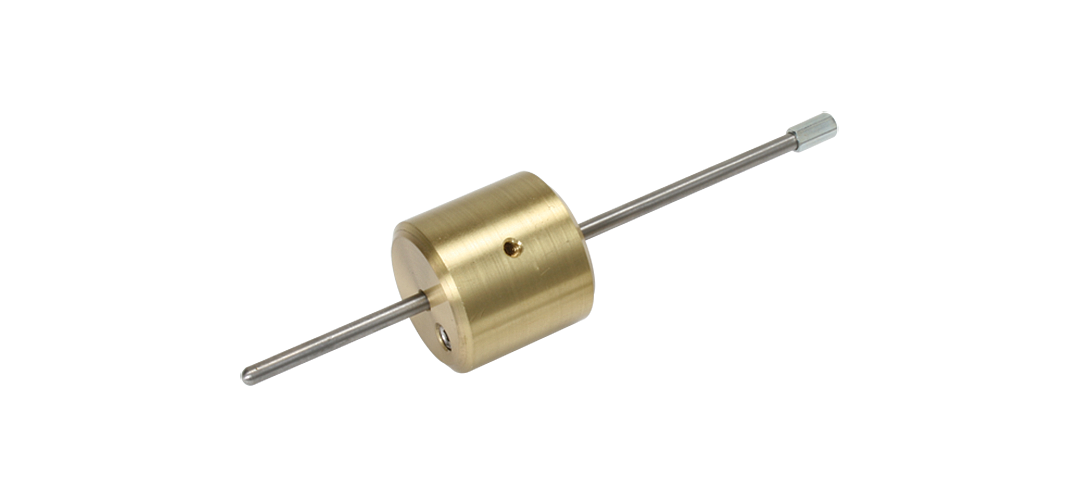

  • The final setting needle is 1.06 mm in diameter and weighs 453.6 grams.
  • Supplied with 02 Nos  glass plates - Dimension 100 ± 5 mm square
  • Also supplied complete with 02 Nos Cement paste pat Mould (Base diameter 76 ± 13 mm & Top diameter 50 ± 13 mm)
Features:
  • Meets several ASTM and AASHTO test methods for set-time testing
  • Includes initial and final-set needles
  • Large base to position specimens
Technical specification
up-botton
GILLMORE NEEDLE APPARATUS - ASTM C266, AASHTO T154

Overall Dimensions

230 X 100 X 260 (L X W X D) mm

Weight (Approx.)

3.30 KG
