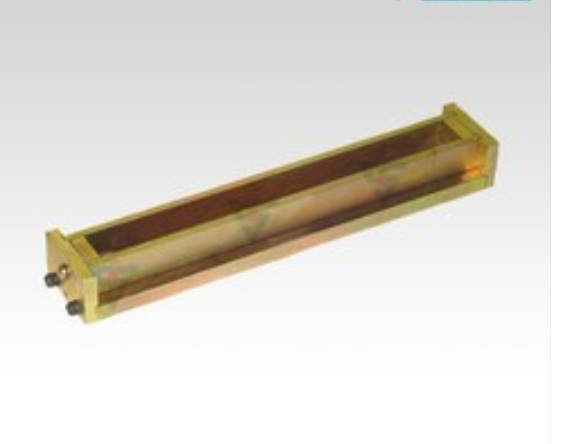

PRISM MOULD-40 X 40 X 160 MM-SINGLE MOULD COMPARTMENT-MILD STEEL MATERIAL

PRISM MOULD-40 X 40 X 160 MM-SINGLE MOULD COMPARTMENT-MILD STEEL MATERIAL

Model No: CA-1042

This is not strictly as per IS. As per IS, three gang mould is required.

Compliance Standards:

IS:10078, IS: 4031 (Part-VIII) (This is not strictly as per IS. As per IS, three gang mould is required)


Applications:

To cast the specimen of 40 x 40 x 160 mm dimensions to determine the Transverse strength of Plastic Mortar.


Technical Specifications :

  • EIE moulds are made of high quality metal
  • Strong enough to resist distortion & retain their shape and size even under rugged conditions
  • Mould is supplied complete with base plate
  • Two reference points per compartment of the mould are incorporated
  • Mould Size : 40 mm x 40 mm section and 160 mm effective length
Mould Size 40 x 40 x 160 mm
No of compartments Single Compartment
Thickness of wall plate 10 mm
Length of base plate 276 ± 2 mm
Width of base plate 240 ± 2 mm
