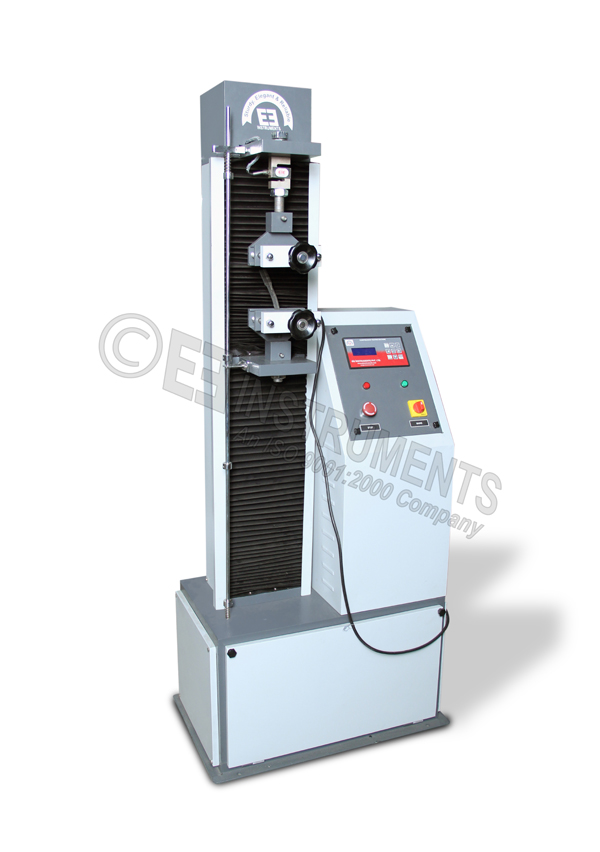

Salient Features:
- Floor standing model
- Aesthetic outer appearance
- Unique and compact design features
- Fitted with Microprocessor based PROGRAMMABLE Logical controller
- Computer interface through USB Drive
- Equipped with Ball screw for friction less traverse
- Rotary encoder for high accuracy in elongation
- Reputed make induction motor with dedicated gear box and drive for speed variation and to maintain speed at high torque (at maximum load)
- Easy to use display unit (controller part) and software
- In‑built Over Load Safety
- In‑built Over Travel Safety
- Auto Reverse facility
- Auto Break
- You can get graph for load v/s elongation (stress v/s strain) and also get a excel sheet with a single click
Software facility:
- Specially designed Windows based Graphical Dedicated Software
- RS 232 interface with WINDOW based software to conduct the test directly from software itself
- Can store generated data with corresponding graph
- User can export the generated data in various file formats such as i.e. Excel, PDF etc
- Large Storage capacity (More than 50,000 tests) Depending upon Hard Disk capacity.
- User can change the design of generated graphs i.e. Line, Doted line, etc facility in graph
- Graph Grids color combination facility
- Graph zooming facility
- Individual graph comparison facility
- Graph overlapping facility for analysis of material property
- Auto scaling facility
- Company logo insertion facility
- Software can run various tests and can recall data for any test conducted the in history. (If Saved)
- Software is Menu Driven for easy navigation.
- Test reports and graphs directly printed on terminal printer through direct print commands
- Data and Result Units Selectable
- User can operate the machine directly from the software itself
Exterior Body Paint |
Powder coated |
Display |
Digital LCD Display |
Capacity |
0-250 Kgf (0-2500 N) |
Load cell |
‘S Type’ load cell of reputed make |
Vertical Clearance |
700 mm |
Pneumatic clamping pressure |
Adjustable upto 5 kg/cm2 (Optional) |
Results displayed on screen |
Load, Elongation values, Testing speed and type of test |
Least count for elongation |
0.01mm |
Least count |
0.01 kg or 0.1 N |
Load units |
Kg, Newton & KN as per selection |
Speed Variations |
From 50mm/min to 300 mm/min |
Motor for speed variations |
Reputed make induction motor with dedicated gear box |
Test jaws |
Individual jaws for Tensile Test of CEMENT HDPE BAG |
No. of screws |
Single screw mechanism driven through motor & gearbox |
Power Supply |
230 Volt, 50 Hz, Single Phase, AC Supply |
Overall Dimensions |
|
Weight (Approx.) |
