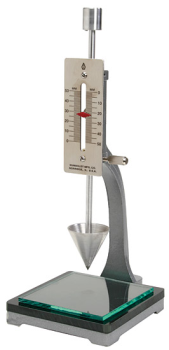

VICAT NEEDLE APPARATUS-(MODIFIED FOR GYPSUM TEST)-(IS 2542 (P-I), ASTM C472)

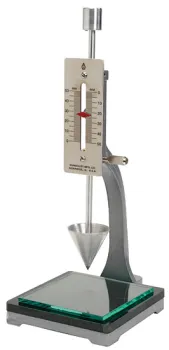

VICAT NEEDLE APPARATUS-FOR GYPSUM TEST

Model Number : TM-202-M

The Vicat needle apparatus is used to determine the setting time and consistency of cement, gypsum, plaster, or similar materials. It assesses how long it takes for a paste to achieve a certain state of stiffness, which is critical for ensuring material usability and performance. As per IS 2542 (P-1), ASTM C472,EN 196-3,BS 4550 Part 3 Section 3.5

More Information
Techincal Specification

Compliance Standards:

IS 2542 (P-1), ASTM C472

Applications:

Is used to determine the volume of water required for mixing Gypsum Plaster When performing the setting time and compressive strength test.

Apparatus Details:

Complete with following parts and accessories

Brass rod of 6.35 mm diameter to fit the vicat bracket.
Conical plunger, Aluminum cone with angle 53° 8 min, 45 mm height
Vicat mould 60/70 diameter x 40 mm
The total weight of the rod & plunger will be 35 grams.
Glass plate 110 x 110 x 3 mm

Overall Dimensions	120 X 180 X 320 (L X W X D) mm
Weight (Approx.)	3 KG
