Compliance Standards :
IS:9013-1978(R.A.2018)
HEATING + COOLING

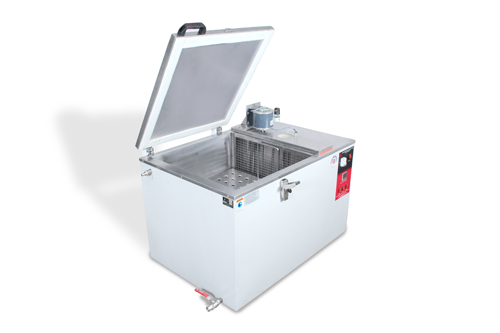

For 12 cubes of 150 mm / 24 cubes of 70.6 mm size. Controlled from 10°C to 100°C ± 2°C curing temp, can be controlled at 27°C ± 2°C for normal curing or accelerated curing by boiling water method up to temperature range : 100 ± 2°C as per IS standard IS:9013-1978(R.A.2018). Also it will have capacity for curing by warm water method at temperature 55 ± 2°C. The whole body of cube mould with the sample of concrete/cement mortar inside is to be immersed in the tank and the Tank is stout enough to bear heavy load on its platform.
Applications
Accelerated Curing Tank having capacity to accommodate various sizes of concrete cube moulds or Cement mortar Cube Moulds, with a facility for accelerated curing by boiling water method up to temperature range : 100 ± 2°C as per IS standard IS : 9013. Also it will have capacity for curing by warm water method at temperature 55 ± 2°C. The whole body of cube mould with the sample of concrete/cement mortar inside is to be immersed in the tank and the Tank is stout enough to bear heavy load on its platform.
Construction Details
Tank will consist of a rectangular double walled metal cabinet, inner chamber made of 1mm thick stainless steel(S.S.304). Outer chamber made of 20 SWG Galvanized sheet ‑ powder coated. 50 mm gap between the walls is filled up with special grade glass wool for purpose of insulation to avoid heat and cool losses. Specially designed L shaped High wattage heaters will be mounted in the chamber in such a way that, it facilitates easy replacement within 5 minutes by normal skilled person. It will have facility to circulate water inside the chamber by stirrer to maintain the uniform temperature of water. Inside the chamber, there will be a heavy gauge stainless steel perforated platform with ribs to with stand the heavy load of the cubes. It will also have a lid with lifting handle to cover the chamber.
The front panel will have power supply indicating lamp and one main switch suitable for operation on 440 Volts, 50 Hz, three phase, AC supply. It will also have a DIGITAL Auto tuning PID temperature indicator cum controller fitted on the front panel.
The tank will be double walled construction; inner chamber will be made of 20 SWG S.S. sheet of 304 quality. The inner chamber size will be such that it accommodates 12 moulds of 15 cm or 24 moulds of 70.6mm size. The outer chamber is made of Galvanized Sheet of 20 SWG. 50 mm gap between the walls is filled up with special grade glass wool for purpose of insulation to avoid heat and cool losses. The inner chamber has ribs for placing the shelves at convenient levels supplied with two removable shelves. It is fitted with Stainless steel lid door with closing device.
- Computer interface provided for data logging (Optional)
- Refrigeration system with Emersion make compressors
- Inner made of 304 grade stainless steel.
- Inner dimension: 31" x 25" x 22" (L x W x H)
- Outer made of Mild Steel with powder coated.
- Double folded hinged Lid made of S.S.304
- Water circulating pump cum stirrer for uniform temperature.
- Provided with water inlet and outlet valves.
- with stand and heavy duty reinforced shelf for keeping cubes
- Supplied without Cube Moulds.
Overall Dimensions |
1850 X 850 X 1050 (L X W X D) mm |
Type of model |
Floor standing model |
Mobility |
Castor wheels (Heavy duty wheels) for easy mobility |
Construction |
Double walled construction |
Inner chamber |
Stainless Steel S.S.- 304 Grade Material |
Exterior body |
G.I powder coated |
Working size |
31" x 25" x 22" (L x W x H) |
Chamber volume |
274 Ltrs |
Can accommodate |
12 cubes of 150 mm / 24 cubes of 70.6 mm size |
Insulation |
Special grade glass wool for purpose of insulation to avoid heat and cool losses. |
Insulation thickness |
50 mm |
Sample placement arrangement |
Heavy gauge stainless steel perforated platform with ribs to with stand the heavy load of the cubes. |
Lid of the bath |
Lid with lifting handle to cover the chamber. |
Temperature controller |
Microprocessor based Digital Temperature Controller cum Indicator |
Temperature Range |
10 °C to 100 °C |
Temperature Display |
LED Digital Display |
Temperature sensor |
PT-100 Sensor |
Temperature Resolution |
0.1 °C |
Temperature Accuracy |
± 2 °C |
Temperature Uniformity |
± 2 °C |
Heater Types |
Specially designed L shaped High wattage heaters |
Refrigeration System |
Emerson/Kirloskar/Danfoss/Reputed make refrigeration system with compressor |
Refrigerant |
R134-A Grade refrigerant |
Water Circulation |
Water circulating pump cum stirrer to maintain uniform temperature throughout the chamber. |
PC Interface |
Optional computer interface for data logging purpose |
Weight (Approx.) |
216 Kg |
