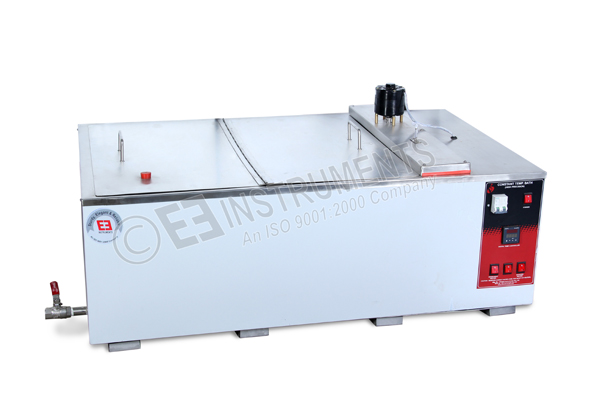

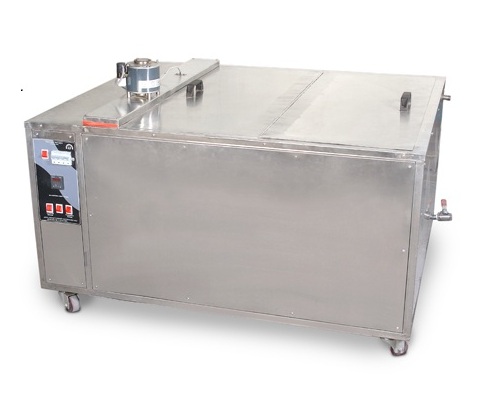

ACCELERATED CURING TANK-INNER S.S.-FOR 12 CUBES OF 150MM - IS 9013

Model No: VIPL-042-12

More Information
Techincal Specification

Relevant Standard.

As per IS:9013.

Accelerated Curing Tank having capacity to accommodate 12 Nos. of concrete cube moulds, with a facility for accelerated curing by boiling water method up to temperature range : 100 +/‑ 2°C as per IS standard IS : 9013. Also it will have capacity for curing by warm water method at temperature 55 +/‑ 2°C. The whole body of cube mould with the sample of concrete/cement mortar inside is to be immersed in the tank and the Tank is stout enough toi bear heavy load on its platform.

Tank will consist of a rectangular double walled metal cabinet, inner chamber made of thick gauge stainless steel. Outer chamber made of Galvanized sheet ‑ powder coated. Specially designed L shaped High wattage heaters will be mounted in the chamber in such a way that, it facilitates easy replacement within 5 minutes by normal skilled person. It will have facility to circulate water inside the chamber by stirrer to maintain the uniform temperature of water. Inside the chamber there will be a heavy gauge stainless steel perforated platform with ribs to withstand the heavy load of the cubes. It will also have a lid with lifting handle to cover the chamber.

The front panel will have power supply indicating lamp and one main switch suitable for operation on 440 V, 50 Hz three phase, AC supply. It will also have a DIGITAL Auto tuning PID temperature indicator cum controller fitted on the front panel. Detailed Technical Specifications as under

Overall Dimensions	1360 X 800 X 970 (L X W X D) mm
Working dimension	790 X 635 X 560 mm (L X W X H)
Type of model	Floor standing model
Construction	Double walled construction
Inner chamber	Stainless Steel S.S.- 304 Grade Material
Exterior body	20 SWG Galvanized sheet Material
Exterior Body Paint	Powder coated in attractive shades
Can accommodate	12 cubes of 150 mm
Insulation	Special grade glass wool for purpose of insulation to avoid heat and cool losses.
Insulation thickness	50 mm
Sample placement arrangement	Heavy gauge stainless steel perforated platform with ribs to with stand the heavy load of the cubes.
Lid of the bath	Lid with lifting handle to cover the chamber.
Temperature controller	Microprocessor based Digital Temperature Controller cum Indicator
Temperature Range	5 °C above ambient to 100 °C
Temperature Display	LED Digital Display
Temperature sensor	PT-100 Sensor
Temperature Resolution	0.1 °C
Temperature Accuracy	± 2 °C
Temperature Uniformity	± 2 °C
Heater Types	Specially designed L shaped High wattage heaters
Water Circulation	Stirrer to maintain uniform temperature throughout the chamber.
Power Wattage	7.5 KW
Power Supply	440 V , A.C., Three Phase
Weight approx	142 kg (Unpacked)
