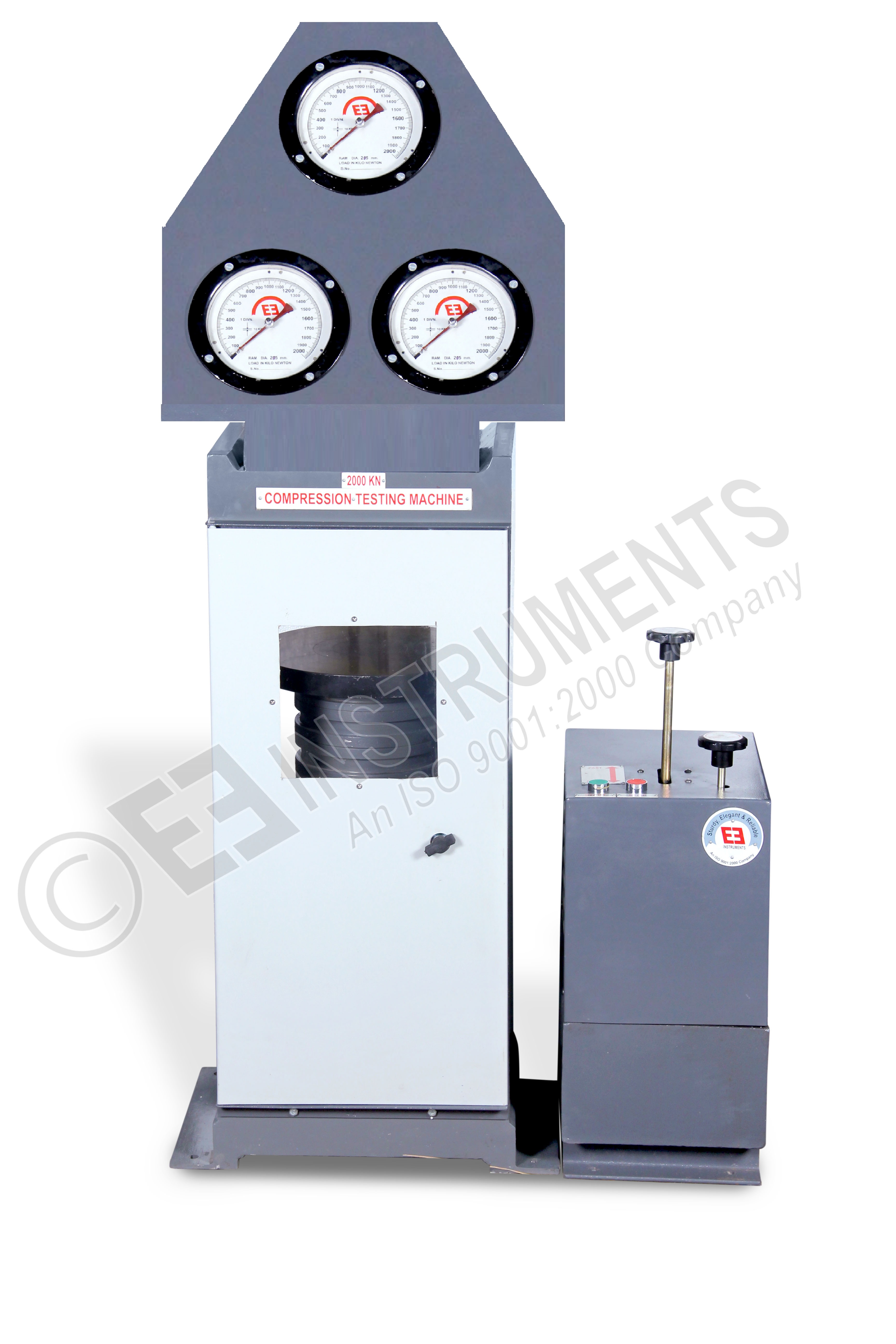

![{{ no such element: frappe.website.doctype.website_slideshow_item.website_slideshow_item.WebsiteSlideshowItem object['item_name'] }}](/files/CTM_three__Guage.jpg)
![{{ no such element: frappe.website.doctype.website_slideshow_item.website_slideshow_item.WebsiteSlideshowItem object['item_name'] }}](/files/COMPRESSION TESTING MACHINE-WITH MANUAL PACE RATE CONTROL AND PRESSURE GAUGE (3).jpg)

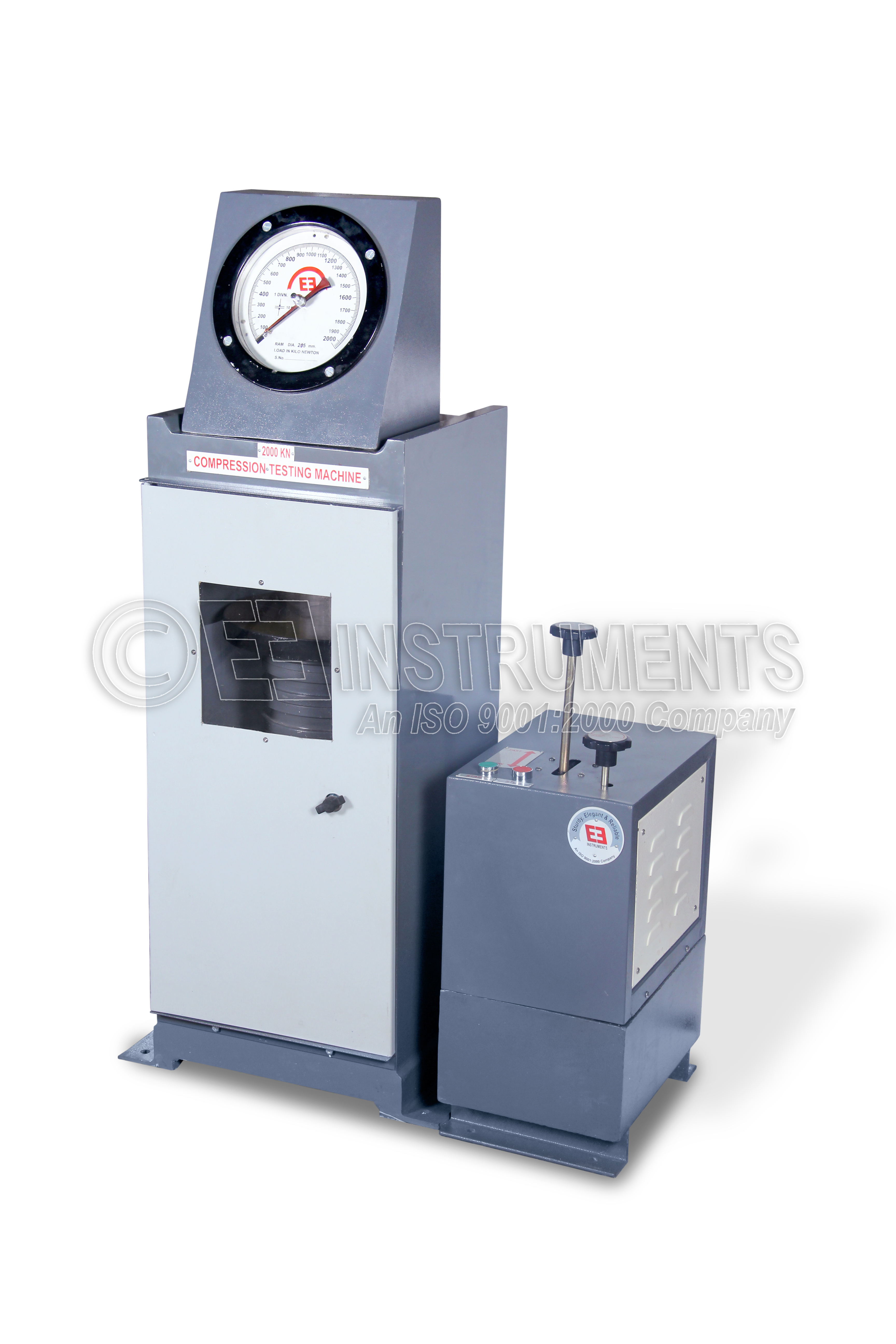

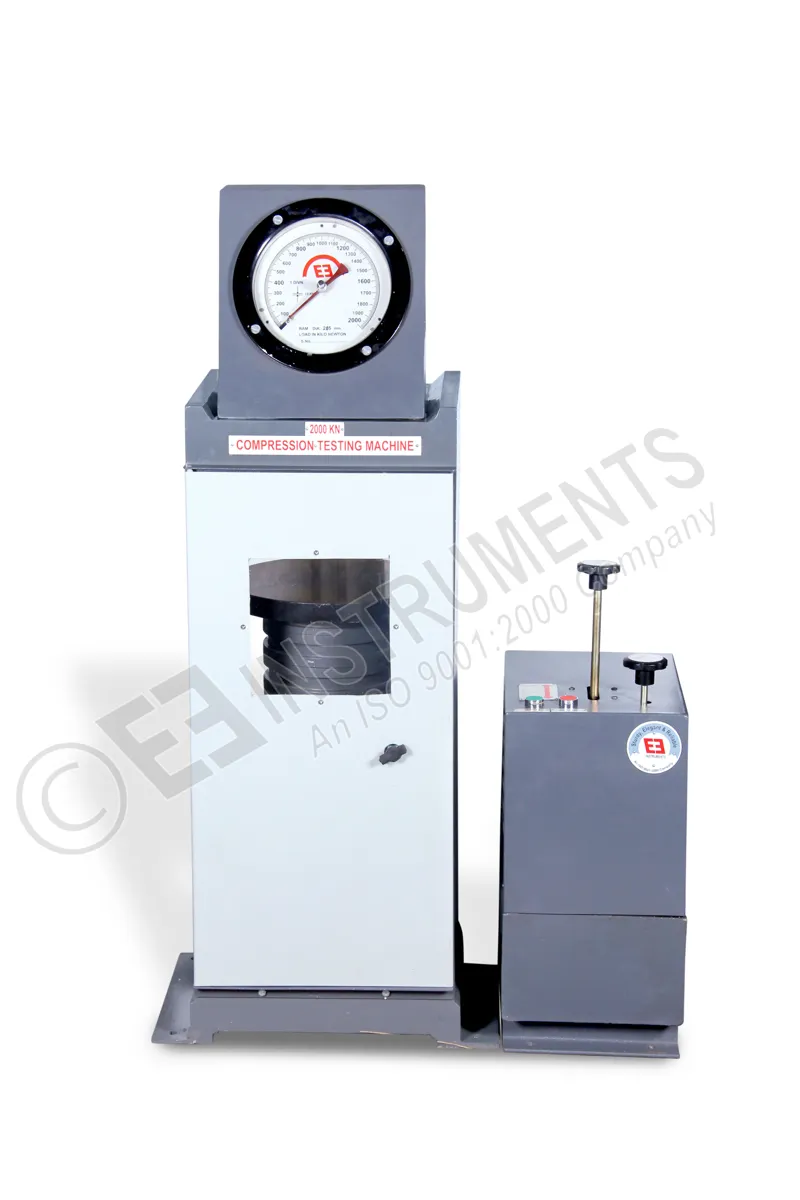

COMPRESSION TESTING MACHINE - ANALOG - SINGLE GAUGE
Model Number : TM-042A
Compression Testing Machines conform to the requirements of IS : 516 and other international standards like BS and ASTM. Detailed Specification as follows:
-
More Information
-
Technical specification
-
Accessories
-
Spares
More Information
Available Capacity.
- 1000 kn (100 Ton)
- 1200 kn (120 Ton)
- 1500kn (150 Ton)
- 2000kn (200 Ton)
- Aesthetically designed unit
- The electric pumping unit is fixed with a micro?switch to switch off the motor automatically as the load on the machine approaches the rated capacity.
- The unit is equipped with a 8" dia pressure gauges with maximum red pointer.
- Four column high stiffness and high stability fully welded construction of the loadframe.
- The upper platen has got a self aligning action and is attached to a rigid cross head plate.
- The lower platen rests on the jack ram and is positioned with the help of a centering pin.
- Loading is accomplished by upward movement of lower platen.
- A dust cover is provided on the jack to prevent any dust from going into the cylinder.
- A spacer with a centering locating pin is provided to test small specimens.
- The lower and upper platens of the machine are hardened ground and polished.
- The pumping unit is a separate unit connected to the jack by means of a high pressure hose pipe.
- A junction box is suitably fixed to connect the motor to the mains through a push button starter.
- Calibrated against N.P.L. Tested Master Gauge or Proving Ring.
- A max red pointer is provided to facilitate taking readings after failure of the specimen.
- The pressure gauge is fixed at an Angle for easy readability.
- High strength rigid structure (Loading Frame)
- Pumping unit (Oil source cabinet)
- Pressure gauge
- Pair of compression platens
- High pressure hose pipe
Technical specification
|
Pumping |
Motorized |
|
Vertical daylight in mm |
350 mm |
|
Pump Speed |
Dual speed |
|
Reading |
Analog |
|
Motor |
Induction Motor |
|
Least count |
0.5% of the full load |
|
Accuracy |
± 2% |
|
Release valve operation |
Required |
|
Auto stop after failure of specimen |
Not available, need to stop the machine manually |
|
Auto Release of Pressure after specimen failure |
Not Available, Need to release pressure manually after the completion of test |
|
Calculation of result |
Manual |
|
Holding of Max.Load |
Available |
|
Pace Rate or Rate of Loading indication |
Not Available |
|
Operator skill to control Pace Rate |
Not Applicable |
|
Bar Graph |
Not Available |
|
Multi Channel operation |
Not Available |
|
Load indication and Control |
Manual |
|
Saving of records |
Not Available |
|
Pen drive slot |
Not Applicable |
|
Real time graph |
Not Applicable |
|
Printer interface (Direct connectivity to printer w/o computer) |
Not Applicable |
|
Computer operation software and data Acquisition software |
Not Applicable |
|
Displacement controlled operation |
Not Available |
|
Modulus of Elasticity Calculation |
Not Available |
|
Flexural attachment |
Possible, all calculations will be made manually |
|
Splitting Tensile Test |
Possible but manual calculation required |
|
LAN Connectivity |
Not Available |
|
Auto internal Calibration without proving ring |
Not Available |
|
Piston over travel safety cut off |
Not Available |
|
Over load safety cut off |
Available |
|
Shot circuit protection |
Available |
