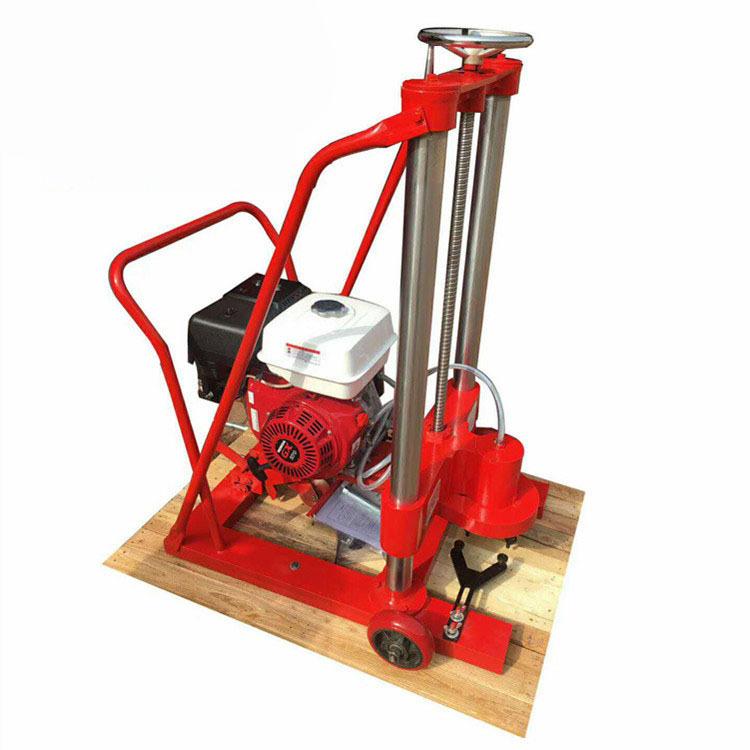

PAVEMENT CORE DRILLING MACHINE WITH PETROL ENGINE - 5.5 HP WITHOUT DRILL BIT

PAVEMENT CORE DRILLING MACHINE WITH PETROL ENGINE - 5.5 HP WITHOUT DRILL BIT

Model Number : TM-051

Complete with Honda Petrol Engine, Plastic water tank and a tool kit. Detailed specifications as mentioned in the long description. Diamond core drill bit available at extra cost and offered separately

  • More Information
  • Technical specification
  • Accessories
  • Spares
More Information
up-botton
Application:
For vertical coring applications of Concrete & Asphalt pavement
Details:
  • Core Cutting Machine to take out core sample from Asphalt, concrete & reinforced structure.
  • The Machine is fitted with Honda Petrol Engine 6 HP capacity.
  • The capacity of the machine is 150 mm dia x 300 mm depth.
  • The Machine will be supplied with Plastic water tank for supplying coolant to the cutting bit.
  • The core‑cutting machine is portable  in nature & has towing arrangement with castor wheels for easy movement.
Technical specification
up-botton
PAVEMENT CORE DRILLING MACHINE WITH PETROL ENGINE - 5.5 HP WITHOUT DRILL BIT

Maximum cutting depth

300 mm depth

Depth Adjustment

Manual adjustment by using Hand Screw

Driving system

Petrol engine operated through V-BELT System

Blade size (Drill Bit size) diameter

100 mm/150 mm diameter

Blade rotation (Drill bit rotation)

Down cut (Vertical coring application)

Water tank material

Plastic

Engine power

5.5 HP

Overall Dimensions in Inches (L x W x H)

29 x 35 x 43
