EIGHT CELL TOUCH SCREEN RCPT WITH TEMPERATURE SENSING USING DAQ SYSTEM - WITH ACCESSORIES

EIGHT CELL Rapid Chloride permeability Apparatus with Eight channel DAQ systems and 7” size HMI Color Touch screen display, Complete with Vacuum Desiccator with Vacuum Pump & accessories.

Specifications:

• DC power supply 0-60 volt 8 ampere with 3 digit LED display
• Four line LCD display to indicate the current in all the eight cell’s current in milli ampere.
• Built in data acquisition system with PC interface software

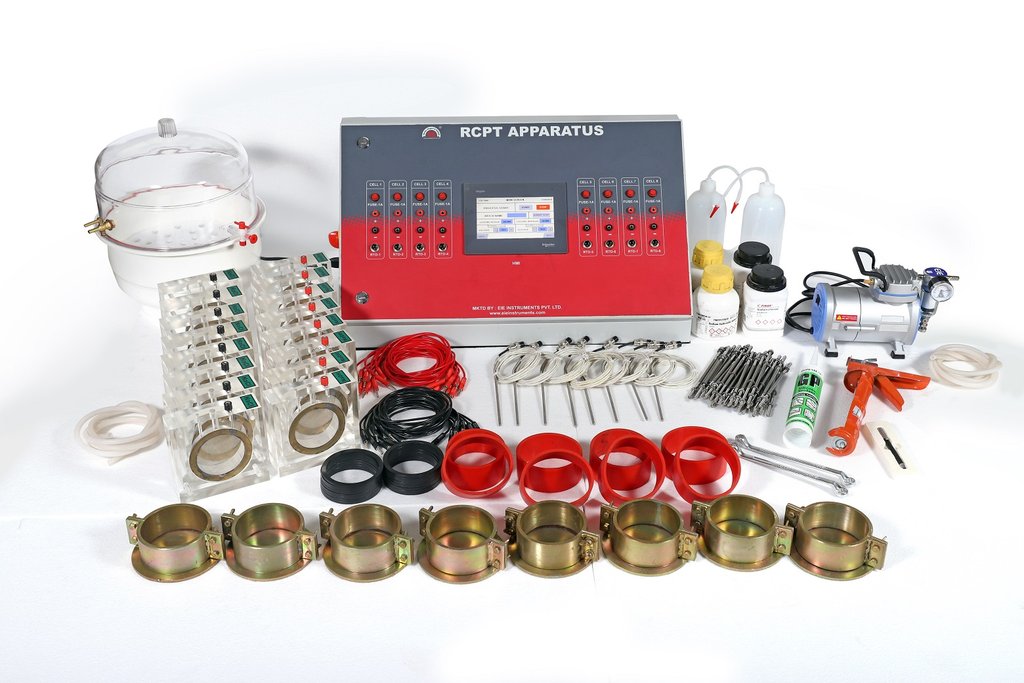

The total Supply includes the following components:

• Eight Cell RCPT apparatus, with PC interface software
• Acrylic Cells Machined as per ASTM C 1202 to hold the concrete specimens of 100 mm diameter - 8 sets
• Flexible cable 1 meter long with banana connectors- Red - 8 nos.
• Flexible cable 1 meter long with banana connectors- Black - 8 nos.
• RS232- USB port interface cable - 1 no.
• Software CD - 1 no.
• Stainless Steel Bolts - 32 Nos.
• Stainless steel washers - 64 nos.
• Stainless steel Nuts - 64 nos.
• RTV sealant - 1 tube
• GUN
• 250 mm vacuum desiccators. - 1 No.
• Vacuum pump - 1 No.
• Moisture trap with vacuum gauge - 1 No.
• Elastomeric Rubber Moulds for cylindrical specimens - 8 Nos.

Consumables:

• NaOH salt - 500 gram
• NaCl salt – 500 gram

Acrylic cell consists of the followings:

• Brass mess -88mm diameter - 1 no
• Brass plate -88mm diameter - 1 no
• Brass washer- 102 mm OD 88mm ID - 1 no
• Rubber washer 102mm OD 88 mm ID - 1 no
