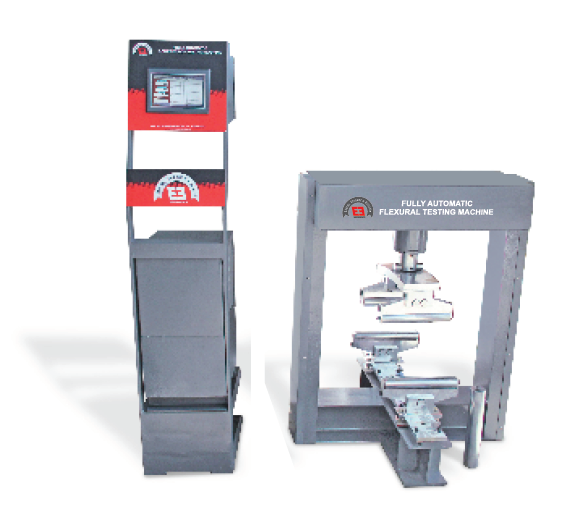

FLEXURAL STRENGTH TESTING MACHINE - FULLY AUTOMATIC - SERVO CONTROLLED
Model Number : TM-74FAD
As per IS:516, BS:1881 and ASTM C78, EN 12390-5, AASHTO T22, Fully automatic test execution. Controllable pace rate from 0.03 KN/Sec to 10 KN/Sec
-
More Information
-
Technical specification
-
Accessories
-
Spares
More Information
Compliance With Following International Standards:
IS:516, BS:1881 and ASTM C78
Automatic Test Execution:
Once the machine has been switched on, the specimen positioned and centered, the only required operations are:
Set test parameters including load rate:
- Press the start button
- The machine automatically: starts the rapid approach; switches to the test speed once the specimen comes into contact with the upper platen; automatically stops the motor upon specimen failure
- Save the test including data results .
- The test execution conforming to Standards can be easily proved.
- Working on 240V, 50 60Hz, single phase.
- Dual stage pump assuring fast piston approach and precise test execution
- Test execution conforming to EN 12390-5, ASTM C78, AASHTO T22
- Controllable pace rate from 0.03 KN/Sec to 10 KN/Sec.
- Auto stop after completion of each test.
- Soft platen to specimen contact and smooth load rate control from the very beginning of the ramp
- Servo motor driven machine
- Auto calculation of the flexural strength after the failure of the sample.
- Calculation is done after failure of the sample by sending the distance of the nearest roller from the crack.
Frame:
- High stiffness welded frame tested for stability.
- Heavy duty spherical seat, allowing initial free alignment at the initial contact with the specimen and automatic jamming up to the end of test.
- Piston travel limit switch (Extra cost)
- Emergency stop button
- Servo motor driven machine
- Gives live online graph on the 7" touch screen
- User friendly large graphical display
- Saves 50 results in the 7" touch screen
- Inbuilt USB drive to save the data.
Salient fetchers of data manager PC software (Optional at extra cost.):
- Two way communication i.e machine operates from computer and from the touch screen controller both (Stat, stop, save data and save graph)
- Results directly saved in excel file.
- Graph also saved in excel file.
- Capable to save customer name, other details of customer, ageing of beam moulds, identification mark of the beam moulds, date and time of testing
- Capable to print direct report from the computer.
- Capable to select different test parameters like pace rate, sample size and area from the computer (software)
- Capable to select different type of tests, like flexural, CTM, aggregate crushing etc.
Note: It is recommended to use the machine with 3 KVA servo stabilizer
Technical specification
|
Capacity |
100 Kn |
|
Diameter of rollers |
38 mm Dia |
|
Ram Dia in mm |
90 mm |
|
Ram Travel in mm |
50 mm |
|
Weight approx in kg |
250 Kg |
|
Least count |
0.001kN |
|
Controller |
7" touch screen controller |
|
Accuracy |
1% or better |
|
Pace rate controlling accuracy |
2% or better |
|
Overall Dimensions |
430 X 760 X 1150 (L X W X D) mm |
|
Net weight (in kg) |
250 kg |
Accessories
CTM SOFTWARE WITH PC INTERFACE
Direct analytical reports on computer, Auto generation of load/time graph. Auto calculation of average of 3 readings, Two way communication facility - Can operate the machine through PC, Name of Issuing Lab and customer name can be inserted, Auto date and time of testing with age of testing (from the date of sample receipt), Transfer of result to PC on pressing ENT key. Results can be printed in EXCEL format. Data and design subject to change due to continuous R&D
SPLITTING TENSILE ATTACHMENT FOR CONCRETE CUBE AND PAVER BLOCK - BIS 516, BIS 15658, ASTM C496
This is an attachment to Compression Testing Machine. Compliance Standards, IS: 516 – 1959, IS:5816, IS: 1199-1959, SP: 23-1982, IS: 10086-1982, ASTM C496, BS1881, BIS 15658. Detailed specification mentioned in the long description.
LOAD FRAME FOR 500 KN - CTM AUTOMATIC-
This is an attachment to Automatic Compression Testing Machine of 1000 / 2000 / 3000 kN Capacity. The Pumping unit is shared by both the Load Frames. A valve is provided on the back of the Pumping unit to switch Flow of Hydraulic Oil either to 500 KN CTM Load Frame or to higher Capacity Load Frame. The attachment enable us test of Cement Cubes in addition to Concrete cubes without compromising the accuracy.
ELECTRONIC WEIGHING BALANCE-20 KG-1 GM-WITH INTERFACE TO CONNECT CTM
High Impact FRP Body, wide platform size 250 x 300 mm, with built in battery back up and with certificate of stamping from W&M department. Multi function and Auto calibration with external weight. We can also offer economic weighing balance having ABS body and small platform size of 200 x 250 mm.
