FLOW TABLE (CONCRETE)-900 X 900 MM

As per IS:1199(Part 6)-2018

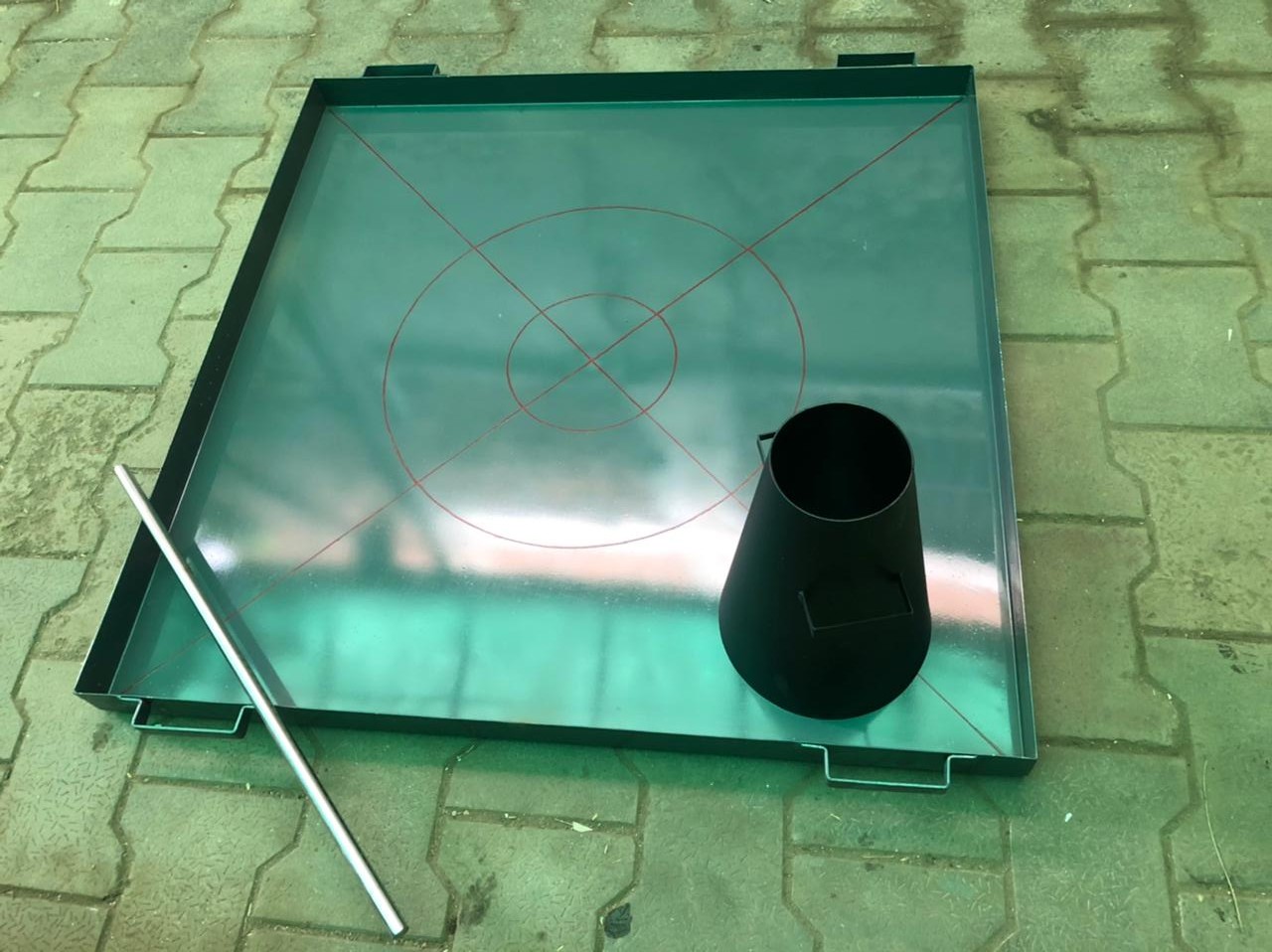

The apparatus consist of a Slump Cone and a M.S. base Plate, made from a flat steel plate (3 mm thick), with a plan area of at least 900 mm × 900 mm on which concrete can be placed.The plate will have a flat, smooth surface. The construction of the plate will be stout enough to prevent distortion and deviation from flatness will be less then 3 mm at any point when a straight edge is placed between opposite sides and corners. The center of the plate will be scribed with a cross, the lines of which run parallel to the edges of the plate. and with circles of 210 ± 1 mm diameter and 500 ± 1 mm diameter having their centers coincident with the center point of the plate (as per Fig. 1 of IS). All lines will be of maximum of 2.0 mm wide and 1.0 mm deep

Essential accessories at extra cost:

1. Mason trowel - 6”
2. Stop watch - Digital
3. S.S. scale 1 mtr.
4. G.I. scoop - 8” x 4”
5. Spirit level (1000 mm)
6. G.I. container or bucket - 10 ltr capacity

Note: The base plate can also be made of stainless steel at an extra cost.
