J RING TEST APPARATUS - ASTM C1621/1621M‑06

Compliance with following International Standards:

ASTM C1611‑09, ASTM C1621/1621M‑06

Application:

The J‑ring test can be used to determine the passing ability of self‑consolidating concrete. It is applicable for laboratory use in testing different concrete mixtures for passing ability or can be used in the field as a quality control test. Passing ability refers to the ability of SCC, under its own weight (without vibration), to flow into and completely fill the spaces within an intricate framework, containing obstacles such as reinforcement bars

Details:

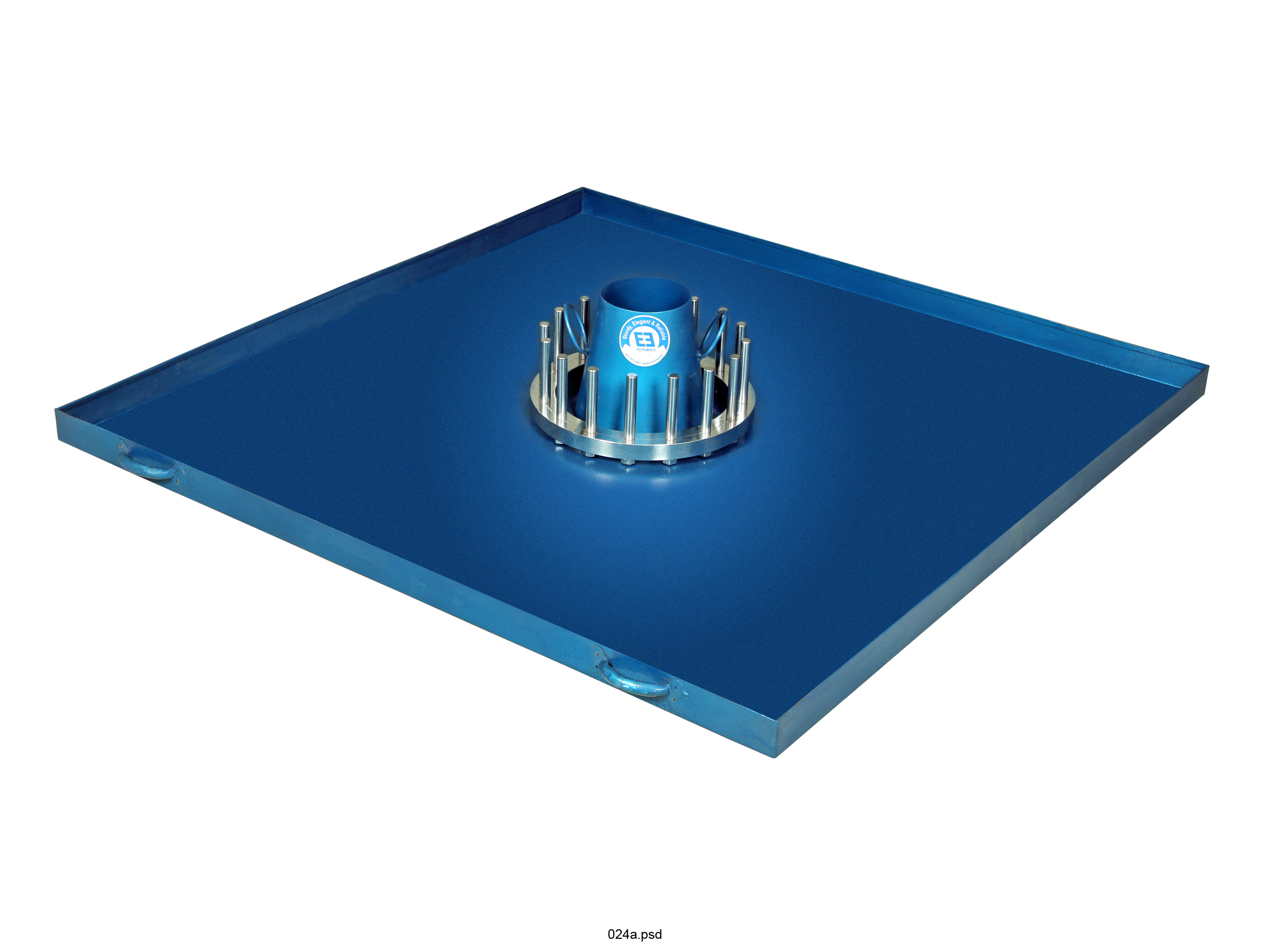

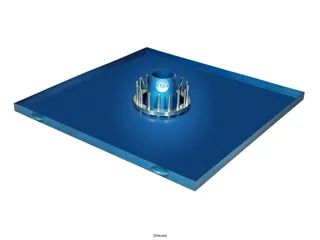

The equipment consists of rectangular section of 38 mm X 25 mm open steel ring drilled vertically with holes to accept threaded section of reinforcing bars. The bars and sections can be placed at different distance apart to simulate the congestion of reinforcement of the ring formed by vertical section.

Includes each one of following parts and accessories:

1. Abram cone having 200 mm bottom diameter, 100 mm top diameter and 300 mm height-made of Mild steel sheet of 16 swg thickness with paint
2. Base plate of 900 mm x 900 mm-made of Mild steel sheet of 16 swg thickness with paint
3. Reinforcing bars 18 mm diameter x 100 mm length
4. J ring rectangular section 38 mm *25 mm plated vertically to form a ring 300 mm diameter generally at a spacing of 48 ± 2 mm-made of mild steel circle of 25 mm thickness duly chrome plated

Essential accessories Viz. Stop watch, Scoop etc. are not supplied and has to be arranged by the user.

The Instrument can also be supplied in all S.S.construction.
