LABORATORY PULVERIZER

Laboratory Pulverizer

Model Number : EIE-143

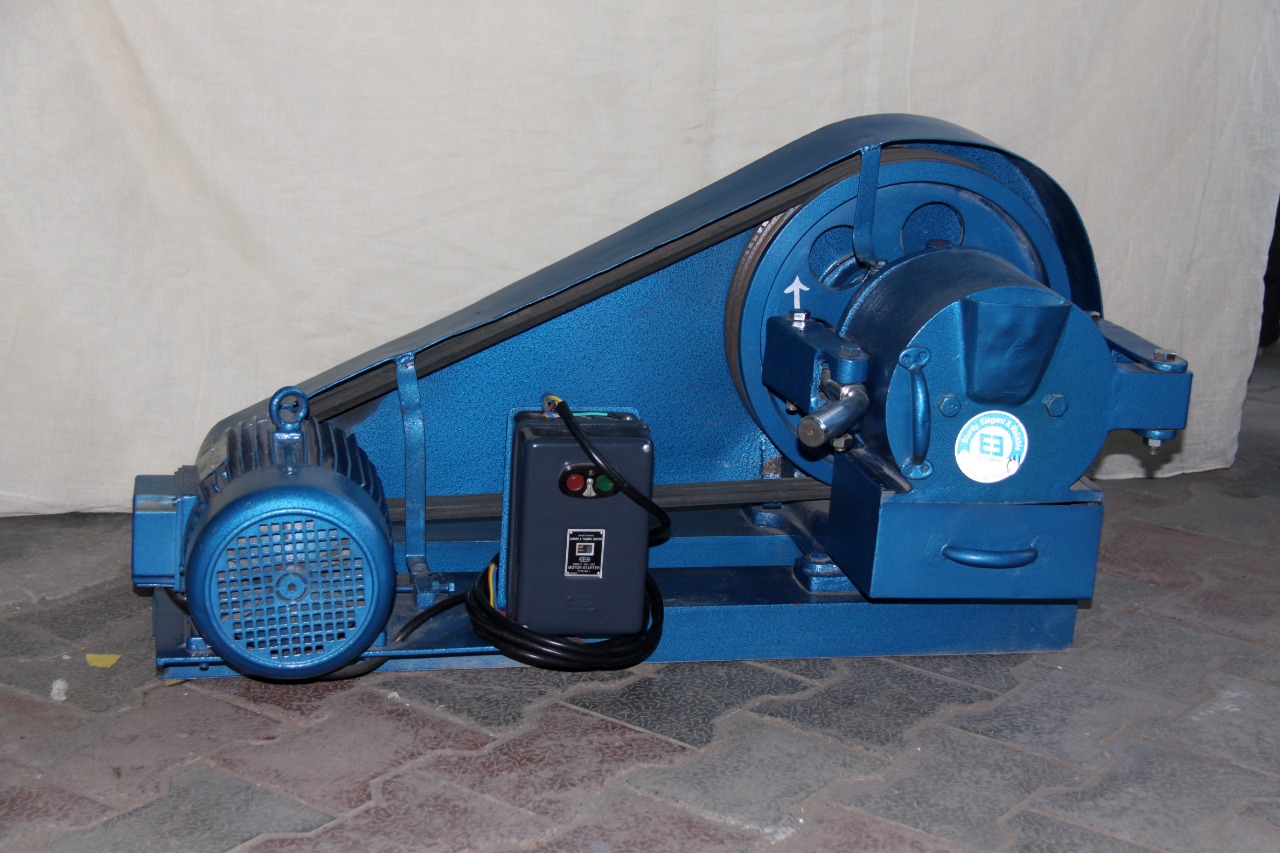

Laboratory pulverizer with L&T Starter is a disc type grinder, designed to grind virtually any material to produce a fine mesh sample in one operation. Detailed specification as follows:

Add to Cart
  • More Information
  • Technical specification
  • Accessories
  • Spares
More Information
up-botton

Brief construction details:

  • It is a self contained grinder, with a rotary disc, having a planetary movement in a vertical plane.
  • This feature gives added life to the moving parts and produces a sample of uniform fineness.
  • Grinding is done between two discs, one of which is stationary and the other revolving eccentrically at
  • high speed.
  • The discs are made from heat treated mechanized metal.
  • With the help of a convenient hand wheel, the size of the final product can be adjusted.
  • This can be done, even while the machine is in operation.
  • A self locking device holds the hinged grinding chamber  in place and affords easy and quick access to it, for removal of ground samples & for cleaning.
  • The Pulverizer has a capacity of reducing about half a kilogram of Quartz type sample to 100 mesh in about minute.
  • The Pulverizer is supplied complete with a 3 H.P. Motor,  a starter, "V" Belt pulley, drive and mounting wires for 440 Volts, 3 phase A.C. 50 Hz.

Technical specification
up-botton

Disc diameter

175 mm

Maximum feed Size

1‑6 mm

Yield

250 gms/min

Discharge product Size

212 Microns on 1st discharge, 150 microns in 2nd discharge
