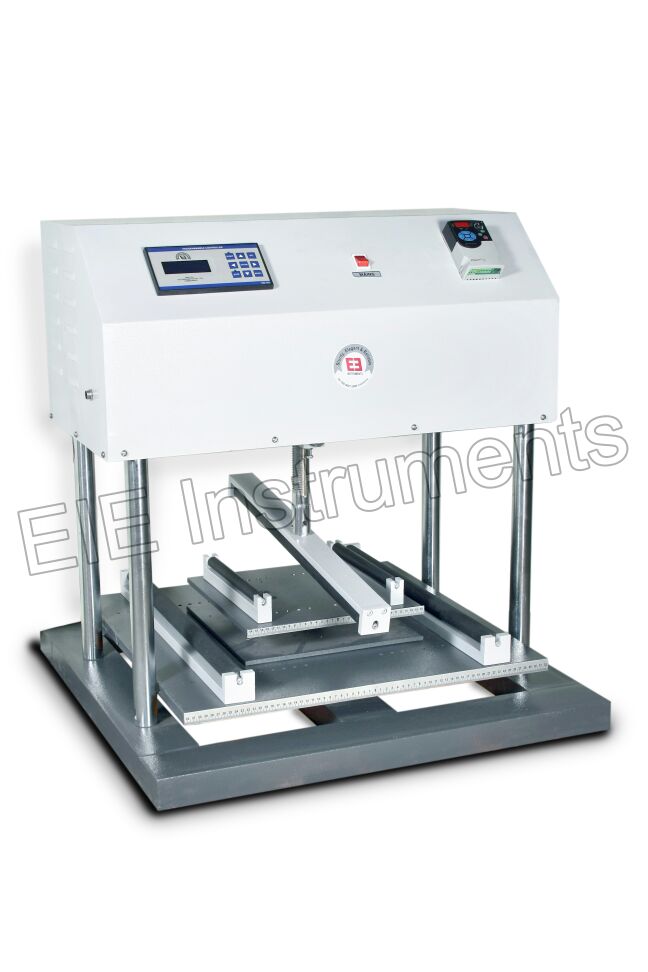

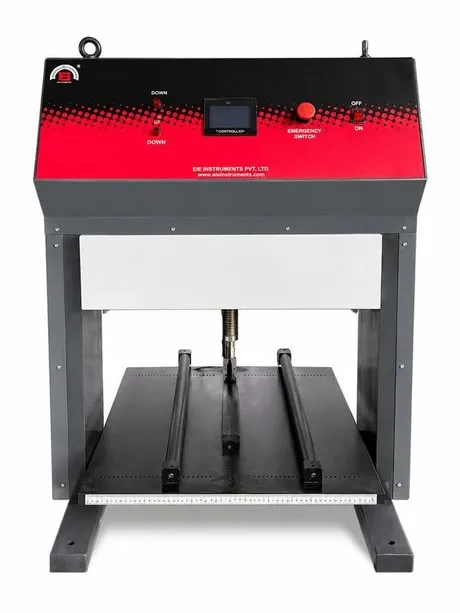

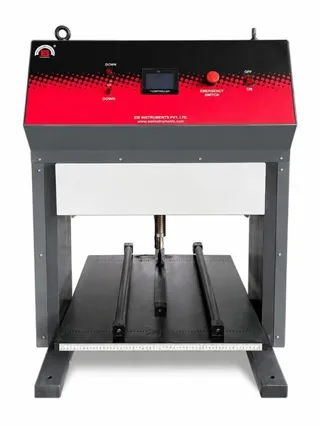

PAVER BLOCK FLEXURAL TESTING MACHINE - WITH AUTOMATIC PACE RATE CONTROL
Model Number : TM-74PBDA
As per IS : 15658 (Annex G). Electro-Mechanical Design, quite and vibration free operation, Automatic Pace rate control @ 6 KN/min. PC connectivity with software available at extra cost. Detailed Specification as follows:
-
More Information
-
Technical specification
-
Accessories
-
Spares
More Information
Compliance with following international standards:
IS : 15658 (Annex G)
Introduction:
Electro-Mechanical Design, quite and vibration free operation, Automatic Pace rate control @ 6 KN/min.
Capacity : 100 kN
Least Count : 0.001 kN
Accuracy : 0.2% of Full Scale
Salient Features:
- Standard Digital Model with Load Cell
- Suitable for FLEXURAL Test of PAVER BLOCK as BIS 15658
- Direct reading possible for different shapes of blocks
- CONTROLS AUTOMATIC PACE RATE @ 6 KN / MIN
- Direct Display of Load / Collapsing Force
- Selectable Test Units - Kg, KN
- Auto-stop upon completion of Test.
- Provision for emergency switch in case, if user wants to stop the load applicator at certain height
- With embedded push buttons operation on Digital panel.
- INTEGRATED AC INDUCTION MOTOR WITH DRIVE to control rate of Loading.
- With 2 rollers 32 mm diameter
- With adjustable Test Span
- With Auto-Calibration facility using standard Cast Iron Weights and standard code (Weights will not be supplied with the machine)
- Complete Unit is powder coated in attractive shades
- Operation on 230 Volt, 50 Hz, Single Phase, AC Supply
Note : 3 KVA servo controlled stabilizer is MANDATORY
Technical specification
|
Design |
Electro-Mechanical |
|
Operation |
Quiet and Vibration free |
|
Pace rate control |
Automatic @ 6 kN / min |
|
Load cell Capacity |
10000 kgf (100 KN) |
|
Accuracy |
0.2% of full scale |
|
Can accommodate |
Maximum tile size of 300 x 300 mm (30 x 30 cm) |
|
Display |
LCD Display |
|
Construction |
Mild steel body |
|
Paint |
Powder coating |
|
Power Supply |
230 volts, 50 hz, single phase, AC Supply |
|
Overall Dimensions in Inches (L x W x H) |
27X35X45 |
Accessories
CTM SOFTWARE WITH PC INTERFACE
Direct analytical reports on computer, Auto generation of load/time graph. Auto calculation of average of 3 readings, Two way communication facility - Can operate the machine through PC, Name of Issuing Lab and customer name can be inserted, Auto date and time of testing with age of testing (from the date of sample receipt), Transfer of result to PC on pressing ENT key. Results can be printed in EXCEL format. Data and design subject to change due to continuous R&D
SPLITTING TENSILE ATTACHMENT FOR CONCRETE CUBE AND PAVER BLOCK - BIS 516, BIS 15658, ASTM C496
This is an attachment to Compression Testing Machine. Compliance Standards, IS: 516 – 1959, IS:5816, IS: 1199-1959, SP: 23-1982, IS: 10086-1982, ASTM C496, BS1881, BIS 15658. Detailed specification mentioned in the long description.
LOAD FRAME FOR 500 KN - CTM AUTOMATIC-
This is an attachment to Automatic Compression Testing Machine of 1000 / 2000 / 3000 kN Capacity. The Pumping unit is shared by both the Load Frames. A valve is provided on the back of the Pumping unit to switch Flow of Hydraulic Oil either to 500 KN CTM Load Frame or to higher Capacity Load Frame. The attachment enable us test of Cement Cubes in addition to Concrete cubes without compromising the accuracy.
ELECTRONIC WEIGHING BALANCE-20 KG-1 GM-WITH INTERFACE TO CONNECT CTM
High Impact FRP Body, wide platform size 250 x 300 mm, with built in battery back up and with certificate of stamping from W&M department. Multi function and Auto calibration with external weight. We can also offer economic weighing balance having ABS body and small platform size of 200 x 250 mm.
