SIX CELL TOUCH SCREEN RCPT  WITH TEMPERATURE SENSING USING DAQ SYSTEM - WITH ACCESSORIES

SIX CELL TOUCH SCREEN RCPT WITH TEMPERATURE SENSING USING DAQ SYSTEM - WITH ACCESSORIES

SIX CELLS TOUCH SCREEN RCPT - WITH TEMPERATURE SENSING - USING DAQ SYSTEM - WITH ACCESSORIES
Model No: EIE-017-6

Six Cell Rapid Chloride permeability Apparatus with Eight channel DAQ systems and 7” size HMI Color Touch screen display, Complete with Vacuum Desiccator, Vacuum Pump & accessories.

Six CELL Rapid Chloride permeability Apparatus with Eight channel DAQ systems and 7” size HMI Color Touch screen display, Complete with Vacuum Desiccator with Vacuum Pump & accessories.


Specifications:

  1. DC power supply 0-60 volt 8 ampere with 3 digit LED display
  2. Four line LCD display to indicate the current in all the six cell’s current in milli ampere.
  3. Built in data acquisition system with PC interface software

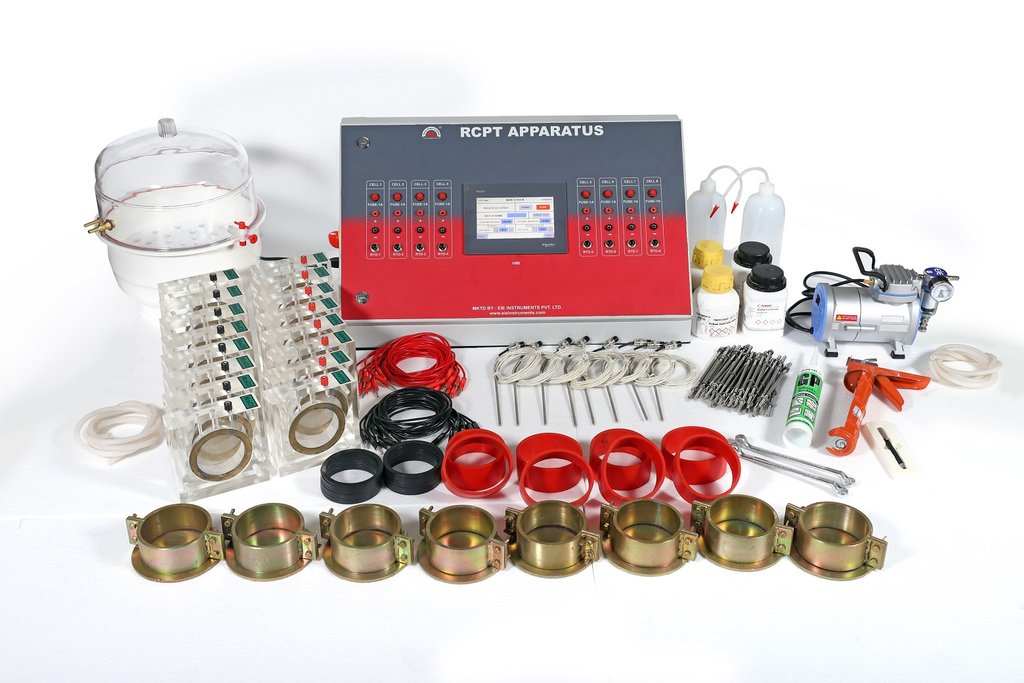

The total Supply includes the following components:

  1. SIX Cell RCPT apparatus, consist of six cells with PC interface software
  2. Acrylic Cells Machined as per ASTM C 1202 to hold the concrete specimens of 100 mm diameter - 6 sets
  3. Flexible cable 1 meter long with banana connectors- Red - 6 nos.
  4. Flexible cable 1 meter long with banana connectors- Black - 6 nos.
  5. RS232- USB port interface cable - 1 no.
  6. Software CD - 1 no.
  7. Stainless Steel Bolts - 24 Nos.
  8. Stainless steel washers - 48 nos.
  9. Stainless steel Nuts - 48 nos.
  10. RTV sealant - 1 tube
  11. GUN
  12. 300 mm vacuum desiccators. - 1 No.
  13. Vacuum pump - 1 No.
  14. Moisture trap with vacuum gauge - 1 No.
  15. Elastomeric Rubber Moulds for cylindrical specimens - 6 Nos.

Consumables:

  1. NaOH salt - 500 gram
  2. NaCl salt – 500 gram

Acrylic cell consists of the followings:

  1. Brass mess -88mm diameter - 1 no
  2. Brass plate -88mm diameter - 1 no
  3. Brass washer- 102 mm OD 88mm ID - 1 no
  4. Rubber washer 102mm OD 88 mm ID - 1 no
