THERMAL CONDUCTIVITY BY GUARDED HOT PLATE METHOD - FOR AAC BLOCKS - IS : 3346

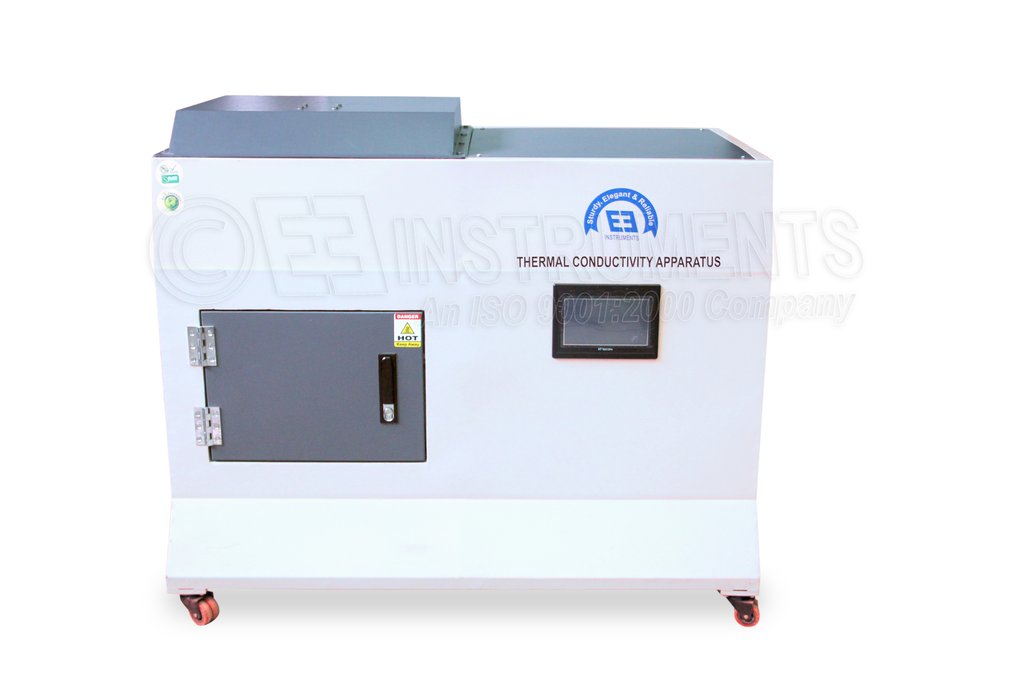

THERMAL CONDUCTIVITY BY GUARDED HOT PLATE METHOD FOR AAC BLOCKS

Model Number : EIE-7013

Measures the steady-state heat flux through flat specimens when their surfaces are in contact with solid, parallel boundaries held at constant temperatures. The guarded-hot-plate apparatus consists of a metered section and a primary guard, designed to create isothermal surfaces on the specimen faces, ensuring unidirectional heat flow. Procedure Involves placing the test specimen between a hot plate and a cold plate, establishing a steady-state temperature gradient, and measuring the heat flux through the specimen. Commonly used to evaluate the thermal insulation properties of materials in industries such as construction, manufacturing, and materials science.


Compliance Standards:

IS : 3346‑1966, ASTM C177


Brief construction details:

EIE ‑ Thermal Conductivity Apparatus is designed to determine Thermal Conductivities of insulating materials in the form of slabs. The Apparatus consists of main central heater sandwiched between the test specimens. Cooling plates are provided on the either side of the specimen. Single identical specimen are Clamped between heaters and cooling plate. Ring guard heater ensures Uni‑directional heat flow through specimen.


Salient Features : (For single specimen testing):

  1. EIE ‑ thermal conductivity test apparatus by guarded hot plate method is based on the steady‑state method and is able to measure 30 cm x 30 cm test samples having thickness ranging from a 5 cm to 10 cm.
  2. Design concept according to Indian Standard (IS : 3346‑1966) and Applicable ASTM Standard ASTM C177
  3. External body is manufactured from Mild steel material, which is powder coated in attractive shades.
  4. Specimen to be tested is placed in chamber such that it gets sandwiched between two heat flux sensors as per ASTM C177 guidelines.
  5. Unit is equipped with 5 different thermocouples for temperature measurement on both sides of the test specimen and guard heaters. (In total 10 thermocouples)
  6. Cooling is obtained by in‑built refrigeration system, which provides efficient cooling temperature as per test requirement.
  7. Emerson / Kirloskar make or equivalent refrigeration system (CFC Free)
  8. 7” touch screen HMI & PLC Operation
  9. Linear movement (UP & DOWN) for height adjustment with the help of linear actuator
  10. Facility to feed dimensions of the samples to calculate the K-value.
  11. Direct reading of K-value in w/m k (No further calculation required)
  12. High temperature fiber glass box Insulation (8 mm thick) along with glass wool bag Insulation around set‑up
  13. Complete panel mounted electrical controls and measurement. All control accessories are within reach.
  14. Operation on 230 Volts, 50 Hz, AC Supply
  15. Suitable for industrial applications such as thermal conductivity measurement of AAC Blocks.


Temperature Range

10 to 200° C

Thermal Resistance Range

0.1 ~ 8.0 m2K/W

Co-efficient of thermal conductivity

0.1 to 2 w/m k

Repeatability

0.5%

Accuracy

± 1-3 %

Refrigerant

R134A - CFC Free

Plate Temperature Control

Through mini-chiller system

Central Heater capacity

500 watts, sandwiched between two copper plates

Central heater dimensions

150 mm x 150 mm

Ring Guard Heater capacity

1500 watts between two copper plates

Chiller System

Cooling chamber with circulation arrangement

Test specimen size

30 x 30 x 10 cm3

Overall Dimensions

1170 X 740 X 1000 (L X W X D) mm

Weight (Approx.)

136 kg
