V FUNNEL TEST APPARATUS

V FUNNEL TEST APPARATUS

V FUNNEL TEST APPARATUS
Model No: CT-SCC-003

V Funnel is one of the apparatus of the SCC (Self Consolidating Concrete) test accessories. These tests are used to determine the flowability and passing ability of Self Consolidating Concrete (SCC) as defined in IS 1199:PART 6. Passing ability refers to the ability of SCC, under its own weight (without vibration), to flow into and completely fill the spaces within an intricate framework, containing obstacles such as reinforcement bars.

Compliance standard



IS 1199:PART 6


Application of V‑Funnel test method for SCC :


The V‑ Funnel flow time is the period in which, a defined volume of SCC (self‑consolidating concrete) needs to pass through a narrow opening and gives an indication of the filing ability of SCC, provided that blocking and or segregation do not take place. The flow time of the V‑Funnel test is to some degree related to the plastic viscosity.


Construction Details :

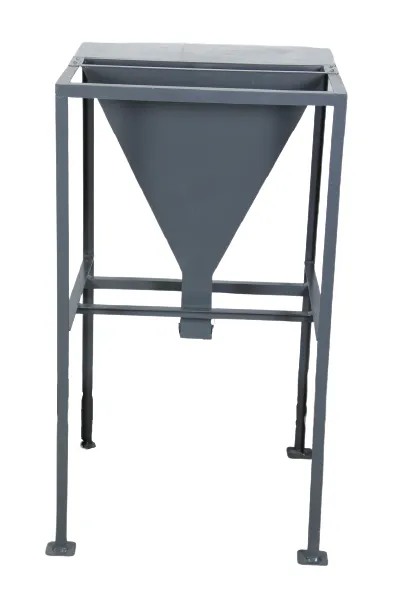

The apparatus consists of a V‑shaped funnel, which is supported on a Mild steel rigid frame. The frame and the funnel are spray painted or powder coated in attractive shades..


Essential Accessories at extra cost as per following :

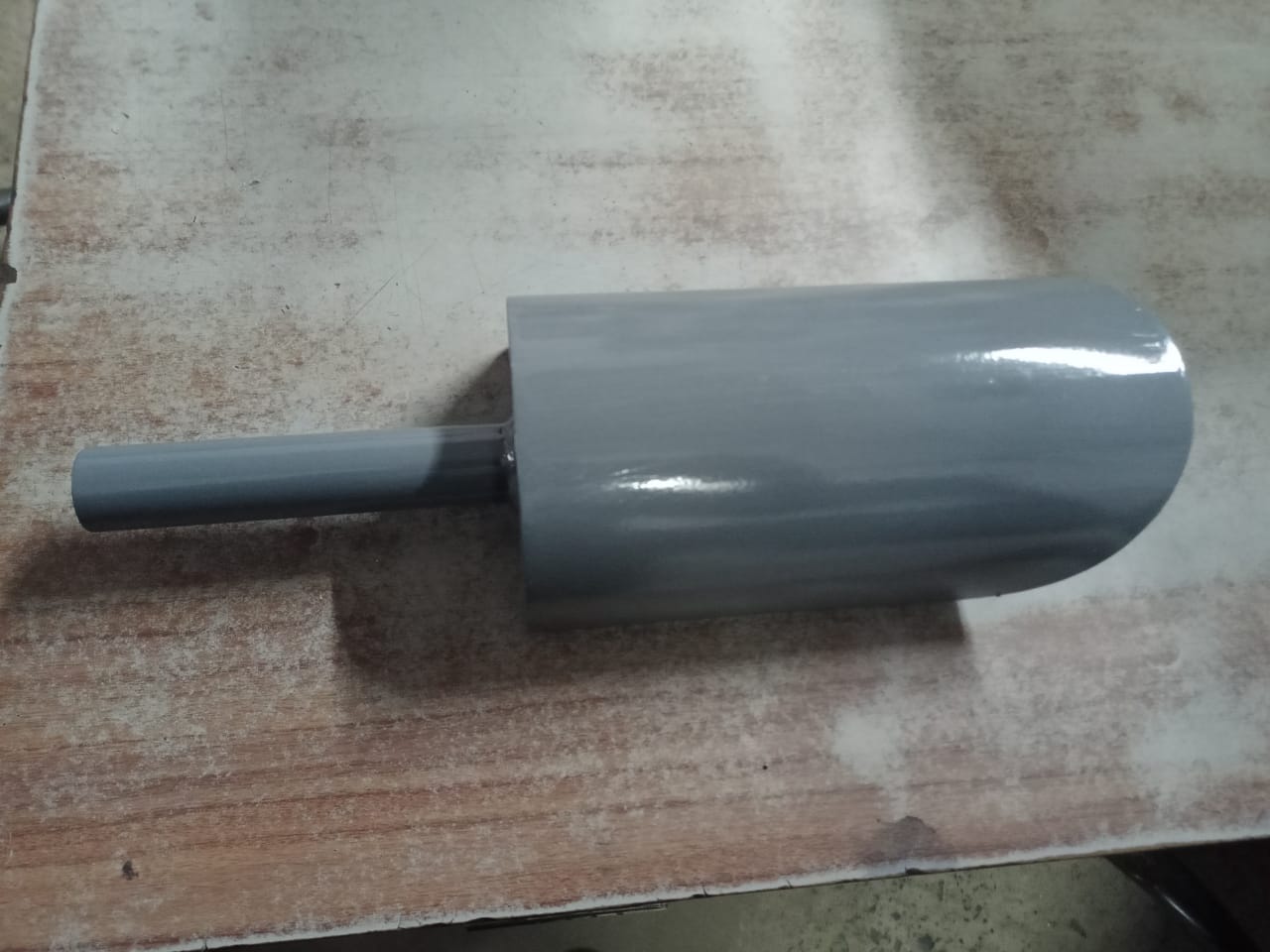

  1. Scoop
  2. Ruler

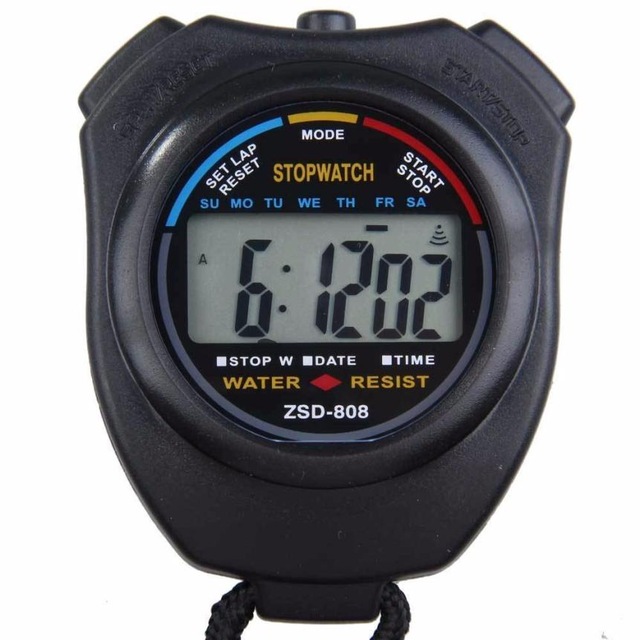

  3. Stopwatch
  4. Trowel
Overall Dimensions 570 X 570 X 1120(L X W X D) mm
