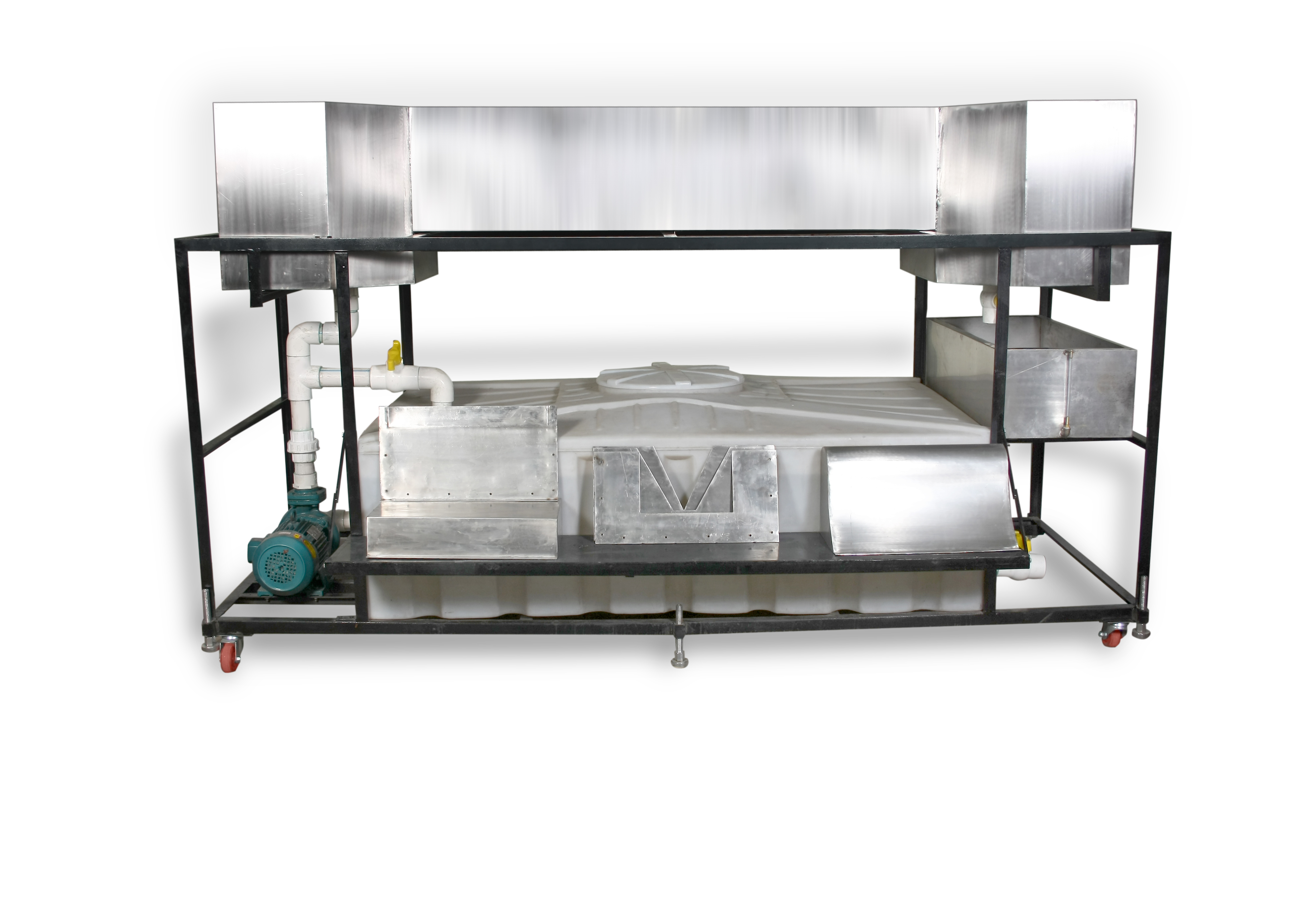

BIG NOTCH AND WEIR APPARATUS WITH SS TANK-VIPL-FM-7017

Notches or Weirs allow hydrologists and engineers a simple method of measuring the volumetric flow rate in small to medium-sized streams, or in industrial discharge locations.

1. Rectangular Notch

2. Triangular Notch

3. Trapezoidal Notch or Cipolletti Weir

4. Sharp Crested Weir

5. Broad Crested Weir

6. Ogee Weir Spillway

1. Single Weldless channel size of 2500 (L) x 500 (W) x 350 (H)

2. 1000 Ltrs Sump Tank of Plastic

3. 2 H.P. Centrifugal Monoblock Pump

4. Discharge Measurement using Watermeter or Venturimeter

5. Piping with necessary Valves and Fittings

6. Digital Stop Watch with 1/10 second Accuracy

7. Detailed Technical Manual and On-site Training
