METACENTRIC HEIGHT OF SHIP APPARATUS WITH S.S. TANK-VIPL- FM- 7005-

METACENTRIC HEIGHT OF SHIP APPARATUS WITH S.S. TANK-VIPL- FM- 7005-

Model Number : VIPL - FM - 7005

None


Fundamentals of Buoyancy, Metacenter and Metacentric Height are extensively used in Design and stability of Ships.

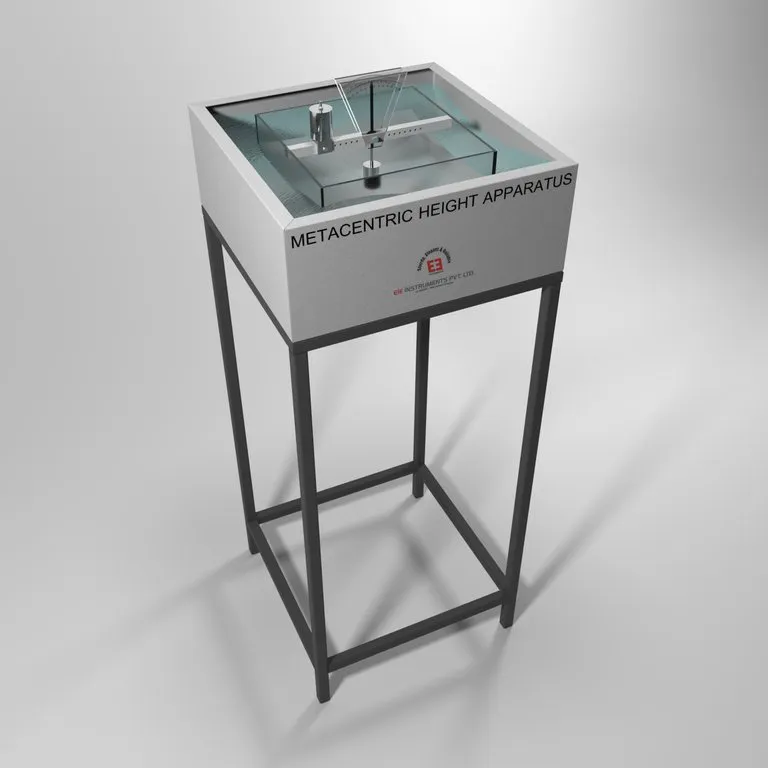

Apparatus consist of SS reservoir tank mounted on sturdy frame. A small ship model made of Perspex has a provision to put load on the  deck and has an arrangement to measure the inclination due to loading.
Optionally

experiment can be further modified to represent conditions as cargo ship and warfare ship (At extra cost)


Specifications:

  1.  Reservoir Tank Size: 500 X 500 X 200 mm ‑ S.S.304 powder coated
  2.  Ship Model Size: 230 X 350 mm (L X W) made of acrylic
  3.  Circular Weights: 6 Nos, made of brass
  4.  Graduated Arc for measuring tilt angle. made of brass
  5.  Detailed Technical Manual supplied. However, On‑site Training available at extra cost
