Model No: VIPL - FM - 7006

Minor losses associated with pipe flow in piping networks helps in determining the pumping power requirements, material and fittings selection. A good understanding of such losses helps engineers in designing optimum fluid distribution systems, process plants etc. Detailed Specification as follows:

Construction Details :

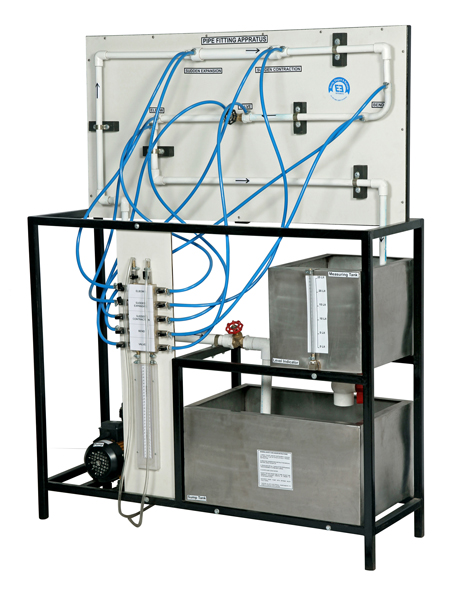

This apparatus is designed to introduce students to minor flow losses (Fittings) in Pipes. The following types of pipe fittings are generally provided with the apparatus



  • Elbow
  • Bend
  • Sudden Expansion
  • Sudden Contraction
  • Valve


A flow control valve permits variation of flow rate through the circuit. Pressure tapings are incorporated so that the head loss characteristics of each fittings may be measured. These tapings are connected to a differential manometer . The circuit and manometer are attached to a support framework.


Box Dimension 1000 x 500 x 1600 mm
U Tube manometer 150-0-150 (Mercury filled)
Number of Pipe 5 Nos
Sump tank capacity 75 liters
MOC of Sump tank SS 304 powder coated
Volumetric tank capacity 48 liters
MOC of volumetric tank SS 304 powder coated
Water Pump Monoblock type, 0 60 liter/min, 0.5 HP
Piping with necessary Valves and Fittings
Stop Watch Digital Stop Watch with 1/100 second Accuracy can be supplied at extra cost.
Manual Detailed Technical Manual supplied and On site Training can be arranged at extra cost.
