Construction Details :

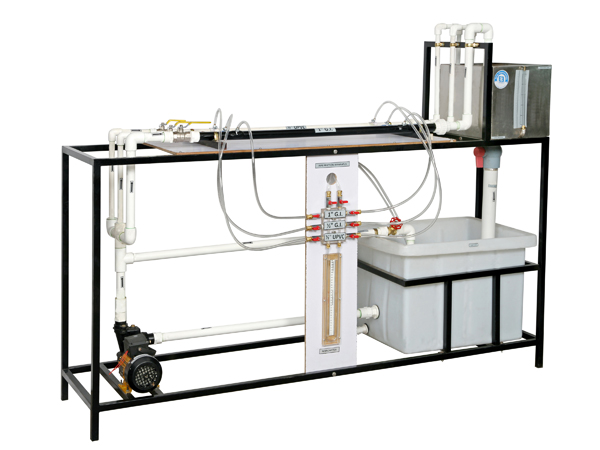

This apparatus is designed to introduce students to major flow losses (Frictional) in Pipes. The following types of test pipes are generally provided with the apparatus
- ½" S.S. PIPE
- ½" G.I. PIPE
- ½" ALUMINIUM. PIPE
A flow control valve permits variation of flow rate through the circuit. Pressure tapings are incorporated so that the head loss characteristics of each pipe may be measured. These tapings are connected to a manometer bank incorporating a manifold with air bleed valve. The circuit and manometer are attached to a support frame work.
|
Box Dimension |
2000 x 500 x 1400 mm |
|
U Tube manometer |
150-0-150 (Mercury filled) |
|
Number of Pipe |
3 Nos |
|
Test Length |
1 meters |
|
Sump tank capacity |
75 liters |
|
MOC of Sump tank |
SS 304 powder coated |
|
Volumetric tank capacity |
48 liters |
|
MOC of volumetric tank |
SS 304 powder coated |
|
Water Pump |
Monoblock type, 0 60 liter/min, 0.5 HP |
|
Piping |
with necessary Valves and Fittings |
|
Stop Watch |
Digital Stop Watch with 1/100 second Accuracy can be supplied at extra cost. |
|
Manual |
Detailed Technical Manual supplied and On site Training can be arranged at extra cost. |
