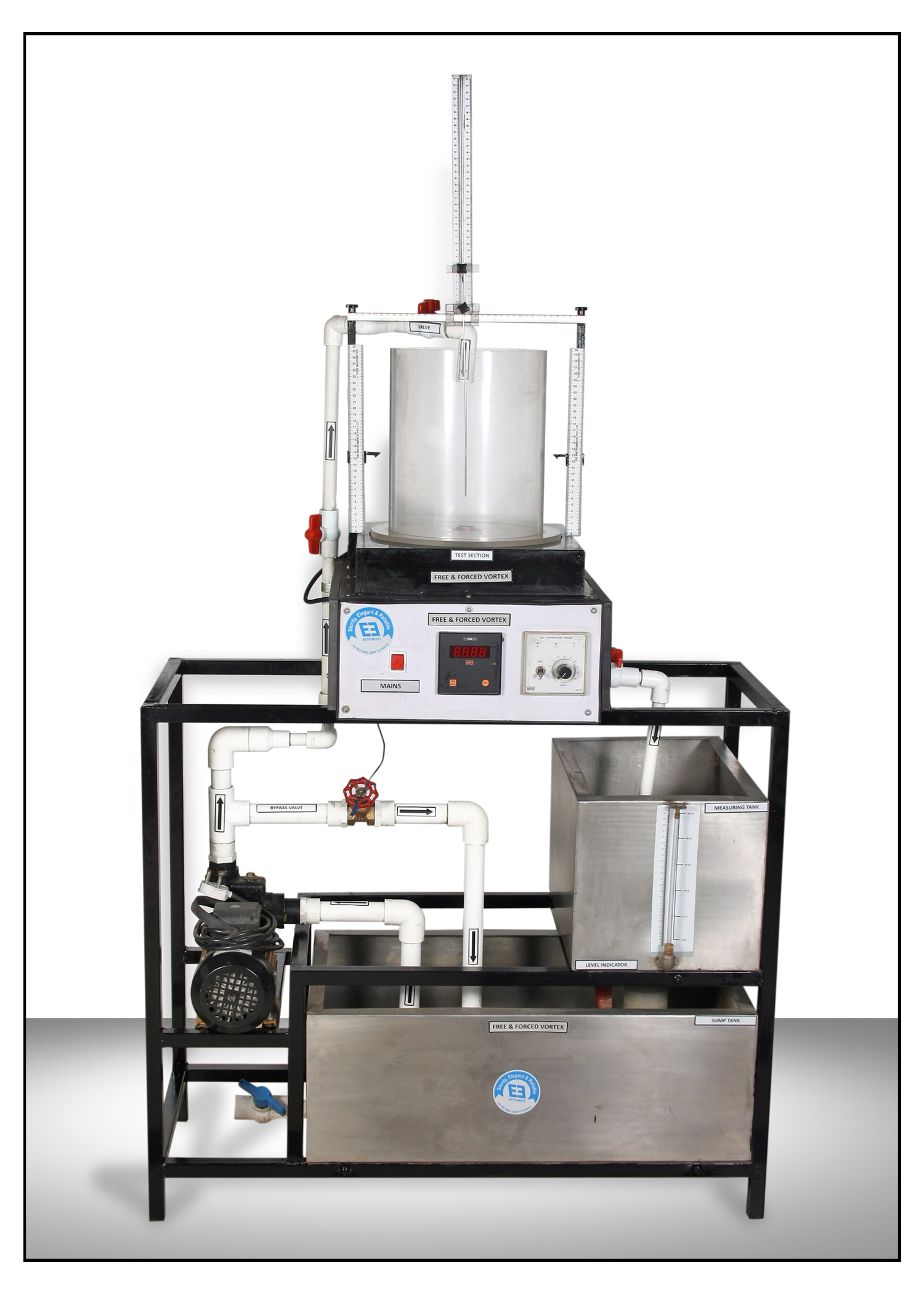

FREE AND FORCED VORTEX APPARATUS WITH SS TANK -VIPL-FPE-02

FREE AND FORCED VORTEX APPARATUS WITH SS TANK -VIPL-FPE-02

Model No: VIPL-FPE-02

Description of item is as per follow.

The spiraling motion of air or liquid around a center of rotation or vortex is an important natural phenomenon. The behavior study of vortex helps us understand electromagnetic fields, whirlpool, tornado and drag induced in sail. The apparatus helps students plot surface profiles of free and forced vortex. Forced vortex is generated with the help of external DC Motor where as free vortex can be studied by placing different diameter orifice at discharge to tank.

Specifications:

  • Box Dimensions: 1000 X 500 X 1500 mm
  • Revolving Tank Dia: 300 mm dia X 300mm height
  • DC Motor with Tyristor Drive
  • X-Y Co-ordinate Probe
  • No. Of Orifice: 2 Nos.(8mm and 10mm)
  • Sump tank capacity : 75 litres MOC: SS-304 powder coated
  • Volumetric tank capacity : 48 litres. MOC: SS-304 powder coated
  • Pump : Monoblock type 0.5 HP
  • Piping with necessary Valves and Fittings
  • Digital Stop Watch with 1/100 second Accuracy available at extra cost
  • Detailed Technical Manual supplied. However, On-site Training at extra cost
