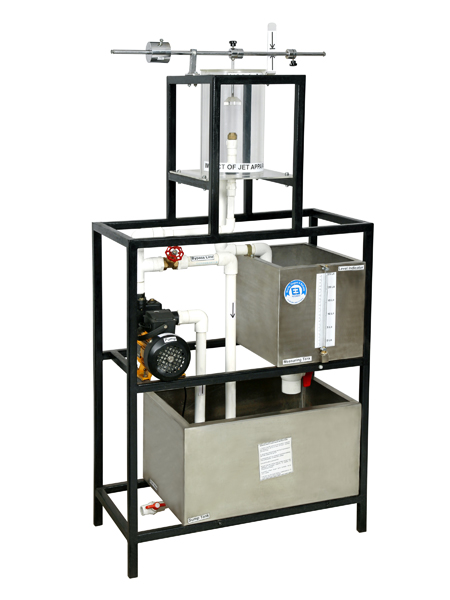

This equipment allows the measurement of force developed by a jet of water impinging upon a stationary object. Detailed Specification as follows:

Construction Details

The apparatus consist of a cylindrical acrylic vessel. Water is fed  through a nozzle and discharged vertically to strike a target  carried on a stem which extends through the cover. Force of the jet  is measured by the simple calculating moments about fixed fulcrum. Theoretically obtained forces are compared with practically  obtained forces through moments.


Set of Nozzle 6 mm & 8 mm (Brass)
Set of Vanes Hemispherical and Flat Plate (Optional Inclined)
Jet Collection Tank 200 mm Diameter & 300 mm Height
MOC of Jet tank Perspex
Sump tank capacity 75 liters
MOC of Sump tank S.S.304 powder coated
Box Dimension 1000 x 500 x 1500 mm
Measuring tank cap 48 liters
MOC of Measuring Tank SS 304 powder coated
Circulating Pump Monoblock type, 0 60 liter/min, Motor 0.5 HP
Piping with necessary Valves and Fittings
Stop Watch Digital Stop Watch with 1/100 second Accuracy can be supplied at extra cost
Manual Detailed Technical Manual supplied. However. On site Training at extra cost.
