APPARENT OPENING SIZE APPARATUS-(DRY SIEVE TEST APPARATUS)-(ASTM D4751, BS 6906, IS 14294)-(FOR GEOTEXTILE)

APPARENT OPENING SIZE APPARATUS-ASTM D4751

Model Number : GT-102RD

Complying with ASTM D4751, BS 6906 (Part 2), IS 14294. The complete test set up essentially requires Ro-Tap Sieve Shaker, Fine sieves of 200mm diameter, Clamping arrangement, Spherical Glass beads and Electronic Balance. Here we supply only Rotap Sieve shaker. Fine Sieves, Clamping arrangement, Glass beads and Electronic Balance are essential accessories to conduct the test and are supplied at extra cost.

  • More Information
  • Technical specification
  • Accessories
  • Spares
More Information
up-botton

Complies with following International Standards:

ASTM D4751, BS 6906 (Part 2), IS 14294, EN ISO 12956


Purpose:

A Geo-Textile specimen is placed in a sieve frame, and sized glass beads are placed on the Geo-Textile surface. The Geo-Textile and frame are shaken laterally so that the jarring motion will induce the beads to pass through the test specimen. The procedure is repeated on the same specimen with various size glass beads until its apparent opening size has been determined.


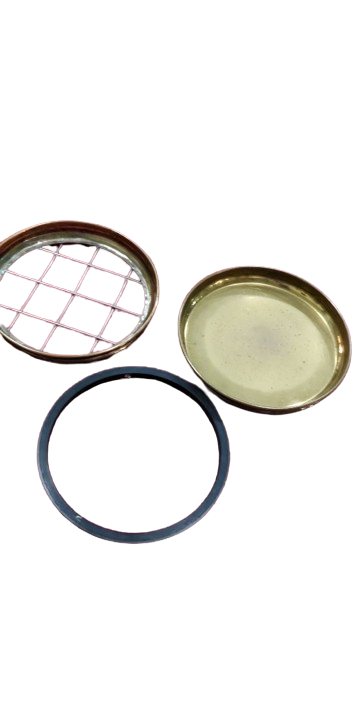

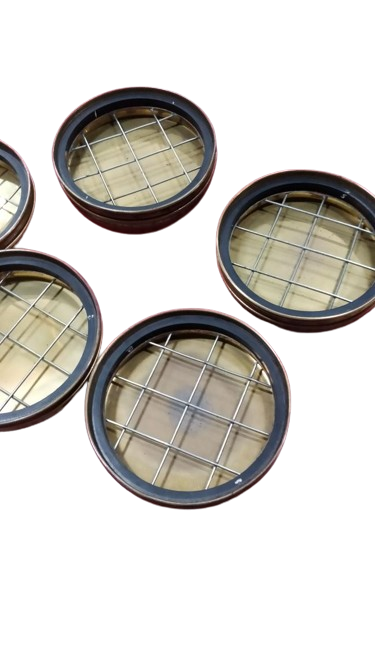

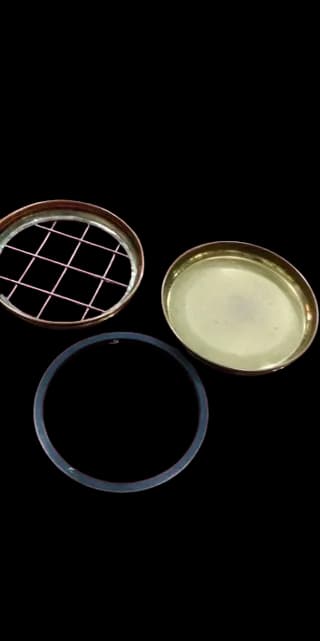

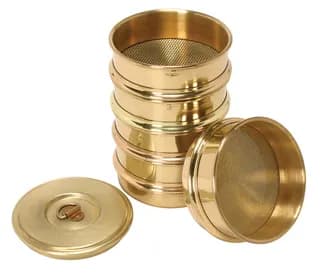

Details of complete Set-Up:

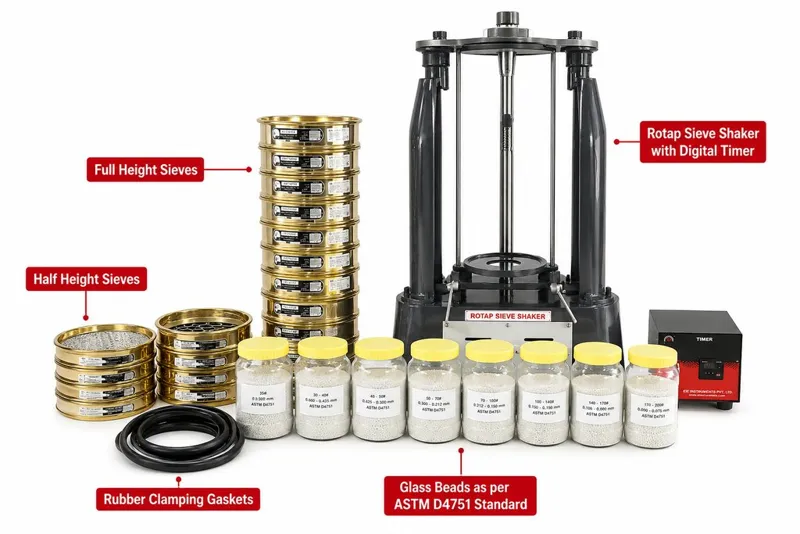

The complete test set up essentially requires Ro-Tap Sieve Shaker, Fine sieves of 200mm diameter, Clamping arrangement, Spherical Glass beads and Electronic Balance. Here we supply only Rotap Sieve shaker. Fine Sieves, Clamping arrangement, Glass beads and Electronic Balance are supplied at extra cost.


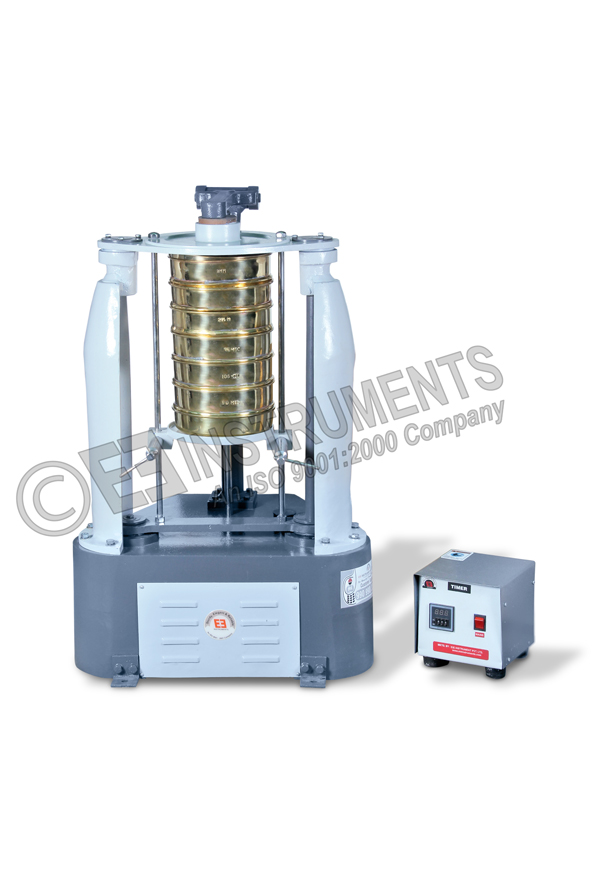

Ro-Tap Sieve Shaker:

To make process of sieving simpler and quicker, Rotap sieve shaker is useful. This produces circular shaking of the sieves. At the same time the sieves are tapped simultaneously. Produces Circular (280-300 RPM approx) and tapping (140-160 RPM approx) motion with a uniform mechanical action which ensures accurate and dependable test results.


Construction details:

  1. Robust & Heavy design
  2. Doesn't require special foundation
  3. Shaking in both the direction
  4. Tapping action from the top
  5. The mechanism for imparting circular action and tapping is permanently lubricated in a tank and is motorized.
  6. The shaker can accommodate up to 7 Nos Sieves of diameter 200mm (7 nos sieves + 1 set of Lid-Pan).
  7. Fitted with Digital time switch adjustable from 1-99 minutes.
  8. Suitable for operation on 230 volts, 50 Hz, single phase, AC Supply


Physical data of the machine:

  1. Height            : 960 mm approximately
  2. Length            : 485 mm approximately
  3. Width            : 610 mm approximately
  4. Unpacked weight   : 151 kg approximately


Note : Here we supply only Rotap Sieve shaker. Fine Sieves, Clamping arrangement, Glass beads and Electronic Balance are supplied at extra cost.
