ASTM D3787, ASTM D6797-MECHANICAL GRIPPING-BALL BURST STRENGTH TEST OF FABRIC

ASTM D3787, ASTM D6797-MECHANICAL GRIPPING-BALL BURST STRENGTH TEST OF FABRIC

ASTM D3787, ASTM D6797-MECHANICAL GRIPPING-BALL BURST STRENGTH TEST OF FABRIC
Model No: GT-111.8M

None
Compliance Standards:
ASTM D6797, ASTM D3787, IS 7016-1, ISO 9073-5

Applications:
Fabric Ball-bursting Strength Tester, used for testing the ball-bursting strength and expansion rate of high elongation strength material i.e. cotton fabrics, elastic fabrics, sock and glove products.

Procedure:

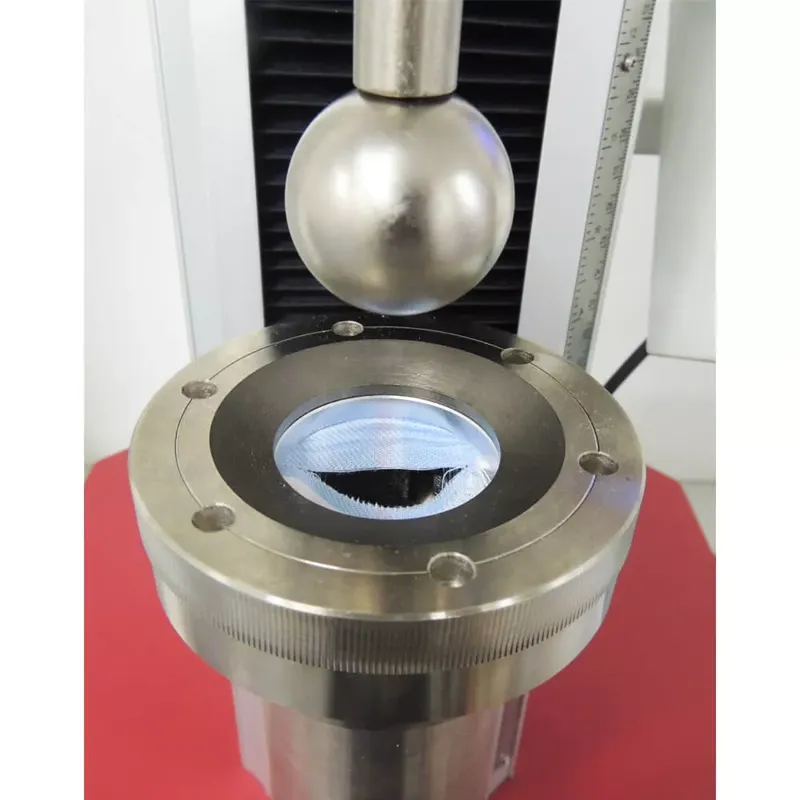

In this test a 25mm diameter steel ball is pushed through the stretched fabric and the force required to do so is recorded. The advantage of the test is that it can be carried out on a standard universal strength tester with a suitable attachment. There is also no limit to the amount a sample can be extended as there is with the diaphragm test.
Grip body Mild steel construction with chrome plated
Grip type Mechanical clamping device with wing nuts
Container inner diameter 44.5 mm
Probe diameter 25.4 mm
Probe Material Steel, Spherical Shape
RELEVANT STANDARD ASTM D3787, ASTM D6797
