ASTM D4833-HYDRAULIC GRIPPING-INDEX PUNCTURE TEST OF GEOMEMBRANE

Name: ASTM D4833-HYDRAULIC GRIPPING-INDEX PUNCTURE TEST OF GEOMEMBRANE
Rating: 4.4 (89 reviews)

Model Number : GT-111.5H

None

Compliance Standards:

ASTM D4833, IS 15907:2010 - Annex C

Applications:

To determine index puncture resistance of Geomembrane

Details

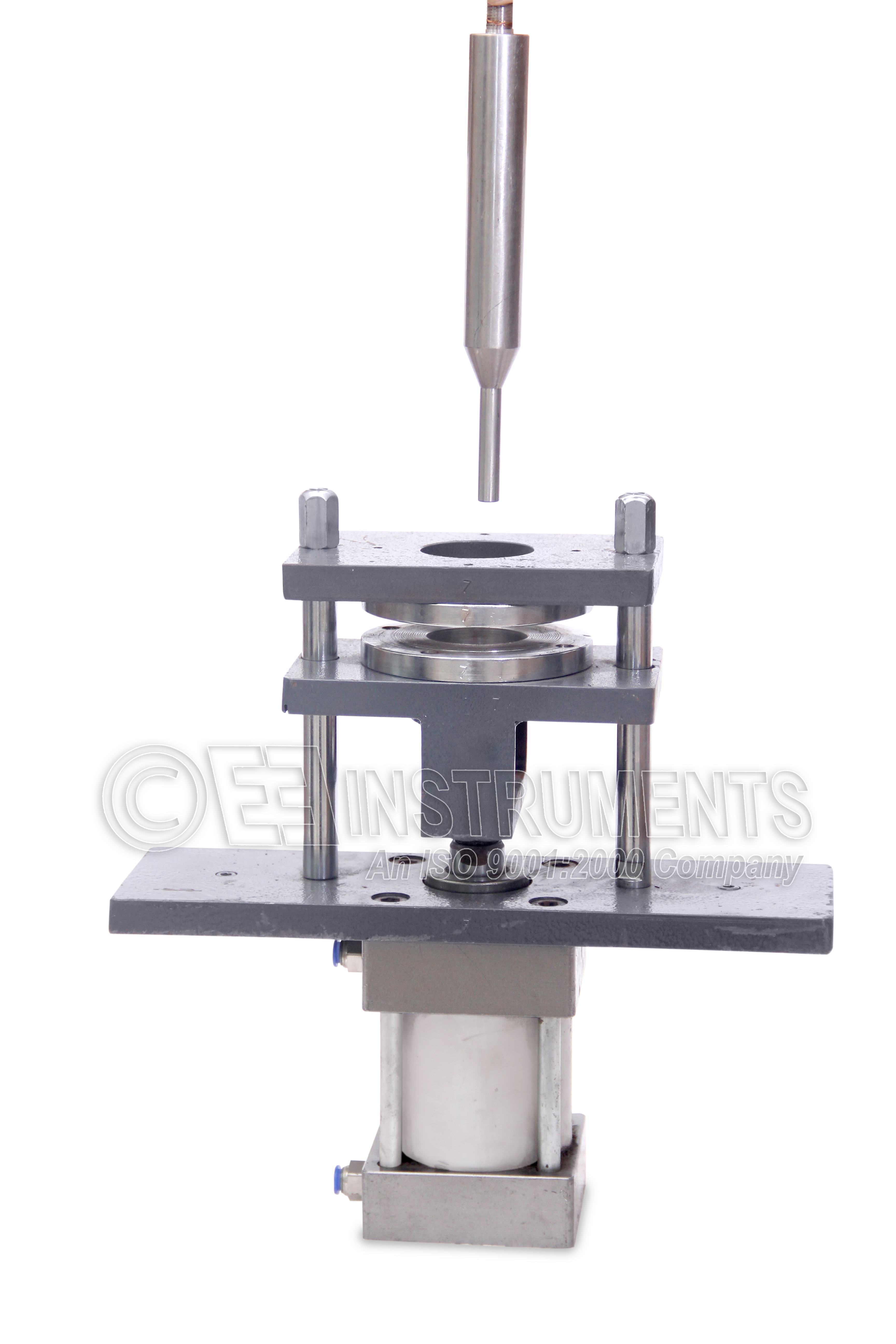

Puncture Fixture consists of following 2 main parts.
Probe diameter 8 mm
Lower Grip Sample Clamp
Hydraulic clamping device ensures slip-less and an easy method for securing the test specimen.
The top plate has a circular opening, where the probe penetrates the sample.
Grip is supported by 01 No hydraulic cylinder
Hydraulic cylinders is operated by separate release / hold control panel.
Supplied complete with hydraulic Piping, Release/Hold Levers

Note:

Periodic cleaning and maintenance of Power pack and piping is necessary for smooth and uninterrupted operation.

Grip body	Mild steel construction with chrome plated
Grip type	Hydraulic clamping device with 01 Hydraulic cylinder
Container diameter	50 mm
Probe diameter	8 mm
Relevant Standards	ASTM D4833
