Astm D4833-Machanical Gripping-Index Puncture Test Of Geomembrane

ASTM D4833-MECHANICAL GRIPPING-INDEX PUNCTURE TEST OF GEOMEMBRANE

Model Number : GT-111.5M

Compliance Standards:

ASTM D4833, IS 15907:2010 - Annex C

Applications:

To determine index puncture resistance of Geomembrane

Details:

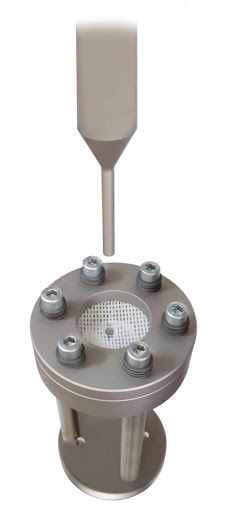

Puncture Fixture consists of following 2 main parts.

Probe
Lower Grip Sample Clamp
Mechanical clamping device provides an easy method for securing the test specimen.
The top plate has a circular opening where the probe penetrates the sample.
Index Puncture Strength of Geomembrane and related Products Using 8-mm Probe

ASTM D4833-MECHANICAL GRIPPING-INDEX PUNCTURE TEST OF GEOMEMBRANE

Grip body	Mild steel construction with chrome plated
Grip type	Mechanical clamping device with wing nuts
Container inner diameter	45 mm
Container External diameter	100 mm
Probe diameter	8 mm
Probe Material	Steel
RELEVANT STANDARD	ASTM D4833
